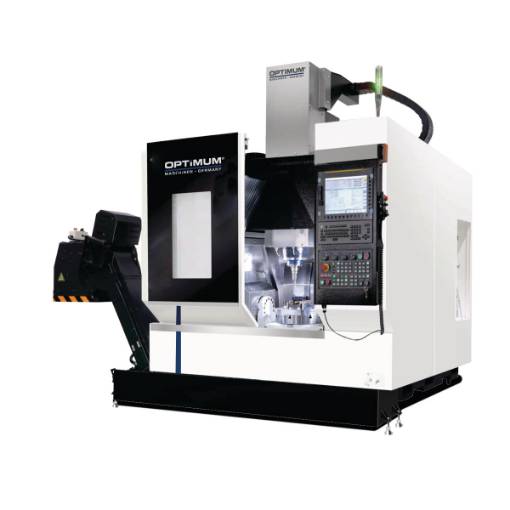

CNC milling machine OPTImill FU 450

SKU: 51-3522100

Manufacturer part number: 3522100

GTIN: 4030635051166

Heavy-duty design
High productivity
Telescopic guideway cover
Precision-ground, preloaded high-performance ball screws for high rapid traverse speeds
Spindle mounted in P5 precision bearings and permanently lubricated
High-torque servo drives in all five axes
Precision linear guide
Heidenhain glass scales for higher accuracy
High rapid traverse speed of up to 40 m/min.
C-axis with torque motor for maximum speed and lifetime accuracy
A-axis with worm gear for high torque during tilting operations
Z-axis feed motor reinforced
The portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
Tool changer double-arm gripper with 40 tool positions included as standard
Coolant system with 380 liter coolant tank with chip flushing system and cleaning gun
Automatic central lubrication
RJ45 plug connection, USB and 230 V power connection
Additional USB interface on the control panel
Water circuit cooling unit for the main spindle and main spindle motor
Chip conveyor in belt design ensures efficient chip removal
Chip trolley
Collision avoidance software for collision avoidance
Internal spindle cooling 40 bar with internal tank (an extraction unit is required)
Air conditioning
Encoder for A and C axis
TSC Thermal spindle compensation
DCM Dynamic collision monitoring
EMC (electromagnetic compatibility)
Two-year SIEMENS repair service contract included. Extension of the SIEMENS additional package repair service contract (RSV) possible
