Combination pliers

Tehnilised andmed:

• Tüüp: näpitsad
• Pikkus: 200 mm
• Materjal: kvaliteetne tööriistateras
• Käepide: ergonoomiline, kahekomponentne

Kasutusala:

Sobivad juhtmete, naelte ja väiksemate detailide haaramiseks, painutamiseks ning eemaldamiseks, samuti üldisteks remondi- ja paigaldustöödeks.

Tehnilised andmed:

• Tüüp: universaalsed näpitsad
• Pikkus: 180 mm
• Mehhanism: 40% FS (väiksem vajalik pigistusjõud)
• Materjal: kroom-nikkelteras (CrNi)
• Lõuad: induktsioonkarastatud
• Käepide: ergonoomiline, kahekomponentne, libisemiskindel

Kasutusala:

Sobivad juhtmete, kaablite ja väiksemate detailide haaramiseks, painutamiseks ning lõikamiseks erinevatel paigaldus- ja remonditöödel.

Set Contents:

• 13 86 200 – Pliers for electrical installation (Ø up to 15 mm / 50 mm²)
• 16 95 01 SB – ErgoStrip® universal stripping tool (Ø 8.0–13.0 mm)
• 70 06 160 – Diagonal cutter (160 mm)

Applications:

Stripping, cutting, bending, and installing cables

Ideal for everyday electrical work

Highlights:

ErgoStrip® for fast and precise stripping

Multifunctional pliers for gripping and cutting cables

Powerful diagonal cutter for all-round use

Robust combination pliers for gripping, bending, and cutting wires. Features induction-hardened cutting edges for soft and hard wire, serrated gripping zones, and durable forged tool steel construction with multi-component comfort grips.

• VDE-tested pliers for electrical work, certified to IEC 60900 (up to 1000 V AC / 1500 V DC).
• Requires 35% less effort compared to conventional combination pliers thanks to optimized leverage.
• For easy cutting, powerful gripping, bending, and pulling.
• Long cutting edges for thicker cables.
• Gripping zones for flat and round material – versatile use.
• Precise, minimal gap between jaws ensures optimal cutting performance.
• Cutting edges additionally induction-hardened, hardness approx. 63 HRC.
• Made of high-grade special tool steel, forged and multi-stage oil-hardened.
• Chrome-plated head, multi-component VDE-insulated handles.

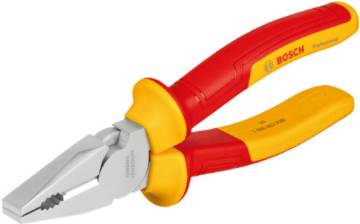

Technical Specifications:

• Length: 180 mm
• Weight: approx. 247 g
• Cutting capacities:



    Hard wire: Ø 2.5 mm

    Piano wire: Ø 2.0 mm

    Copper cable (multi-stranded): Ø 11.5 mm / 16 mm²

Standards: DIN ISO 5746, DIN EN 60900, IEC 60900

Compliance: REACH (does not contain SVHC), RoHS not applicable

VDE-tested pliers for electrical work, certified to IEC 60900 (up to 1000 V AC / 1500 V DC).

Requires 35% less effort compared to conventional combination pliers thanks to optimized leverage.

For cutting, gripping, bending, and pulling.

Long cutting edges for thicker cables.

Gripping zones for flat and round material – versatile use.

Precise, minimal gap between jaws ensures optimal cutting performance.

Cutting edges induction-hardened, hardness approx. 63 HRC.

Made of high-grade special tool steel, forged and multi-stage oil-hardened.

Chrome-plated head, multi-component VDE-insulated handles.

Technical Specifications:

• Length: 200 mm
• Weight: approx. 335 g
• Cutting capacities:


Hard wire: Ø 3.0 mm

Piano wire: Ø 2.5 mm

Copper cable (multi-stranded): Ø 13 mm / 25 mm²

Standards: DIN ISO 5746, DIN EN 60900, IEC 60900

Compliance: REACH (does not contain SVHC), RoHS not applicable

Applications:

Ideal for electrical installations, maintenance, and industrial environments.

Versatile combination pliers for gripping, bending, and cutting wires. Features induction-hardened cutting edges for soft and hard wire, serrated gripping zones, and durable forged tool steel construction with plastic-coated handles.

Versatile combination pliers with gripping zones for flat and round material.

Suitable for gripping, bending, pulling, and cutting.

Long cutting edges for thicker cables.

Cutting edges induction-hardened, hardness approx. 60 HRC.

Made of special tool steel, forged and multi-stage oil-hardened.

Head polished, pliers black atramentized for corrosion protection.

Handles: ergonomic multi-component grips.

Technical Specifications:

• Length: 180 mm
• Weight: approx. 254 g
• Cutting capacities:

Medium-hard wire: Ø 3.4 mm

Hard wire: Ø 2.2 mm

Copper cable (multi-stranded): Ø 12 mm / 16 mm²

Standard: DIN ISO 5746

Compliance: REACH (does not contain SVHC), RoHS not applicable

Gripping zones for flat and round material – suitable for versatile use.

For gripping, bending, pulling, and cutting.

Long cutting edges for thicker cables.

Cutting edges additionally induction-hardened, hardness approx. 60 HRC.

Made of special tool steel, forged and multi-stage oil-hardened.

Head polished, pliers black atramentized for corrosion protection.

Handles: ergonomic multi-component grips.

Technical Specifications:

• Length: 200 mm
• Weight: approx. 322 g
• Cutting capacities:

Medium-hard wire: Ø 3.8 mm

Hard wire: Ø 2.5 mm

Copper cable (multi-stranded): Ø 13 mm / 16 mm²

Standard: DIN ISO 5746

Compliance: REACH (does not contain SVHC), RoHS not applicable

Compact combination pliers for gripping, bending, and cutting wires. Features induction-hardened cutting edges for soft and hard wire, serrated gripping zones, and durable forged tool steel construction with ergonomic multi-component handles.

Durable combination pliers for gripping, bending, and cutting wires. Features induction-hardened cutting edges for soft and hard wire, serrated gripping zones, and robust forged tool steel construction with ergonomic multi-component handles.

Heavy-duty combination pliers for gripping, bending, and cutting wires. Features induction-hardened cutting edges for soft and hard wire, serrated gripping zones, and robust forged tool steel construction with ergonomic multi-component handles.

Powerful combination pliers with pointed jaws for installation and repair work.

Handy for use in confined spaces thanks to slim head design and anti-twist pointed jaws.

Gripping surfaces with special convex contour for secure grip on flat parts.

Milled groove in gripping area for holding and pulling small parts such as nails, pins, and bolts.

Easy cutting thanks to high leverage joint.

Cutting edges suitable for soft, medium-hard, and hard wire.

Cutting edges induction-hardened, hardness approx. 61–64 HRC.

Made of high-grade special tool steel, forged and multi-stage oil-hardened.

Technical Specifications:

• Length: 185 mm
• Weight: approx. 213 g
• Cutting capacities:

Medium-hard wire: Ø 3.8 mm

Hard wire: Ø 3.0 mm

Copper cable (multi-stranded): Ø 13 mm / 25 mm²

Finish: black atramentized, polished head

Handles: plastic-coated

Standard: DIN ISO 5746
