Condensate drain (timed) ZKA 16

Advantages of DRYPOINT eco control

• Integrated DRYPOINT M Plus solution: filtration and dryer in a compact form, as well as condensate drain integrated
• Filtration on the spot in the treatment chain where the highest efficiency is achieved
• Easy maintenance / replacement of filter element as with a filter
• Application-specific degree of dryness can be selected
• Consistent compressed air quality under fluctuating operating conditions
• Energy saving through minimization of purging air consumption for actual amount of useful air and degree of drying
• Power evaluation via LED, forwarding via current output 4 … 20 mA possible
• User-friendly: Easy to use, test functions, error messages
• Concept based on the fail-safe principle, error message can be picked up via potential-free contact

Functionality of the DRYPOINT® M eco control

Based on the measurement result from the sensor, the control software decides in defined cycles whether and how long the full amount of purge air has to be provided to achieve and stabilize the required degree of dryness. This process is implemented by means of a targeted clocking of a solenoid valve. In each cycle, the duration of the two process sections described below varies in order to keep the degree of drying within the specified tolerance range.

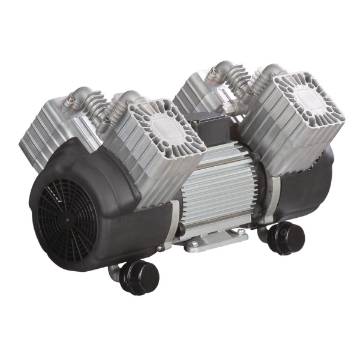

• Air flows directly through the cylinder and provides effective cooling
• Very smooth running and extremely quiet
• Low speed and thus long service life
• Compressor design with movable piston on connecting rod for high efficiency and long service life

• Compressor design with movable piston on the connecting rod forr high efficiency and long service life
• very smooth running and extremely quiet
• long service life due to low speed
• Maximum mechanical efficiency
• No transmission elements
• Air flows directly through the cylinder for effective cooling
• Highly efficient cooling air fan
• front and additional cooling for maximum durability
• reed valves for optimum efficiency
• anti-corrosive surface treatment

• Compressed air filters are used for highly efficient removal of solid particles, water, oil, aerosols, hydrocarbons, odors and vapors from compressed air systems.
• To achieve the required quality of compressed air, filters that gradually remove all types of solid and liquid contaminants from the compressed air must be installed in the compressed air line
• Your advantages through better quality compressed air:
• Safe filtration of both liquids such as water and aerosols as well as particles, dust and gases
• Better working and production conditions
• Optimum protection of connected tools and machines
• Improved product quality through reduction of rejects
• Protection of the compressed air system against contamination
• Increase of productivity by reduction of instant maintenance

• for separating solid contaminants up to 0.01μm
• Residual oil aerosol content up to 0.01 mg / m³ at 20 ° C and 1 bar
• Operating temperature 1.5 to 65 ° C
• absolute compressed air quality according to ISO 8573-1
• for safe separation of condensate and particles
• complete with filter element and float valve

• Robust features and top quality
• Fully automatic on-off operation
• With all safety features
• Fully wired
• From 7.5 kW standard with automatic star-delta switch
• Fifteen-year rust-proof warranty on inside and outside hot-dip galvanized compressed air tank

Quality electric motor

• High quality electric motor with motor protection switch
• Start-up capacitor and start-up relief valve for easy start-up
• As standard with phase inverter for easy manual reversal of the direction of rotation

Compressed air compression via high-performance aggregate HOS

• The start-up relief valve ensures a light, pressureless start
• The two-cylinder high-performance cast iron unit and the low speed warranty a particularly quiet and low-vibration operation ; this ensures a long service life through minimized wear
• Optimal lubrication of the compressor for long service life and reliability
• Equipped with high-quality intake filter
• Aftercooler with large cooling fins causes low boiler inlet temperature and less humidity in the compressed air to protect the compressed air tools
• additionally with intercooler to the aftercooler
• Corrosion-free valve plates for improved heat dissipation and longevity of the compressor.
• Optimal cooling of the compressor due to large Fan and cooling air guide on the cylinder
• Sturdy belt guard made of metal for optimum protection of the components and for high user safety
• No vibration breakage of the compressed air supply into the boiler due to flexible armored hose line with heat protection

High-quality drive belt

• Powerful and economical drive
• The toothed drive belt makes it easier to start, improves smoothness and power transmission, and reduces power consumption by up to 30%
• Sturdy metal belt guard

Service block operation

• Equipped with a high-quality CONDOR push button switch with a robust push button function for fully automatic on / off operation
• Air extraction on the maintenance block via a comfort -Safety quick coupling
• On the maintenance block only fixed screw connections, no hose connections

High-quality boiler with durable rust protection

• AIRCRAFT was the first manufacturer to do so The compressors of the AIRPROFI series are equipped as standard with internal and external hot-dip galvanized boilers. Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank.
