Crimping pliers

Combined tool for automatic wire stripping and pressing terminals.

Suitable for insulated and non-insulated terminals.

Pressing range: 0.5 – 2.5 mm².

Self-adjusting mechanism for wire diameter – fast and precise.

Integrated cutter for cable cutting.

Ergonomic multi-component handles for comfort.

Technical Specs:

• Length: 180 mm
• Weight: approx. 190 g
• Compliance: DIN standards.

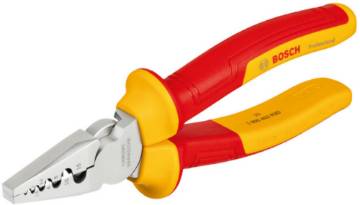

Hõivatud professionaalina vajad tööriistu, mida on lihtne kasutada ja mis vastavad kõikidele nõuetele. Kasutage kaitsevõrude ja poolümarate profiilide pressimiseks Bosch Professional VDE presstange, et ühendada need muhvide ja elektrijuhtidega – ka siis, kui võite tahtmatult puutuda vastu voolu all olevaid komponente.
See standardile vastav tööriist on isoleeritud termoplastist polüuretaankihiga (TPE). Seda on testitud kuni 10 000 voldiga ja sellele on antud vastavalt standardile DIN EN/IEC 60900 1000 voldise kaitse VDE-sertifikaat.
VDE presstangid on mugavad ja mitmekülgsed, neid saab reguleerida üheksas astmes ning sobivad 0,25 mm⊃2; kuni 16 mm⊃2; kaitsevõrude kokku pressimiseks.
Vastupidavad presstangid on valmistatud tugevast kroomvanaadiumterasest Bosch Professional tootevalikusse lisatud VDE käsitööriistad vastavad kõigile Boschi kvaliteedinõuetele.

Kasutage kaitsevõrude ja poolümarate profiilide pressimiseks tugevaid presstange, et ühendada need muhvide ja elektrijuhtidega – ka siis, kui võite tahtmatult puutuda vastu voolu all olevaid komponente.
Tööriistal on ergonoomiline kuju ja pehmendustega käepide.

Kaal: 0,26 kg
Pikkus: 180 mm
Töövahemik: 0,25-16 mm⊃2;

Supplied in a TANOS MINI-systainer® solid plastic case.

T-Loc fastener for one-handed operation: open or close with one turn, connect to another systainer®.

Quick access to contents even when connected.

Two stackable plastic inserts with 6 trays each for connectors.

Includes:

• Automatic insulation stripper Knipex Multistrip 10 (12 42 195) – stripping range 0.03–10 mm².
• Crimping pliers Knipex PreciForce (97 52 36) – for insulated terminals and plug connectors (0.5–6 mm²).
• Assortment of standard cable connectors: ring terminals, blade terminals, insulated butt connectors (red, blue, yellow) for cables 0.5–6 mm².

Technical Specifications:

• Dimensions: 265 × 170 × 68 mm
• Weight: approx. 1.53 kg
• Compliance: REACH (contains SVHC), RoHS not applicable

• Material: Chrome‑vanadium electric steel, oil‑hardened surface
• Length: 195 mm
• Weight: 387 g
• Crimp capacity: 0.1–1.5 mm² (AWG 26–16), 4 crimp profiles
• 20° angled head ensures better access in confined spaces
• Toggle lever mechanism for fatigue‑reduced repetitive crimps

• Püsivalt kõrge pressimiskvaliteet tänu täppislõugadele ja põrkemehhanismile (vabastatav)
• Presslõuad ei ole vahetatavad
• hea käsitseda tänu sobivale käepideme asendile, madalale kaalule, kompaktsele disainile ja ergonoomilise kujuga käepidemetele
• optimaalne jõuülekanne tänu ülekandemehhanismile võimaldab minimaalset jõupingutust
• tööriistad on tehases täpselt seadistatud (kalibreeritud)

• Püsivalt kõrge pressimiskvaliteet tänu täppislõugadele ja põrkemehhanismile (vabastatav)
• Presslõuad ei ole vahetatavad
• hea käsitseda tänu sobivale käepideme asendile, madalale kaalule, kompaktsele disainile ja ergonoomilise kujuga käepidemetele
• optimaalne jõuülekanne tänu ülekandemehhanismile võimaldab minimaalset jõupingutust
• tööriistad on tehases täpselt seadistatud (kalibreeritud)

Technical Specifications:

• Length: 190 mm (7½″)
• Weight: 345 g
• Specifically designed for RJ45 Western plugs (8P8C)
• Dimensions: ~190 × 64 × 26 mm

• Supports RJ11/12 (6-pole, 9.65 mm) and RJ45 (8-pole, 11.68 mm) connectors.
• Parallel pressing mechanism ensures precise and even pressure for high-quality pressing.
• Integrated ratchet lock with automatic release enables consistent, repeatable pressing.
• Extended design includes a length cutter and stripping knife for ribbon (6/12 mm) and round cables.

• Professional crimping pliers for Western plugs (RJ 11/12 – 6 poles, 9.65 mm; RJ 45 – 8 poles, 11.68 mm).
• Includes length cutter and stripping knife designed for flat, unshielded telephone cables (6 mm and 12 mm).
• Ensures precise crimping with parallel compression, and consistent, high crimping quality thanks to an integrated locking mechanism (unlockable).
• Lever-action design reduces fatigue during use.
• Also equipped with a cutter for round cables.
• Material: chrome–vanadium special steel, oil-hardened; head is burnished; grips are multi-component. Dimensions: 190 × 76 × 24 mm; weight ≈ 295 g.
• Compliance: REACH (free from SVHC); RoHS not applicable

• Lightweight and durable (478 g, length 220 mm), made of chrome-vanadium steel, oil-hardened.
• PreciForce® technology ensures precise and consistent crimping.
• Suitable for non-insulated cable lugs and connectors according to DIN standards.
• Crimping range: 0.5–10 mm² (AWG 20–8).
• Automatic lock and release mechanism, ergonomic multi-component grips.

Self-adjusting pressing tool for wire ferrules according to DIN 46228 parts 1 + 4.

Pressing range: 0.08 – 6 mm² (AWG 28 – 10).

Automatically adapts to ferrule size for precise and secure connections.

Square pressing profile for optimal contact in terminal blocks.

Integrated lever mechanism reduces hand force for comfortable operation.

Ergonomic multi-component handles for safe grip.

Technical Specs:

• Length: 180 mm
• Weight: approx. 365 g
• Compliance: DIN 46228 (Parts 1 + 4).

• Capacity: 0.5–6.0 mm² (AWG 20–10)
• Crimping positions: 1
• Length: 180 mm × Width: 50 mm × Thickness: 13 mm
• Weight: approx. 209 g
• Surface finish: polished head, plastic-coated handles
• Compliance: REACH-compliant (no SVHC); RoHS not applicable

•  For data cables in telecommunication and networks
• For Western connectors type RJ10, RJ11/12 and RJ45
• Long design with length cutter and stripping knife for unshielded ribbon telephone cables
• Quick cutting and stripping of CAT-cables with high-quality blades
• Precise crimping process thanks to parallel crimping
• Repetitive, high crimping quality due to ratchet mechanism (unlockable)
• Force magnified by lever action to ensure fatigue-free working

• Light and slim design for easy handling.
• Also available as VDE version.
• Easy crimping thanks to optimized leverage and transmission ratio.
• For crimping wire ferrules according to DIN 46228 parts 1 + 4, covering sizes from 0.25 to 16 mm².
• Crimping in marked half-round dies ensures reliable connections between the sleeve and conductor.
• Features 9 particularly deep crimping dies with conical side faces for secure and precise crimps.
• Made of special tool steel, forged and oil-hardened for durability.
• Handles: plastic-coated for comfort.
• Head: polished finish.

Technical Specifications:

• Length: 180 mm
• Weight: approx. 205 g
• Crimping range: 0.25 – 16 mm² (AWG 24 – 6)
• Number of crimping positions: 9
• Compliance: REACH (does not contain SVHC), RoHS not applicable

Applications:

• Ideal for electrical installations, automotive wiring, IT systems, and domestic electronics.
• Ensures standard-compliant crimping for ferrules in various environments.
