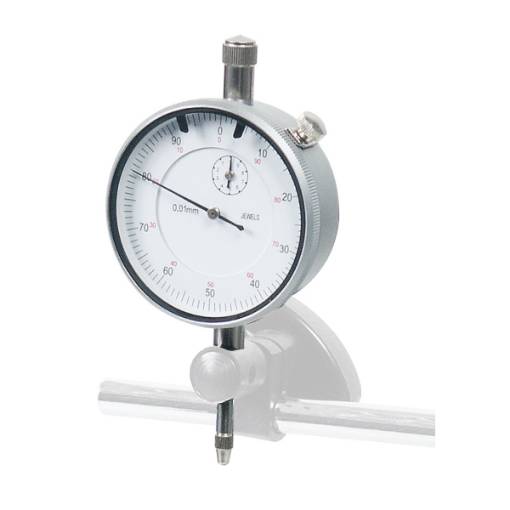

Dial gauge

SKU: 51-3385090

Manufacturer part number: 3385090

GTIN: 4030635002199

Accuracy according to DIN 878
Metal housing matt chrome-plated
Clamping shaft 8 mm
Graduation 0.01 mm
Measuring range 10 mm
Outer ring with two adjustable tolerance marks
Rotatable over the outer ring, for easy zero position

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Old price: 31.38€

Price: 28.32€

Qty:

i h

Availability: In stock

Hankija ladu

Laagri

On request: expected lead time 7 days

Mustamäe

On request: expected lead time 7 days

Approximate monthly installment payment

Period

Prepayment

Monthly

Specifications
Contact Us

Package unit

Weight

0.2 kg

Item details

Gross weight

0.2 kg
