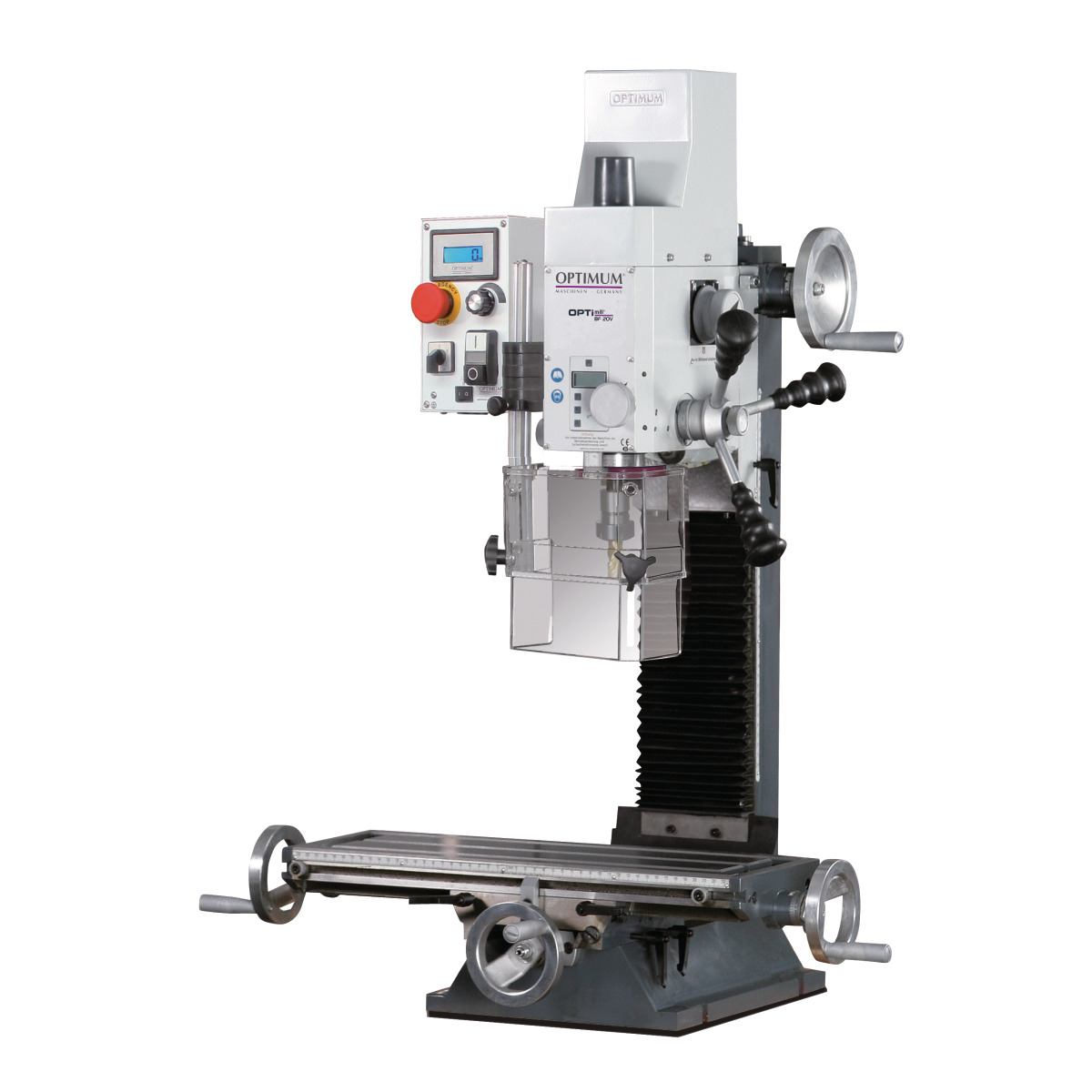

Drilling and milling machine OPTImill BF 20Vario

• Heavy and stable welded construction
• Punching table with scale and stops
• Extra large projection with 625 mm
• Time-saving, stepless stroke adjustment
• With a powerful engine
• Stepless adjustment of the stroke
• Punching saddle with second holder for machining UPN profiles
• Stamps and dies no. 1, no. 2, no. 3, no. 30, no. 45, no. 60 can be used with the standard delivery scope of the machine. Use of punch and die no. 4 and no. 80 optional

Important information:

• Please specify when ordering material to be edited!

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Stop track with length stop, manual measuring system with mm scale and reading magnifier
• Stop car is 4-roller bearings, thus manually easily displaced
• Adjustable stop arm and can be folded away to the rear
• Maximum measuring length is the length of the web minus the stop length of 250 mm
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• With foot control
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp-bending rail
• Seriesßig with manual adjustment of the bending angle
• Especially low-maintenance
• Clamping of the workpiece is motor-driven
• SH models with high, segmented cast base tools
• DUO models with continuous sharp-bending rail and high, segmented goat foot tools

Available on request

• Standard tools hardened
• Sharp bending bar and bending bar hardened
• Segmented tools and bending bar hardened
• Segmented cast foot tools and bending bar hardened

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For precision surface grinding in the industrial sector
• Maximum stiffness and stability thanks to tension-free re-heated and hardened cast iron construction
• High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
• Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
• Automatic central lubrication for all slides and spindles
• Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
• Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
• Second grinding wheel flange included in delivery

Automatic feed control AD 5
The fsM series models are equipped with automatic feed control (AD 5). Different grinding cycles are available: surface loops with delivery at the starting point, groove loops with delivery at the starting point, groove loops with delivery at the start and end points. The delivery of the grinding wheel can be individually designed depending on the workpiece. The total grinding size is divided into coarse and fine delivery, the delivery steps can be freely entered, depending on the application, with a minimum resolution of up to 0.001mm. The possibility to program dead runs after a certain number of delivery steps as well as passages for firing after reaching the grinding measure provides the best grinding results.
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Precisely processed
• High concentricity due to tapered roller bearings ≤ 0.015 mm measured in the sleeve
• Motor with two-stage gear ratio for powerful transmission of motor power
• Powerful DC motor with permanent current monitoring
• Air filter for motor
• New electrical system with improved motor protection (extended circuit board and circuit board for EMC)
• Safety electrics in 24 volt version

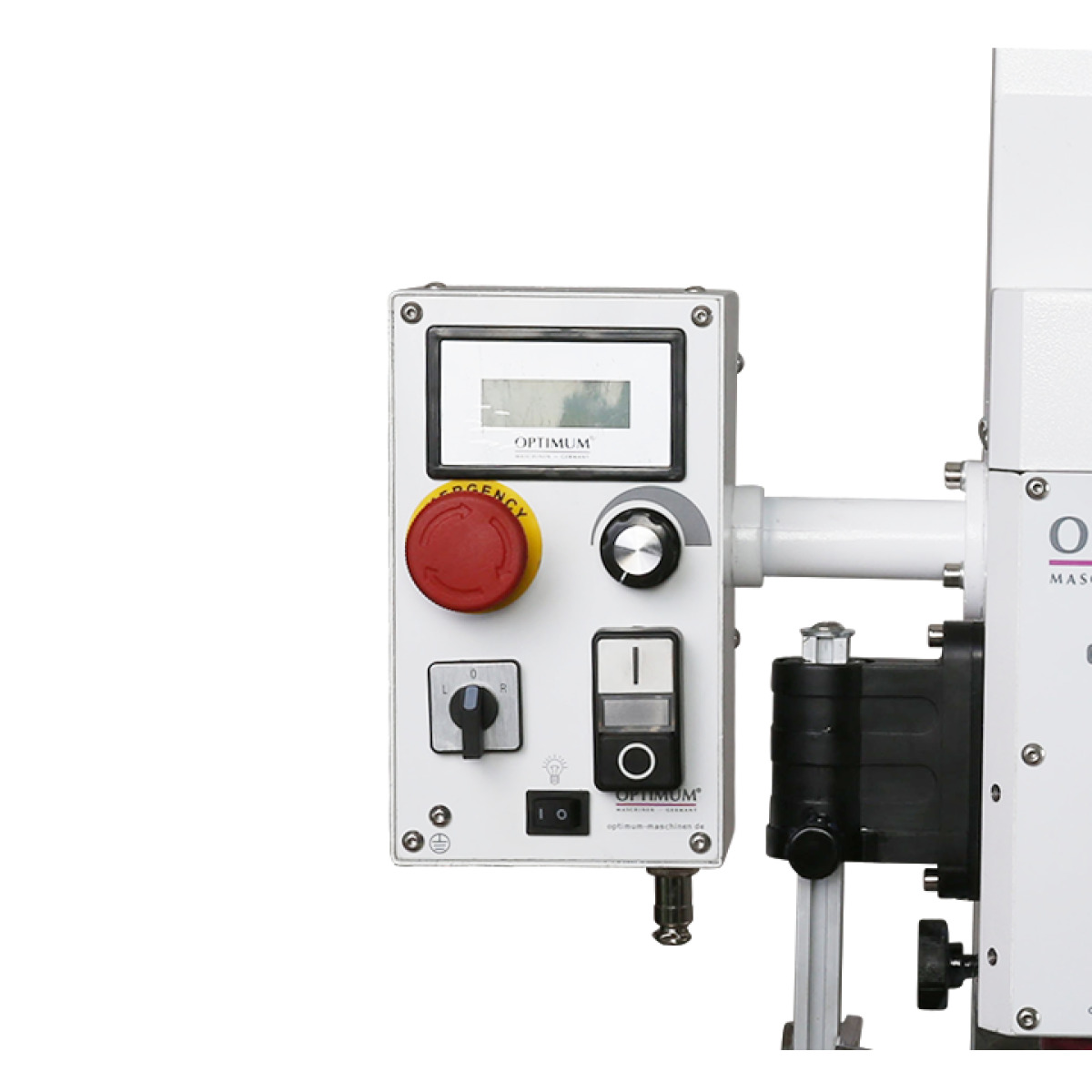

• Control electronics with integrated relay control
• Massive and generously dimensioned cross table, precisely surface-machined with T-slots and adjustable gibs
• Adjustable end stops
• Stable dovetail guide with adjustable gibs
• Adjustable and readjustable feed spindle play
• Emergency stop switch
• Drilling/milling head can be tilted by ±60
• Right/left rotation
• Machine lamp
• Double-row angular contact ball bearings in the axes, adjustable without play
• Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user

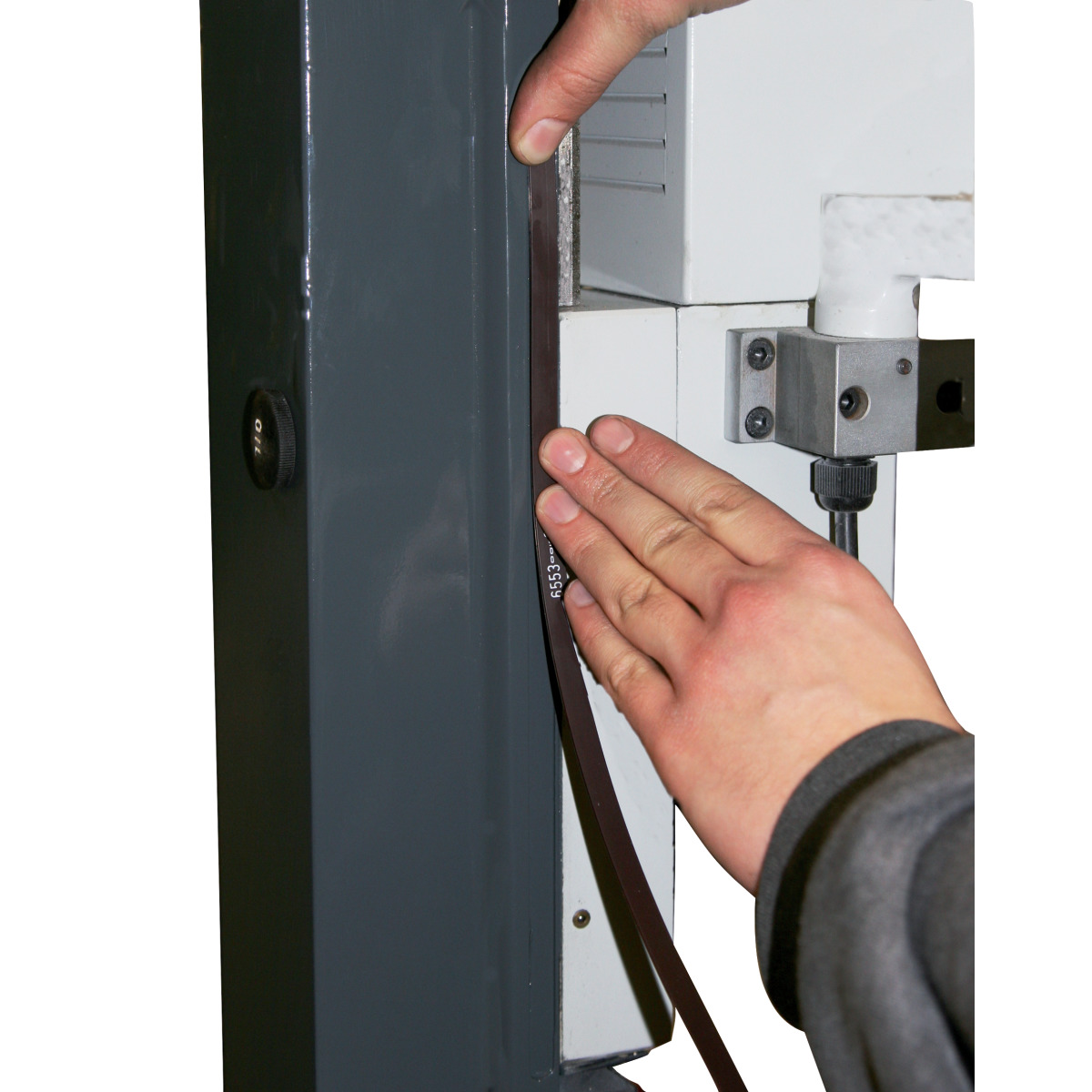

• Preparation for mounting the DRO5 digital position indicator in the X and Y axes (prepared groove for retrofitting the magnetic strips)
• Lockable main switch

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
