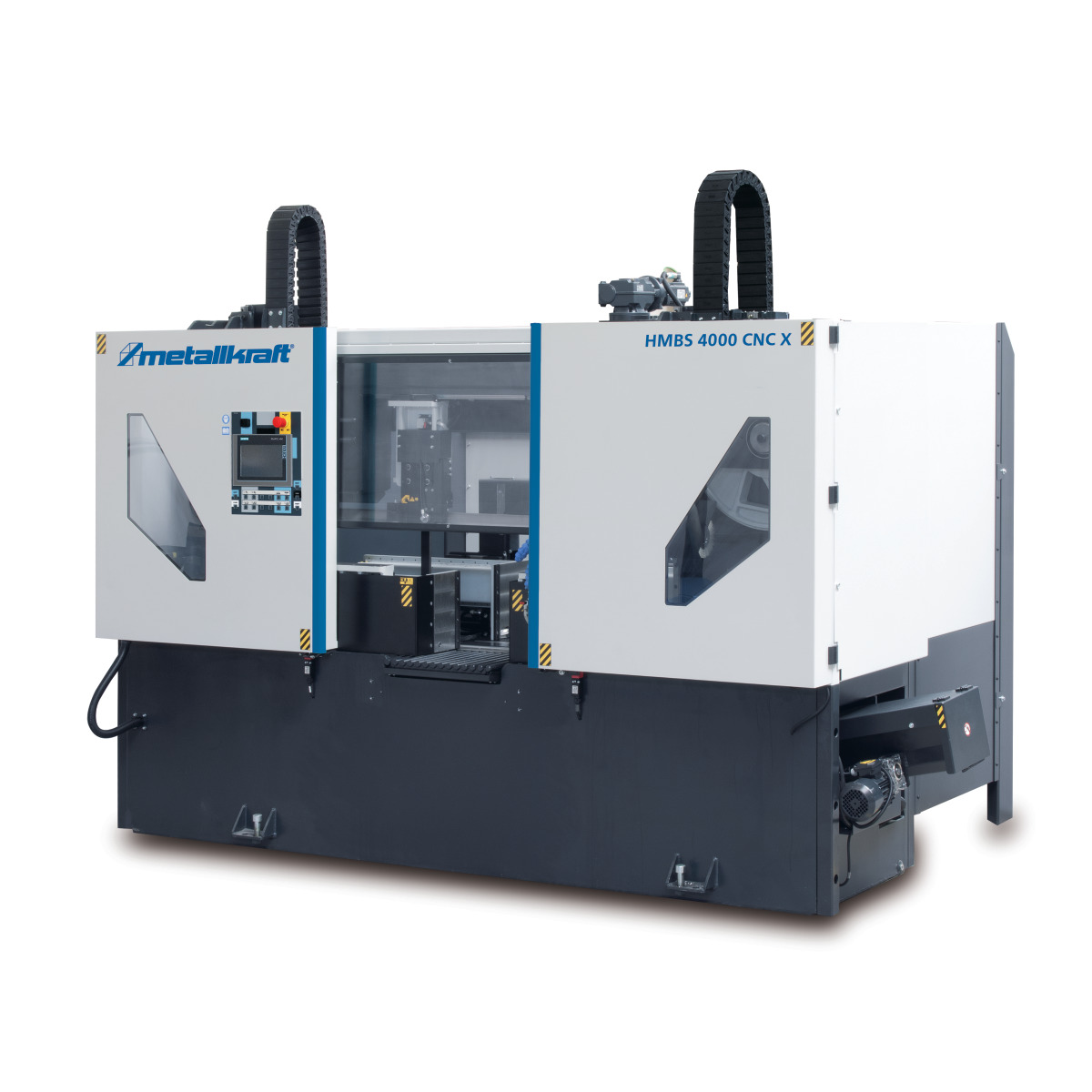

Fully automatic two-column horizontal metal band saw HMBS 4000 CNC X

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

• Two-column guided band saw for sawing solid bar material and bar profilesMitsubishi

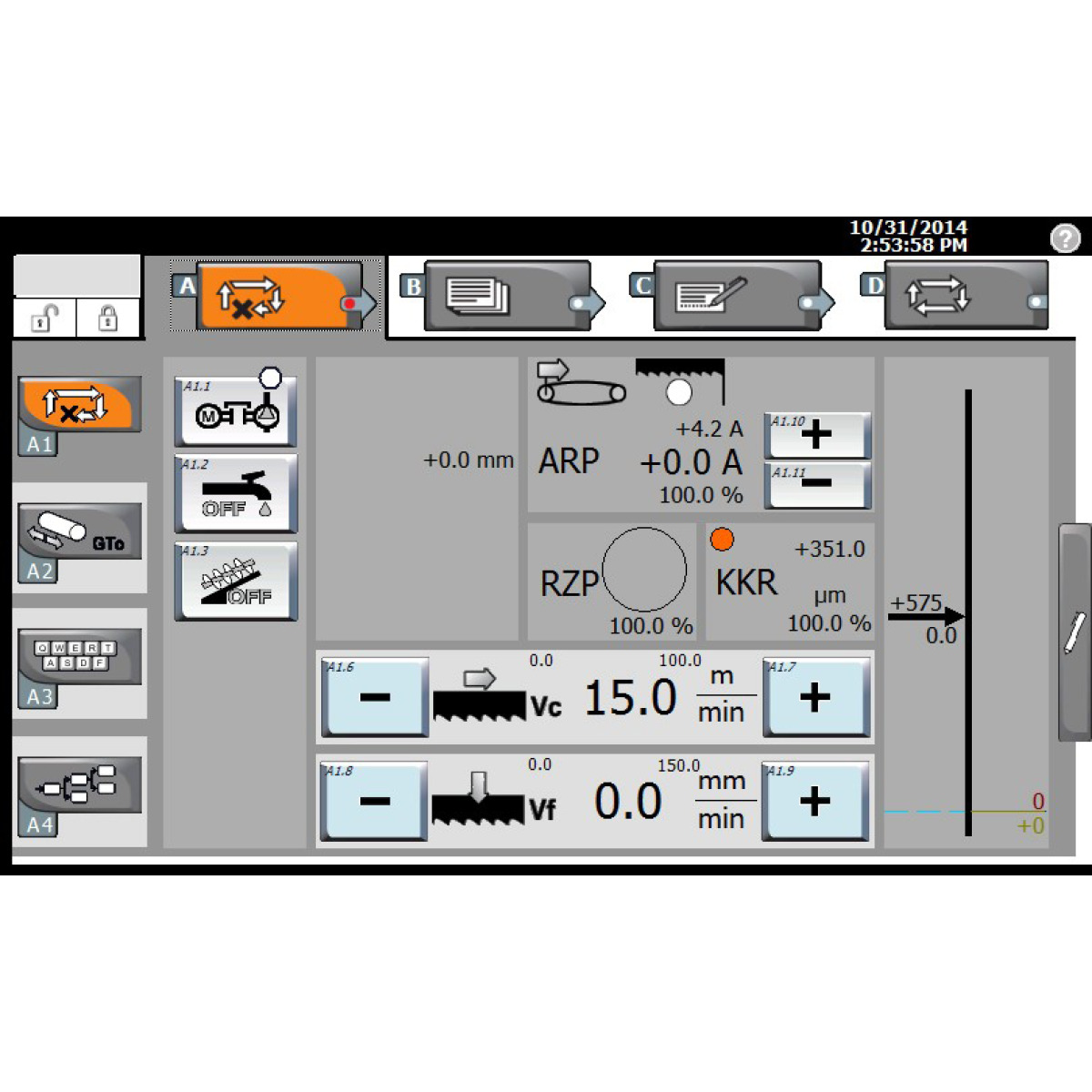

• FX 5 control system with simple operation via 4.3" touchscreenCutting movement
• via hydraulic cylindersWith
• BRP (cutting feed control): if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continuesRobust
• machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performanceInfinitely variable
• cutting speed from 15 - 150 m/minSaw blade drive
• via bevel gearbox, Asynchronous motor and frequency converterClamping
• of the material in front of and behind the cut by means of a two-part vicePressure adjustment
• of the hydraulic vice clamping via control valve with pressure gaugeSaw blade inclination
• of 7° and hydraulic saw blade tensioning increase the service life of the saw
• bladeFront
• blade
guide moves automatically parallel to the moving
• saw blade
• Band guide moves automatically parallel to the moving vice jawElectrically
• driven chip clearing brushEmulsion cooling
• with liquid distribution into the saw band guides and directly into the cutting channelMore powerful
• motor optionally availableSaw band guides
• with integrated cooling system/ul>

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy industrial version
• Quiet running
• Manual or semi-automatic operation
• Steplessly adjustable saw blade speed from 20-80 m/min
• High cutting accuracy due to vibration-free running
• Mitration adjustment -45° to 60° by swivelling the entire saw bow
• Standard with high quality bi-metall saw band
• Microswitch for automatic limit switch
• Coolant pump
• Ball bearing saw band guide with carbide plates for optimum cutting results
• Easy adjustment of the lowering speed by means of feed control valve in the control panel
• Large dimensioned, hydraulic quick-clamping vice, self-closing, laterally adjustable
• Manometer for correct saw blade tension
• Clear control panel

• closing the vice and activating the motor
• lowering the saw bow for cutting
• stopping the motor and returning the saw bow to the starting position

• Saw head swivelby by 45° to the left and right
• Stable and robust construction
• Precise cut
• Turntable and saw shaft mounted on bearings
• Quick-release screw sticks with plastic-equipped aluminium clamping jaws
• Easy and hassle-free operation
• Saw head for chiverge cut by 45° to the left tiltable
• Two hand-held screw sticks

• Machine head guided vertically, with dovetail guide and adjustable wedge bar
• Swivelling 45° to the left and 60° to the right, with locking at -45°, 0°, -45°, 60°
• Two cutting speeds
• Adjustable depth stop for the vertical stroke of the saw head
• Cross-movable vice with anti-burr device
• Stable and robust construction
• Easy and hassle-free operation
• Reduction gearbox quietly running in the oil bath
• Coolant pump with coolant filter
• Coolant jet distribution, for better lubrication of the saw blade
• Chip crusher for leaf cleaning
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch and overload protection
• Control handle with safety switch
