*töölaua pikkus ilma pitskruvideta: 1600 mm*töölaua laius/sügavus ilma pitskruvita: 600 mm*maks. kandejõud: 500 kg*töökõrgus: 850 mm*mõõdud: 1760 x 770 mm*kaal: 61 kg
*töölaua pikkus ilma pitskruvideta: 1340 mm*töölaua laius/sügavus ilma pitskruvita: 500 mm*maks. kandejõud: 350 kg*töökõrgus: 850 mm*mõõdud: 1340 x 650 x 850 mm*kaal: 47 kg
*töölaua pikkus ilma pitskruvideta: 1650 mm*töölaua laius/sügavus ilma pitskruvita: 610 mm*maks. kandejõud: 350 kg*töökõrgus: 850 mm*mõõdud: 1800 x 760 x 850 mm*kaal: 62 kg
*töölaua pikkus ilma pitskruvideta: 1840 mm*töölaua laius/sügavus ilma pitskruvita: 500 mm*maks. kandejõud: 350 kg*töökõrgus: 850 mm*mõõdud: 1800 x 760 x 850 mm*kaal: 62 kg
*töölaua pikkus ilma pitskruvideta: 1915 mm*töölaua laius/sügavus ilma pitskruvita: 615 mm*maks. kandejõud: 350 kg*mõõdud: 2120 x 790 x 870 mm*kaal: 91 kg
Professionaalsele tislerile. Aurutatud punapöök-täispuitmaterjalist. Eriti raske pingi ja alusraami konstruktsioon, mis tagab kindla paigalpüsimise. Kergesti liikuv trapetskeermega spindel. Kalasabatappidega otsapitskruvi ja süvendi konstruktsioon. Tugeva lineaartoega otsapitskruvi. Rasked ja tugevad pitskruvide juhikud.
Standardvarustusse kuuluvad ümmargused pingipulgad muudavad erinevate detailide kinnitamise lihtsaks. Pingipulkade peaosa alumiiniumist, mis ennetab tööriistade kahjustamist ettekavatsemata kokkupuutel.
*töölaua pikkus ilma pitskruvideta: 1910 mm*töölaua laius/sügavus ilma pitskruvita: 615 mm*maks. kandejõud: 750 kg*mõõdud: 2165 x 855 x 870 mm*kaal: 141 kg
The HOLZKRAFT KSO 150 M is a professional oscillating belt sanding machine designed for precise edge and surface sanding of wood, veneer and wooden components. The oscillating sanding belt ensures an even sanding pattern and extended belt service life. The heavy-duty welded steel base guarantees vibration-free operation.
Key features:
Oscillating sanding belt for uniform sanding results
Tiltable sanding unit up to 45° for flexible operation
Height-adjustable work table for full use of belt width
Graphite-coated sanding pad for reduced friction and longer belt life
Double dust extraction system for improved cleanliness
Spring-loaded belt tensioning system for consistent operation
Rigid industrial-grade construction
Technical specifications:
Main motor power: 3.0 kW
Oscillation motor power: 0.25 kW
Power supply: 400 V / 50 Hz

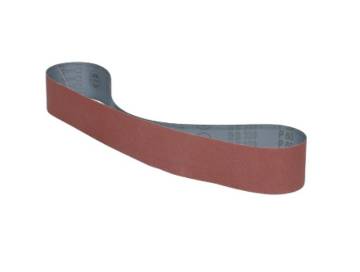

Sanding belt size: 2600 × 150 mm
Sanding surface: 850 × 200 mm
Work table size: 750 × 300 mm
Table height adjustment: 200 mm
Sanding belt speed: 20 m/s
Oscillation stroke: 20 mm
Dust extraction port: Ø 140 mm
Dimensions (L × W × H): 1600 × 850 × 1350 mm
Weight: approx. 215 kg
Included in delivery:
HOLZKRAFT KSO 150 M oscillating belt sanding machine
Universaalne alus koos rullikute ja kiirkinnitussüsteemiga. Universaalselt kasutatav,järkamissaagidele, lintlihvijatele, metallilõikuritele jmt. Minimaalne seadistusaeg.Väljatõmmatav pikkuseni 2400 mm. Koormustaluvus kuni 225 kg. Tööriistavaba montaaž ja reguleerimine.Ruumisäästlik tänu kokkuklapitavatele jalgadele.*maks. kandevõime: 225 kg*toetuspinna min kõrgus: 850 mm*toetuspinna maks. kõrgus: 1000 mm*maks pikkus: 2400 mm*mõõdud: 1600 x 600 x 850 mm*kaal: 30 kg
The Holzkraft FB 4500 is a professional conveyor belt trolley for transporting firewood and log sections, designed for efficient and ergonomic material handling immediately after cutting or splitting. It is ideal for use with log splitters, storage systems and for loading trailers or containers.
The conveyor features a 4500 mm long and 250 mm wide belt, ensuring smooth and reliable conveying. Tilt angle is adjustable from 5° to 45° via a manual winch, allowing flexible adaptation to different loading heights. A belt speed of 0.8 m/s provides a consistent material flow.
Powered by a 1.1 kW / 400 V electric motor, the FB 4500 is built with a robust steel frame, galvanized conveyor trough, and air‑tired transport wheels for easy mobility even on rough ground.
The Holzkraft HWS 505 K (230 V) is a robust and high‑capacity rocking circular saw designed for firewood cutting, suitable for demanding home users and semi‑professional applications. It features a direct drive system and a powerful 2.6 kW electric motor, enabling efficient operation from a standard 230 V supply.
A fully enclosed sawing area ensures high safety standards, while the patented protective flap allows fast and ergonomic handling. Stamped anti‑rotation barbs in the rocker prevent wood from twisting during cutting. The torsion‑resistant steel frame and powder‑coated finish provide excellent durability and weather resistance.
The saw is equipped with transport wheels for easy mobility and is supplied with a carbide‑tipped saw blade Ø 505 mm (Z40) for fast and efficient cutting of firewood.
Key Features:
Power supply: 230 V / 50 Hz
Motor input power: 2.6 kW
Motor output power: approx. 2.1 kW
Drive system: direct drive
Max. cutting capacity (round wood): Ø up to 170 mm
Max. cutting capacity (split logs): up to 240 × 190 mm
