Magnetic core drills

Tehnilised andmed:

• Toitepinge: 230 V
• Võrgusagedus: 50 Hz
• Mootori võimsus: 1,1 kW
• Spindli kiirus tühikäigul: 850 p/min
• Pöörlemissuunad: parem- ja vasakkäik
• Magneti hoidmisjõud: 14 500 N
• Magnetaluse pikkus: 166 mm
• Magnetaluse laius: 80 mm
• Südamikpuuri maksimaalne läbimõõt: 35 mm
• Südamikpuurimise maksimaalne sügavus: 50 mm
• Keermestamise maksimaalne suurus: M14
• Tööspindel: Weldon 19 mm (3/4")
• Etteanne: käsitsi
• Kaitseklass: IP42
• Mõõtmed (P × L × K): 290 × 154 × 180 mm
• Kaal: ca 9,5 kg

Komplekti sisu:

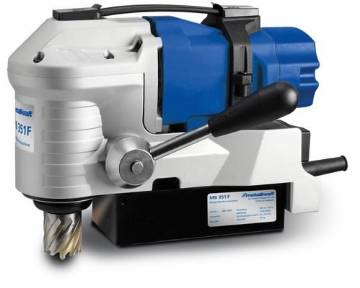

• Metallkraft MB 351 BLV magnetstatiiviga trell
• Integreeritud jahutusvedeliku süsteem
• Turvakinnitusrihm
• Tööriistad seadistamiseks ja hoolduseks
• Plastist transpordikohver
• Kasutusjuhend

Märkus: südamikpuurid ja tsentreerimistihvt ei kuulu standardvarustusse.

The MAKITA HB500 is a heavy-duty magnetic drill designed for professional metalworking applications. It combines the magnetic base, drill stand, and motor into a single system, ensuring easy setup and highly stable drilling performance.

Key features:

• Powerful magnetic base ensures secure positioning and high precision
• Two-speed gearbox (350 / 650 rpm) for optimal performance on different materials
• Suitable for drilling holes in steel up to 50 mm diameter
• Integrated coolant system for smoother operation and longer tool life
• All-in-one system (magnetic base + stand + drill) for fast and easy setup
• Robust construction for professional and heavy-duty use
• Double insulated for increased safety
• Stable slide mechanism for accurate and consistent drilling

Technical specifications:

• Power input: approx. 1150 W
• Voltage: 230 V
• No load speed: 350 / 650 rpm
• Max drilling capacity in steel: 50 mm
• Chuck capacity: 16 mm (5/8”)
• Magnetic holding force: approx. 9,300 N
• Dimensions: approx. 290 × 150 × 450 mm
• Weight: approx. 18.5 kg

Scope of delivery:

• Quick release arbor
• Coolant tank and hose
• Safety guard
• Safety strap
• Hex keys
• Carrying case

Application:

Ideal for heavy-duty metalworking, construction, and maintenance tasks where large diameter drilling and strong magnetic fixation are required.

The MAKITA HB350 is a compact and powerful magnetic drill designed for precise drilling in ferrous metals. The unit combines a magnetic base, drill stand, and drill motor into one system for easy setup and stable operation.

Key features:

• Powerful magnetic base ensures firm holding and accurate drilling
• Suitable for drilling holes in steel up to 35 mm in diameter
• Compact and lightweight design for easy transport and use in confined spaces
• Integrated coolant system for smooth and efficient drilling
• All-in-one system (magnetic base + stand + drill) for quick setup
• Double insulated motor for increased safety
• Smooth and precise drilling thanks to stable slide mechanism

Technical specifications:

• Power input: approx. 1050 W
• Voltage: 230 V
• No load speed: 850 rpm
• Max drilling capacity in steel: 35 mm
• Chuck type: 19 mm (3/4”) Weldon
• Magnetic holding force: approx. 8,000 N
• Dimensions: approx. 225 × 195 × 490 mm
• Weight: approx. 11.5–11.6 kg

Scope of delivery:

• Coolant tank and hose
• Safety guard
• Safety strap / chain
• Hex keys
• Carrying case

Application:

Ideal for metalworking, construction, and maintenance tasks requiring precise drilling and a strong magnetic holding system.

• Stable drill guide due to long and low-mounted quill holder
• The devices are ideal for the construction site as they are earthed and double insulated
• Internal self-lubrication function ensures a longer service life of the gearbox
• Soft start protects the motor and extends the service life
• Powerful motor with high torque and low maintenance
• High-quality construction
• Conversion from core drilling to full drilling in a few simple steps
• Automatic return to the starting position
• Protection class IP42

•  Mudel: OPTIdrill DM 38VF
•  Mootori võimsus: 1,65 kW
•  Toitepinge: 230 V
•  Võrgusagedus: 50 Hz
•  Tühikäigupöörded: 640 p/min
•  Tööriistakinnitus: Weldon 3/4"
•  Etteanne: käsitsi
•  Maksimaalne südamikpuuri läbimõõt: 38 mm
•  Maksimaalne puurimissügavus südamikpuuriga: 35 mm
•  Magneti hoidejõud: 14,5 kN
•  Magnetaluse pikkus: 166 mm
•  Magnetaluse laius: 80 mm
•  Pikkus: ca 350 mm
•  Laius/sügavus: ca 150 mm
•  Kõrgus: ca 240 mm
•  Netokaal: ca 8,8 kg
•  EMC-klass: C2
•  Kaitseklass: IP42

• Stable drill guide due to long and low-mounted sleeve holder
• Devices are grounded with dual insulation, and are thus ideal for the construction site
• High magnetic holding force
• Soft start is gentle on the motor and extends the service life
• Automatic internal lubrication, the coolant is fed directly to the core drill tip
• High quality design
• Conversion from core to full drilling in just a few steps
• Internal self-lubricating function guarantees a longer transmission service life.
• Magnetic base has a wear-resistant design to enhance the service life of the magnetic base and thus extend the maximum magnetic holding force

• Sleeve feed
• Automatic return to starting position

Equipment details:

• Powerful motor with high torque, low maintenance

• Removable coolant tank
• External fastening
• Carefully considered und practical

• Safe guides for stability and precision

• Compact and rugged

• Ergonomic, robust handles for "balanced" holding/fastening of the machine
• Robust crank

• Sleeve feed
• Controlled return to starting position

• Permanent magnet: current independent and thus 100% safe
• Magnetic base with high holding force allows for working on vertical surfaces and above head
• Stable drill drill guide due to long and low-mounted sleeve holder
• Ideal for the construction site: grounded with dual insulation
• Soft start is gentle on the motor and extends the service life
• Safe switch arrangement
• Automatic internal lubrication: coolant is fed directly to the tip of the core drill
• High quality design
• Internal self-lubricating function for a longer transmission service life
• External coolant tank for easily dosable internal cooling of the core drill
• Conversion from core to full drilling in just a few steps
• Carrying handle for convenient carrying and lifting

Equipment details:

• Current-independent and thus 100% safe

• removable
• External fastening
• Carefully considered and practical

• Clear-cut control element

• Stable drill guide due to long and low-mounted quill holder
• The devices are ideal for the construction site as they are earthed and double insulated
• Internal self-lubrication function ensures a longer service life of the gearbox
• Soft start protects the motor and extends the service life
• Powerful motor with high torque and low maintenance
• High-quality construction
• Conversion from core drilling to solid drilling in a few simple steps
• Automatic return to the starting position
• Protection class IP42

• Stable drill guide due to long and low-mounted quill holder
• The devices are ideal for the construction site as they are earthed and double insulated
• Internal self-lubrication function ensures a longer service life of the gearbox
• Soft start protects the motor and extends the service life
• Powerful motor with high torque and low maintenance
• High-quality construction
• Conversion from core drilling to solid drilling in a few simple steps
• Automatic return to the starting position
• Protection class IP42

• Infinitely variable speed
• Quick-change chuck
• Low-wear brass guide

• Stable drill guide due to long and low-mounted quill holder
• The devices are ideal for the construction site as they are earthed and double insulated
• Internal self-lubrication function ensures a longer service life of the gearbox
• Soft start protects the motor and extends the service life
• Powerful motor with high torque and low maintenance
• High-quality construction
• Conversion from core drilling to solid drilling in a few simple steps
• Automatic return to the starting position
• Protection class IP42

• Infinitely variable speed
• Quick-change chuck
• Low-wear brass guide

• Low-wear brass guide
• Weldon and MK mount
