Power tools, machinery

• Smooth and powerful industrial electric motor
• Separate emergency stop impact switch
• Stable casting column
• Measurement scale for drilling depth
• Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
• Drilling table 360 ​​° rotatable
• V-belt cover with safety switch
• V-belt quick-clamping device
• Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
• Massive, large base plate with grooves, strongly ribbed on the back
• By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
• Guaranteed concentricity measured better than 0.015 mm in the drill quill
• Drill spindle with precision ball bearings
• High-quality OPTIMUM keyless chuck in the standard scope of delivery
• Large, height-adjustable protective screen with safety switch

• Release up to three different pipe diameters (MRA 2)
• Can be used both horizontally and vertically
• Low effort

• Heavy, robust welded construction
• Splitter-guided upper beam with adjustable flat guides
• Manual cutting gap adjustment at the front of the machine
• LED cutting line illumination and elongated holes in the top cover for an optimal view of the cutting edge and for cutting on tear-off
• Solid 90° side stop with 1000 mm length, T-slot, tilting cam and scale
• Two solid sheet support arms with T-slots and tilting cams
• Motorized, NC-controlled backgauge with 750 mm travel range
• Backgauge drive with frequency converter, motor with brake and recirculating ball screws
• High-quality, rotatable knives suitable for cutting stainless steel
• Heavy hold-down beam with gentle rubber inserts
• Rear area protected by light curtain
• Operation via mobile foot pedal console with emergency stop

• for round bending of square material
• stable construction, fixable to the ground
• Drive the two lower rollers by means of a hand crank
• Rolls hardened and ground
• Steel shafts, hardened and ground
• Delivery via upper roller

• motor design
• horizontal and vertical work possibility
• powerful 400Volt engine
• Left / right rotation by foot pedal

• Suitable for dry grinding machines
• Separation of coarse particles in a prechamber
• Filter material made of fine cellulose
• Quick and easy filter change
• Chip container with chassis for easy emptying

• Suitable for dry grinding machines
• Separation of coarse particles in a prechamber
• Filter material made of fine cellulose
• Quick and easy filter change
• Adjustment of the automatic filter cleaning via controls
• Chip container with chassis for easy emptying

• Feed spindles can be adjusted backlash-free using adjustable spindle nuts
• Stable dovetail guide, precision-ground and scraped with adjustable gibs
• EMC filter (to protect sensitive electronics from interference from conducted interference signals class B)
• All guides are ground and visibly scraped (oil pockets for lubrication)
• Precisely machined
• Two-stage gear ratio for powerful transmission of motor power
• Powerful DC motor with permanent current monitoring
• Double-row angular contact ball bearings in the axles, adjustable without play
• Safety electrics in 24 volt version
• Bellows as guide protection
• Right/left rotation
• Drilling and milling head can be tilted by ± 900 for milling and drilling work at any angle
• Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user

• Simple operation
• Heavy, compact welded construction
• Particularly low maintenance
• For easy bending with precise adjustment of the bending angle using a stop with scale
• Sheet thickness adjustable via bending beam
• Tools for VA on request: sharp bending rail and bending bar made of Toolox 33, segmented tools and bending bar made of Toolox 33 and segmented goat foot tools made of Toolox 33
• Quality Made in Europe

• Smooth and powerful brushless drive
• Separate emergency stop impact switch
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Long, ergonomic aluminum die-cast quill lever
  One piece cast (B 24HV with softgrip handles)
• Measurement scale for drilling depth
• Belt cover with safety switch
• Forward / reverse operation
• Machine light

• Quillons made of steel
• Coolant system
• Chip filter according to the Machinery Directive
• Easy tool change through integrated expeller

• Quill stroke 160 mm
• Tapping function
• Digital depth gauge

• Operating mode "auto"
  • Engine starts automatically after lever movement
  • Stops again in the starting position
  • Pushbutton Start and Stop does not have to be pressed during repetitive drilling tasks
• Operating mode "tapping"
  • Engine is activated by moving the handle down
  • The direction of rotation is changed by limit switches on the adjustable drilling depth stop

• Especially quiet running
• High performance
• Approximately constant torque over the entire speed range

• Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt
• Smooth running thanks to ground multi-tooth driver

• Integrated in the housing

• by means of potentiometer

• Guaranteed ; 0.015 mm measured in the quill

• Precision ball bearings
• High quality OPTIMUM keyless chuck as standard

• Integrated in the drill head
• Halogen lamp

• Precisely worked
• Diagonal T-slots
• 360° rotatable
• Circulating cooling water channel

• Solid
• Large dimensions
• Heavily ribbed on the reverse side

• Thick-walled
• High power and stability

• High concentricity due to hardened and ground main spindle
• Low-maintenance gearbox with grease lubrication
• Gearbox with PA6 gears
• Large speed range
• Heavy, solid cast construction
• Large, height-adjustable protective screen with safety switch for the utmost protection of the user
• Drilling depth stop adjustable with millimeter scale
• Forward / reverse operation
• Machine light integrated in the drill head
• Integrated expeller for easy tool change
• Precision machined drilling table with diagonal T-slots with all-round cooling water channel
• Thick-walled cast-iron column for high power absorption and stability
• Massive base plate, large dimensions and strongly ribbed on the back

• Tapping function
• Automatic quill feed
• Coolant device and chip filter according to Machinery Directive
• Optional foot switch for switching between right-left rotation and thread cutting (article no. 3050032) available

• NC control for setting the bending angle and the correction
• counter for high repeatability
• Mobile control panel with controls and pedals
• Fast tool change

• Powerful motor with inverter and reduction gear produces high torque
• NC control for setting the bending angle and the correction
• counter for high repeatability
• Mobile control panel with controls and pedals
• Fast tool change
• All shafts hardened and ground
• Material clamping is done manually
• Very good price / performance ratio

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Precisely machined drilling table, ± 45° sideways tiltable and 360° rotatable
• Massive, large dimensioned base plate with grooves, heavily ribbed at the backside
• Ground multi-tooth driver
• Best power transmission through aluminium pulleys in combination with toothed GATES quality V-belt
• Guaranteed concentricity accuracy better than 0.03 mm measured in the drill spindle
• Drill spindle with precision ball bearing
• Quick action drill chuck as standard equipment
• Belt cover with safety switch
• Easy to use switch according to IP 54
• Separate emergency stop pushbutton switch

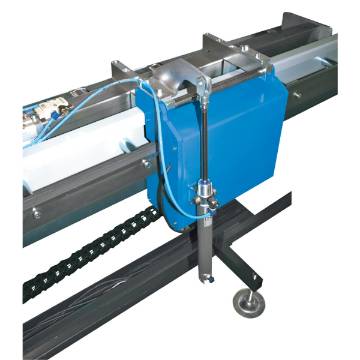

• Device for pneumatic folding away of the material arm to the rear
• Pneumatic cylinder handles this task simply and conveniently from the central operator console via a rotary switch

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

• For deburring flat components e.g. after laser cutting or punching
• Large working width with up to 1350 mm
• Conveyor table with profile conveyor belt for optimum hold during processing

• For deburring flat components e.g. after laser cutting or punching
• Large working width with up to 1350 mm
• Conveyor table with profile foconveyor belt for optimum hold during processing
• NC control with 8" touch screen

• two cutting speeds
• rotatable machine head at 45 ° to the left and 45 ° to the right
• Reduction gear, silent in oil bath running
• automatic membrane coolant pump with coolant filter
• Vise with counter vise, quick release and anti-jaw clamping jaws guarantees a precise and burr-free cut
• lateral material support arm with roller
• Vice can be swiveled 45 ° to the left and 45 ° to the right
• movable protection device ensures optimum safety when cutting
• Control handle with safety switch
• Vise with counter vise, quick release and anti-jaw clamping jaws
• lateral material support arm with roller
• Vise longitudinally displaceable and thus suitable for longitudinal cuts and slits
• Quality Made in Europe

• Changing the sanding belt in seconds due to the quick-release system
• Automatic re-tensioning of the sanding belt using the spring-loaded belt tensioning system
• Easy adjustment of the belt run using the adjusting screw
• Can be used as a table model and also as a standing model with the optional base

• Powerful motors and vibration-free operation for the best sanding results
• Sanding belt can be changed in seconds thanks to the quick-clamping system
• Automatic retensioning of the sanding belt thanks to spring-supported belt tensioning system
• Large surface sanding area thanks to fold-away upper sanding belt cover
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Continuous sanding surface after removal of attachments enables sanding of long workpieces as well
• Can be used with and without suction
• One extraction nozzle on the spark box and one on the rear belt roller
• Protective screen can be folded away
• Can be used as a table model and, with the optional base, also as a floor model

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

• The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
• Different tool variants available E, S2, HS2 and HSG
• The powerful auxiliary cylinder facilitates bending
• Next passage between top and bottom cheek of up to 25 mm
• Self-lubricating plain bearings
• Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
• Adjustment of material thickness by means of knurled screw
• Adjustable stop for bending angle

• With segmented sharp-bending tools, continuous bending strip and continuous bed support

• With segmented sharpening tools, segmented bending strip and continuous bed support

• With segmented gooseneck tools, segmented bending bar and segmented bed support
• Segments have a hardness of HRC24-26

• Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
• Bending capacity VA: factor 0.75
• Bending capacity aluminum: factor 1.2
• Hardened top tools are required to bend VA
