• heavy welded steel construction
• Horizontal and vertical work possibility
• Hydraulic adjustment of the upper roller
• all 3 rollers driven
• Rolls are hardened
• lateral straightening rollers, infinitely adjustable
• separate control panel with foot control
• powerful 400 volt engine

special accessories

• Tube bending rolls
• Angle bending rolls
• Special straightening rollers
• Profile bending rolls
• Plastic rollers for soft materials

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Powerful motors with vibration-free running to achieve the best sanding results
• Working height can be adjusted thanks to the infinitely variable inclination of the sanding unit
• Continuous flat sanding surface enables sanding of even long workpieces
• Suction nozzle on the rear belt roller
• Sanding belt can be changed in seconds thanks to quick-release system

• Powerful motors with vibration-free running to achieve the best sanding results
• Working height can be adjusted by infinitely variable inclination of the sanding unit
• Angle-adjustable workpiece support
• Continuous flat sanding surface enables sanding even of long workpieces
• One extraction nozzle on the spark box and one on the rear belt roller
• Protective screen can be folded away
• Sanding belt can be changed in seconds thanks to quick-release system
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Motor with brake and circuit breaker

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Feed roller conveyor without length stop and without measuring system
• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• standard design
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Heavy, durable industrial design with maintenance-free motor
• Housing made of extruded aluminum
• Long life and smooth running due to balanced rotor with
  Quality ball bearings
• Vibration damping rubber feet
• Two wide polishing wheels in the standard scope of delivery

Balanced rotor

• Long lifetime
• Very smooth running
• Quality ball bearings

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Saw head swivelby by 45° to the left and right
• Stable and robust construction
• Precise cut
• Turntable and saw shaft mounted on bearings
• Quick-release screw sticks with plastic-equipped aluminium clamping jaws
• Easy and hassle-free operation
• Saw head for chiverge cut by 45° to the left tiltable
• Two hand-held screw sticks

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the rear of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Stopper with reading magnifying glass facilitates reading on the mm scale
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• User-friendly safety switch to IP 54
• Separate emergency stop switch
• Measuring scale for drilling depth
• Precisely machined drill table with diagonal T-slots ± 45° tiltable and 360° rotatable
• Solid, large base plate with grooves, heavily ribbed on the back
• Guaranteed concentricity ≤ 0.03 mm measured in the drill spindle
• V-belt cover with safety switch
• Right/left rotation

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• Feed / discharge roller conveyor
• Roller conveyor without scale and stop with side guide
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Simple operation
• Heavy, compact welded construction
• Particularly low maintenance
• For easy bending with precise adjustment of the bending angle using a stop with scale
• Sheet thickness adjustable via bending beam
• Tools for VA on request: sharp bending rail and bending bar made of Toolox 33, segmented tools and bending bar made of Toolox 33 and segmented goat foot tools made of Toolox 33
• Quality Made in Europe

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Grinding belt change in seconds due to the quick-tensioning system
• Easy adjustment of the belt run
• Automatic re-tensioning of the sanding belt by spring-supported belt tensioning system
• Infinitely tiltable sanding unit
• One belt speed each for grinding steel and stainless steel

• Powerful motors and vibration-free operation for the best sanding results
• Quick sanding belt change in seconds thanks to quick-release system
• Large surface sanding area thanks to fold-away upper sanding belt cover
• Continuous sanding surface after removal of attachments enables sanding of long workpieces too
• Can be used with and without extraction
• One extraction nozzle on the spark box and one on the rear belt roller
• Easy adjustment of the belt run via adjusting screw on the front contact roller
• Automatic retensioning of the sanding belt thanks to spring-loaded belt tensioning system
• Infinitely tiltable sanding unit
• Fold-away protective disk
• MBSM 75-240-2 and 150-240-2 models with two belt speeds for sanding steel and stainless steel

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For bending and bending of sheet metal
• Removable bending cheek segments
• Convenient pivoting movement of the bending beam over the lever handle
• High quality quality bending cheek
• For use on the vise

• Bending segment pieces 150 mm / 75 mm / 50 mm and 25 mm removable

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Smooth and powerful industrial electric motor
• Separate emergency stop impact switch
• Stable casting column
• Measurement scale for drilling depth
• Precisely machined drill table with diagonal T-slots and circumferential cooling water channel
• Drilling table 360 ​​° rotatable
• V-belt cover with safety switch
• V-belt quick-clamping device
• Long, ergonomic cast aluminum sleeve lever cast in one piece (B 16H / B 24H with softgrip handles)
• Massive, large base plate with grooves, strongly ribbed on the back
• By swinging away the drilling table, base plate can be used as a work surface for particularly high workpieces
• Guaranteed concentricity measured better than 0.015 mm in the drill quill
• Drill spindle with precision ball bearings
• High-quality OPTIMUM keyless chuck in the standard scope of delivery
• Large, height-adjustable protective screen with safety switch

belt drive

• Smooth running thanks to ground multi-tooth driver
• Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt

machine light
Forward / reverse operation
Easy tool change through integrated expeller
Quillons made of steel
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Heavy steel welded construction
• Upper and pinch roller driven
• Motorized delivery of the side roller
• Swing-out top roller
• Roller drive via powerful electric motor and gearbox
• Safety device Emergency line
• Mobile control panel

Room amenities:

• Swiveling top roller

Note:

• Please specify when ordering material to be processed!
• Other models on request

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

Arguments convincing in quality, performance and price

• Time-saving deburring of edges and polishing of weld seams
• Stable and vibration-free construction
• Powerful engine
• Grinding table can be tilted by 22° - 50°
• Continuously adjustable stop at the top enables quick and easy grinding of the workpieces
• Large surface grinding area
• Additional safety device
• Extraction nozzle at the front for connecting a suction device
• Spark protection
• Workpiece support enables grinding at the right angle
• One sanding belt in the standard scope of delivery

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

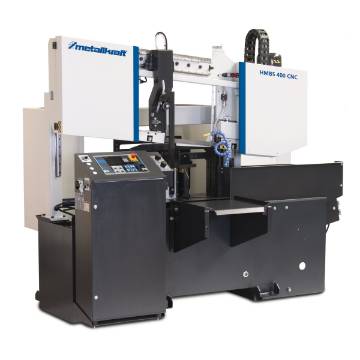

• For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
• With fully hydraulically controlled sawing functions
• Saw blade drive with low-maintenance, oil-lubricated worm gearbox
• With robust three-phase motor with overload protection
• Saw blade guide with adjustable carbide plates for a precise cut
• With chip clearing brush for optimum cleaning and maintenance of the saw blade
• Saw blade guides with integrated cooling system
• The vice is equipped with a long-stroke hydraulic cylinder as standard, eliminating the need to preset it to the material cross-section to be sawn
• The clamping jaws can move over the entire clamping range
• BRP - band saw blade monitoring
• With frequency converter as standard for infinitely variable adjustment of the saw blade speed from 20-100 m/min
• With STOP function - sawing process can be interrupted at any time by pressing a switch. The band continues to run while the arm moves out of the cutting channel
• Swivel control panel
• Digital angle display

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Robust machine design
• Manual and automatic mode selectable
• Easy tool change through quick change adapter

• Durable construction of tools and tool guides made of high-quality, hardened steel
• Manual operation via two foot pedals for flow and return
• Automatic mode by programming the front and rear travel end points
• Easy to change the die by quick change recording
• Foot pedal with digital display and emergency stop switch

Hydraulic oil not included

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Electromagnetic clamping plate for fixing the workpiece with automatic demagnetization function
• High-quality spindle with precision taper roller bearings
• Hardened and ground table guideways
• Turcite-B-coated counter-guides for high wear resistance and low friction
• Grinding spindle with high-quality precision bearings
Grinding wheel can be resharpened directly on the machine using a puller device
• Digital position indicator
• Machine base made of stable, torsion-resistant cast iron for maximum rigidity and stability
• Guideways of the longitudinal grinding wheel Lateral and vertical movements are backlash-free and self-centering as V- and flat track design
• Precision ball screws
• Guideways and transport spindle with central lubrication
• All flat tracks are finely scraped and thus guarantee highest precision of all manual movements
• Safety electrical system in 24 V direct voltage
• Largely dimensioned decoupled handwheels in all three axes
• Hydraulic lines according to DIN EN 853
• Grinding accuracy: 0,005 mm
• Corundum grinding wheel grain 46 for all common steels
• Swivelling control panel makes work considerably easier
• Two-channel safety electronics
• Sanding tableSplash guard
• Coolant tank capacity 100 liters
• Digitally controlled automatic vertical feed with servo motor
• Complex hydraulic system with heat exchanger ensures smooth table repositioning even with high table loads
• EMV filter class
• With IE3 motor - consumes considerably less energy and therefore significant cost savings

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Heavy steel welded construction
• Upper and pinch roller driven
• Motorized delivery of the side roller
• Swing-out top roller
• Roller drive via powerful electric motor and gearbox
• Safety device Emergency line
• Mobile control panel

Room amenities:

• Swiveling top roller

Note:

• Please specify when ordering material to be processed!
• Other models on request

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
