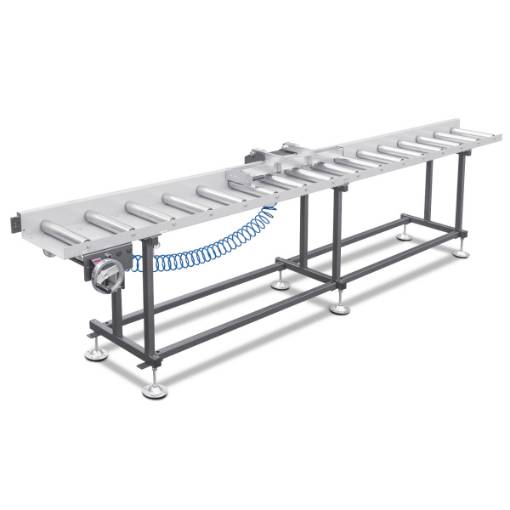

Roller and gauge system MRB Standard A 300 mm / 3 m

SKU: 51-3661113

Manufacturer part number: 3661113

GTIN: 4036351138136

Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
Support rollers made of galvanized steel (optionally also available with plastic rollers)
Supported rollers ball-bearing
The maximum measuring length is the length of the track minus the stop length 450 mm
Length measuring device with handwheel adjustment
Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation

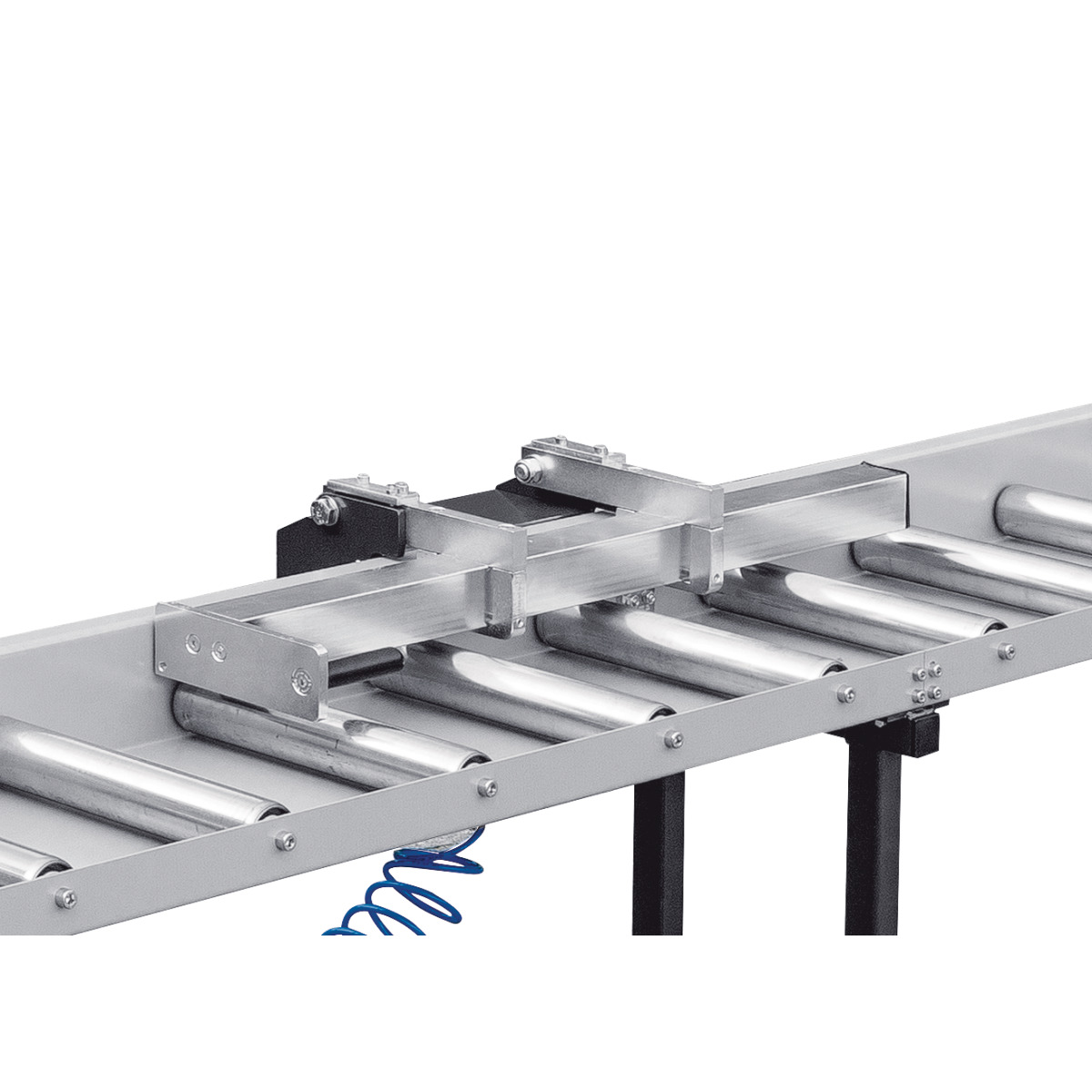

Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
For roller conveyors with a length of more than 5 m, a cable drag chain is used
Mounting side as desired right or left

Equipment details

position indicator

5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
Position indicator with hollow shaft encoder mounted directly on the drive shaft
Measuring accuracy / m: ± 0.5 mm

stop arm

900 mm long stop arm
Stop plate adjustable to zero point and manually hinged backwards
Multiple ball bearings, thus free of play
Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

Old price: 6026.54€

Price: 5436.31€

Qty:

i h

Availability: In stock

Laagri

On request: expected lead time 7 days

Mustamäe

On request: expected lead time 7 days

Approximate monthly installment payment

Period

Prepayment

Monthly

Specifications
Contact Us

Package unit

Weight

150 kg

Item details

Gross weight

150 kg

Your name *

Your email *

Enquiry *

Accessories and spare parts

Material arm can be folded away pneumatically

51-3672223

Device for pneumatic folding away of the material arm to the rear
Pneumatic cylinder handles this task simply and conveniently from the central operator console via a rotary switch

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

749.49€ 830.87€

On request in weeks

Cover plate, galvanized

51-3672224

Cover plates for mounting between the carrying rollers
Galvanized
Removable if necessary
Price per meter of sheet metal

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

171.55€ 190.18€

On request in weeks

Roller conveyor feet M16 x 250 mm, for height adjustment up to 1020 mm

51-3679005

can be retrofitted
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

195.46€ 216.68€

On request in weeks

Pneumatic arm retraction

51-3672222

Play only available in combination with spring-loaded stop arm SZ 05
Ideal for miter cutting
No tilting of the workpiece
Pneumatic arm retraction (release) from the material stop
Free stroke 10 mm

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

620.12€ 687.46€

On request in weeks

Direct magnetic tape measuring system 2 m

51-3672232

Direct magnetic belt measuring system
Delivery of direct magnetic belt measuring system including display unit Z58
Independent stop carriage and length measuring drives
Dimension is displayed via display unit Z58
Sensor head mounted directly on the stop carriage
Dimensional and repetition accuracy ± 0.1 mm per metre
Cable and air ducting via energy drag chain

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

1918.03€ 2126.28€

On request in weeks

Display Z58

51-3672220

For comfortable reading of the set values via 1/10 mm LED display
Receives the input signals via a magnetized pole ring and a sensor head mounted directly on the drive shaft
Measuring accuracy is ± 0.2 mm per meter
Easy to read

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

1241.66€ 1376.47€

On request in weeks

Sprung stop arm SZ 05

51-3672221

With sprung material stop arm
Adjustable to 0 point
Manually fold away to the rear
With an eccentric lever for
Exemption equipped

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

742.46€ 823.07€

On request in weeks
