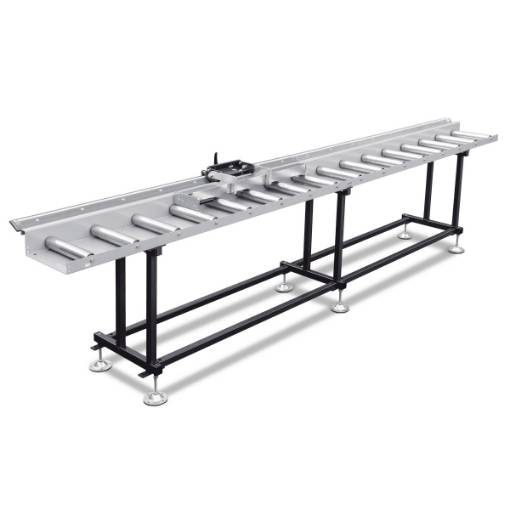

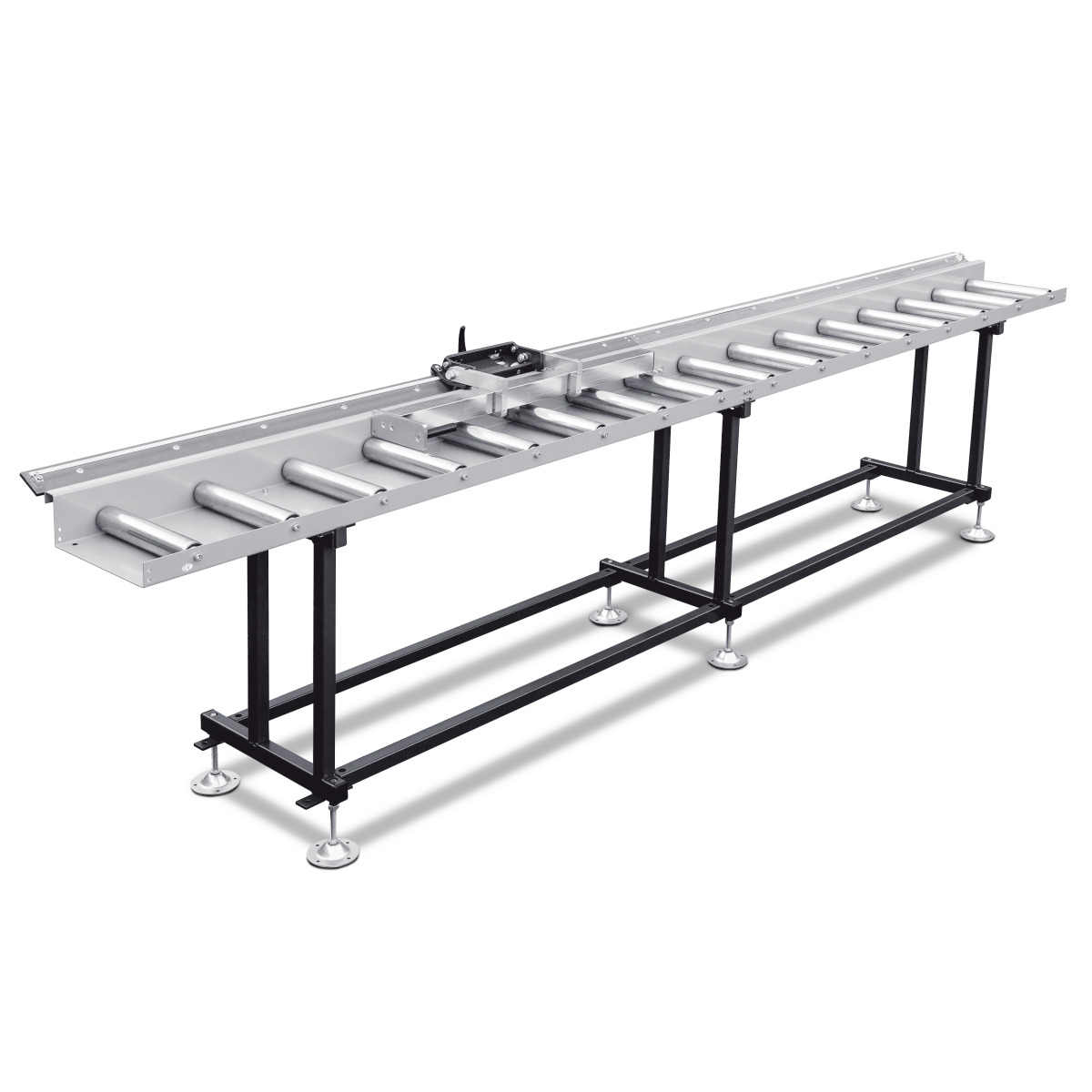

Roller and gauge system MRB Standard BKF 400 mm / 1 m

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 260 mm
• With length measuring device
• Roller and measuring track with mm-scale, manual measuring system with C-guide profile and sliding flap stop
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Quiet running
• Heavy cast iron version
• Hard carbide guide
• High cutting accuracy due to vibration-free running
• Double miter
• DIN EN 55011: EMC class C2
• Double-channel safety chain with quick stop in case of emergency hold
• Variably adjustable saw blade speed
• Variable by frequency inverter
• Professional inverter technology
• High motor power even at low speeds
• Microswitch for automatic limit switch-off
• Precise, readjustable and long-lasting saw blade guide
• End stops adjustable to the degree
• Chips brush
• Coolant pump
• Quick clamping vice adjustable via handwheel. Clamping of the workpiece with handy quick-action clamping lever
• Stable machine base
• Operating unit simplifies machine settings
• Completely equipped, enabling the user to work productively immediately after commissioning
• Infinitely adjustable saw band speed 15 - 90 m/min

Converter

• Siemens Sinamics G110M

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
• DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
• Stepless adjustment of the stroke
• Larger reach for punching station with 620 mm optional, available from HPS 55DS
• Heavy and rigid welded construction
• Standard with notching knife starting from HPS 45S
• With powerful 400 Volt motor
• V-notching knife, oversized punching device and larger throat depth for punching station available on request
• Two-stage foot pedal for inching operation
• Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

• High time savings - cycle times
• No chips
• No cooling

Note:

• All hydraulic sectional shears are delivered with oil

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Motorised height adjustment of the work table
• Conveyor table with profile conveyor belt for optimum stability during transportduring processing
• NC control with 8" touch screen
• With wet cooling for effective heat reduction of small parts or for machining with slow feed rate
• Equipped with parts dryer to prevent corrosion and ensure fast further processing
• Cleaning of cooling water in external filter
