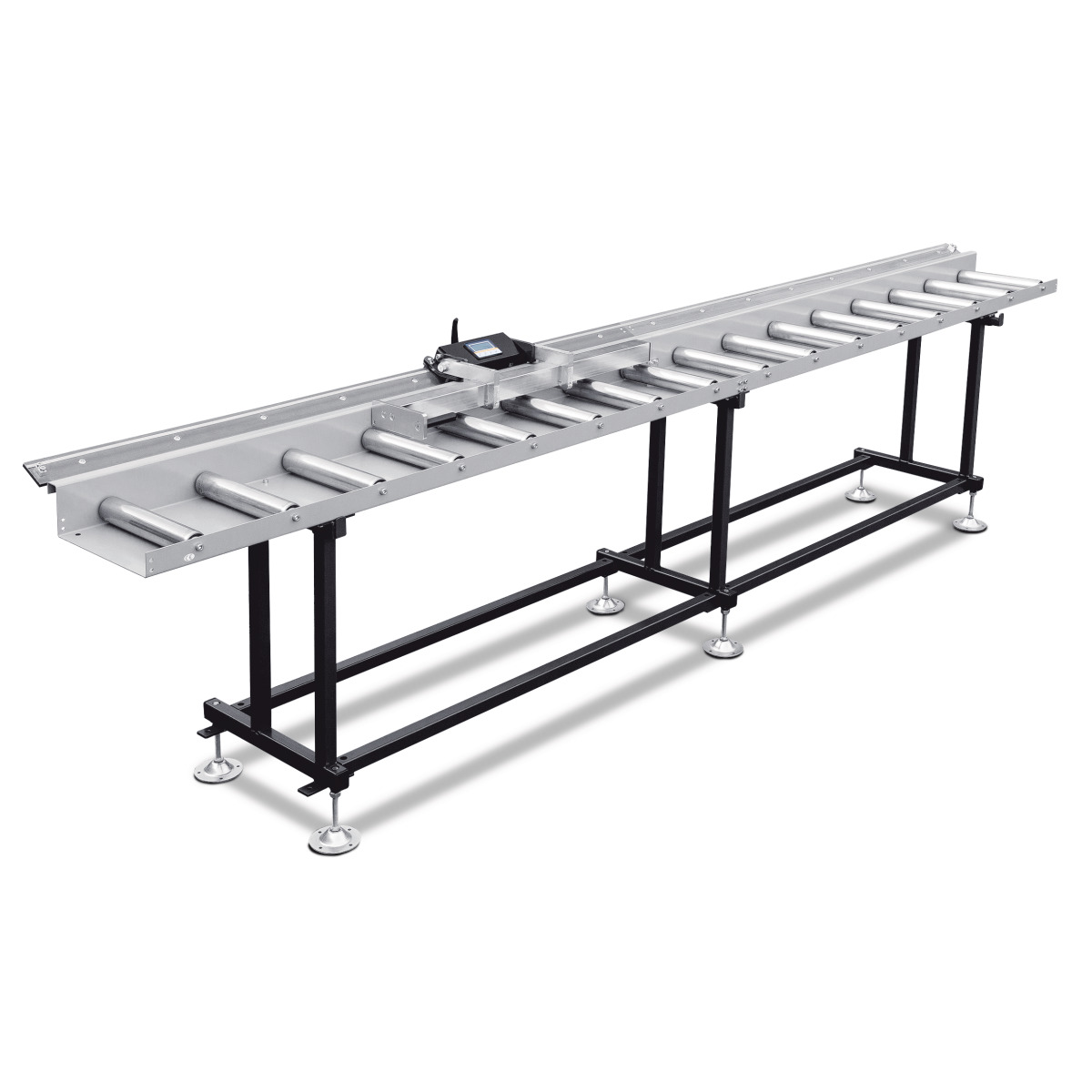

Roller and gauge system MRB Standard EKF 400 mm / 5 m

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

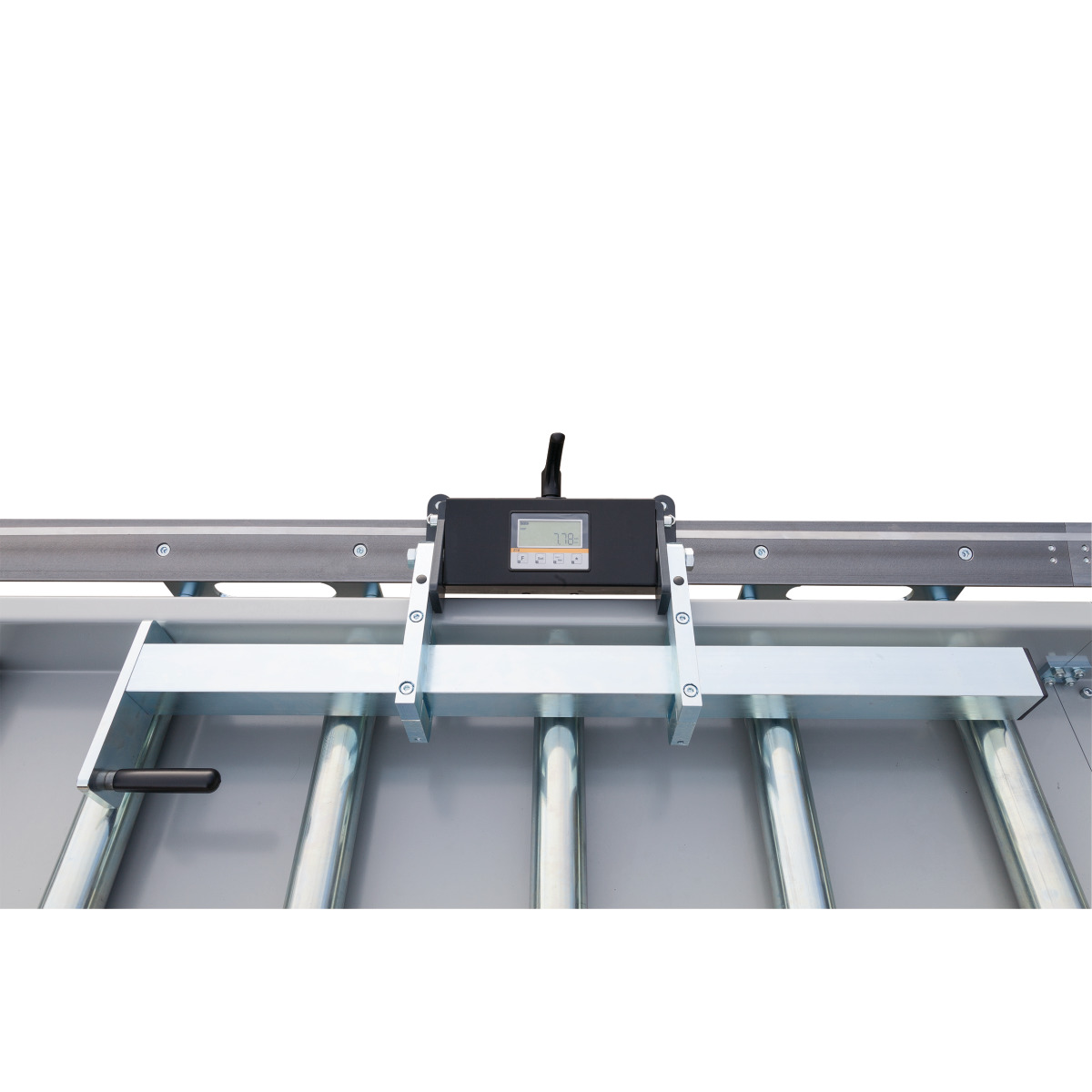

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the rear of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Stopper with reading magnifying glass facilitates reading on the mm scale
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• Quality Made in Germany

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

• Designed for industrial use
• Extremely stable and robust design
• Saw blade drive via low-maintenance, oil-lubricated worm gear unit
• With SIEMENS Simatic control system and SIEMENS electrics
• Operation on modern and powerful Siemens HMI multi-touch panel
• Control of the material and saw feed via ball screws
• Robust three-phase motor equipped with overload protection
• Frequency converter for infinitely variable adjustment of the saw blade speed from 20 - 100 m/min as standard
• Saw blade guide with adjustable carbide plates for a precise cut
• Hydraulic band tensioning device
• Saw arm can be tilted from -45 to +60 degrees
• Fully automatic mitre adjustment on both sides
• Swiveling control panel
• Chip clearing brush for optimum cleaning and maintenance of the saw blade
• 64-bit control system
• Automatic material feed of 970 mm
• Pressure reducer Clamping vice
• Saw blade guides with integrated cooling system
