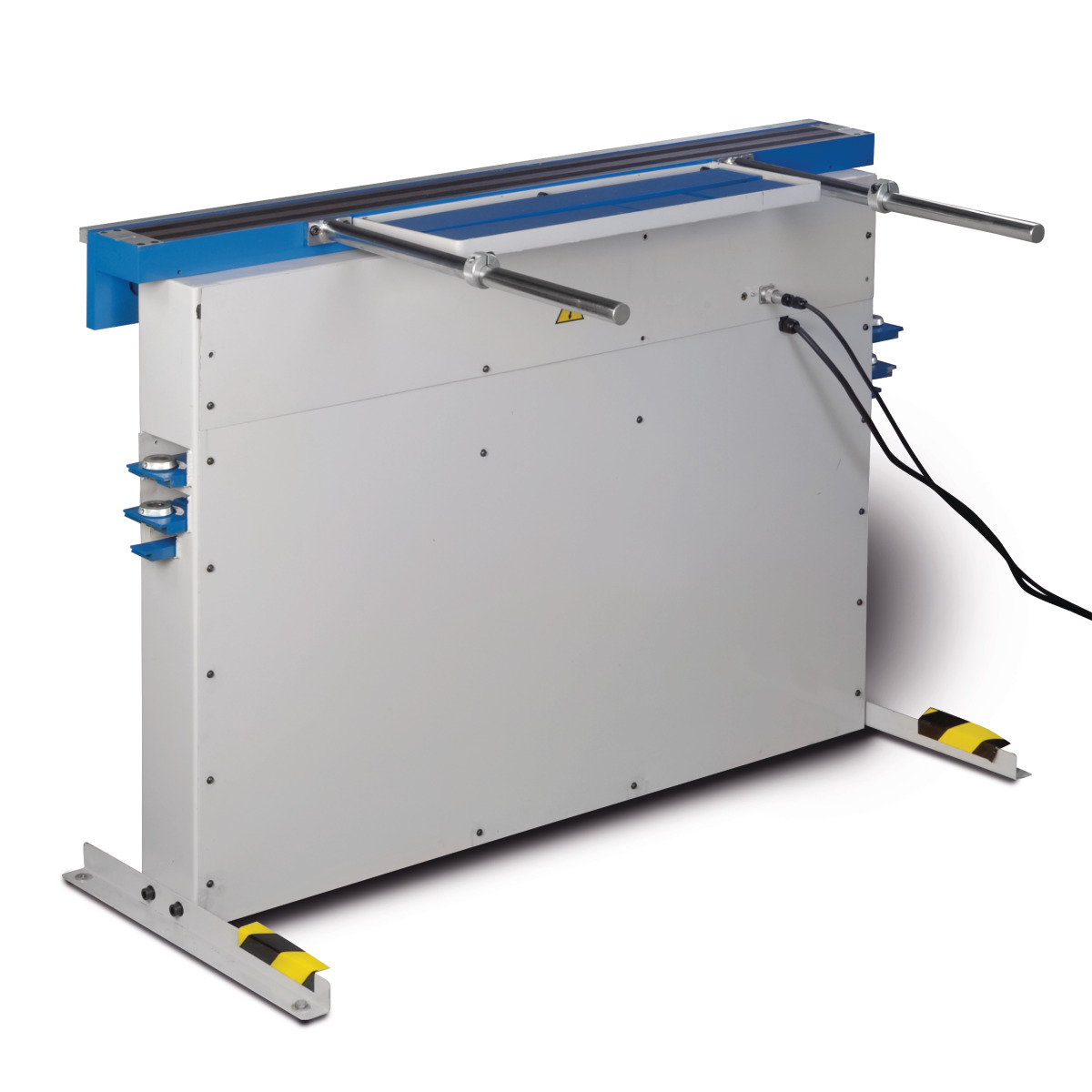

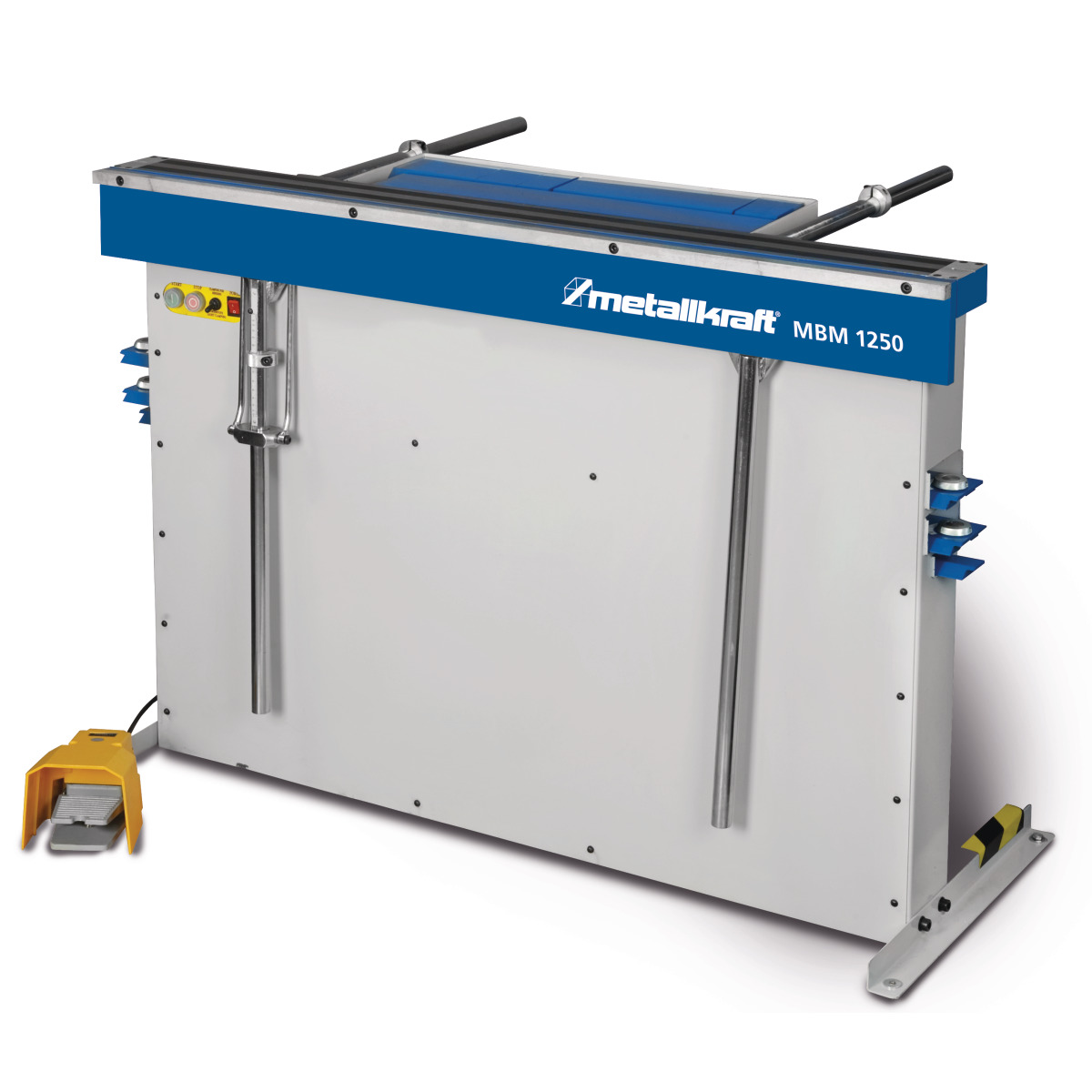

Swivel bending machine MBM 1250

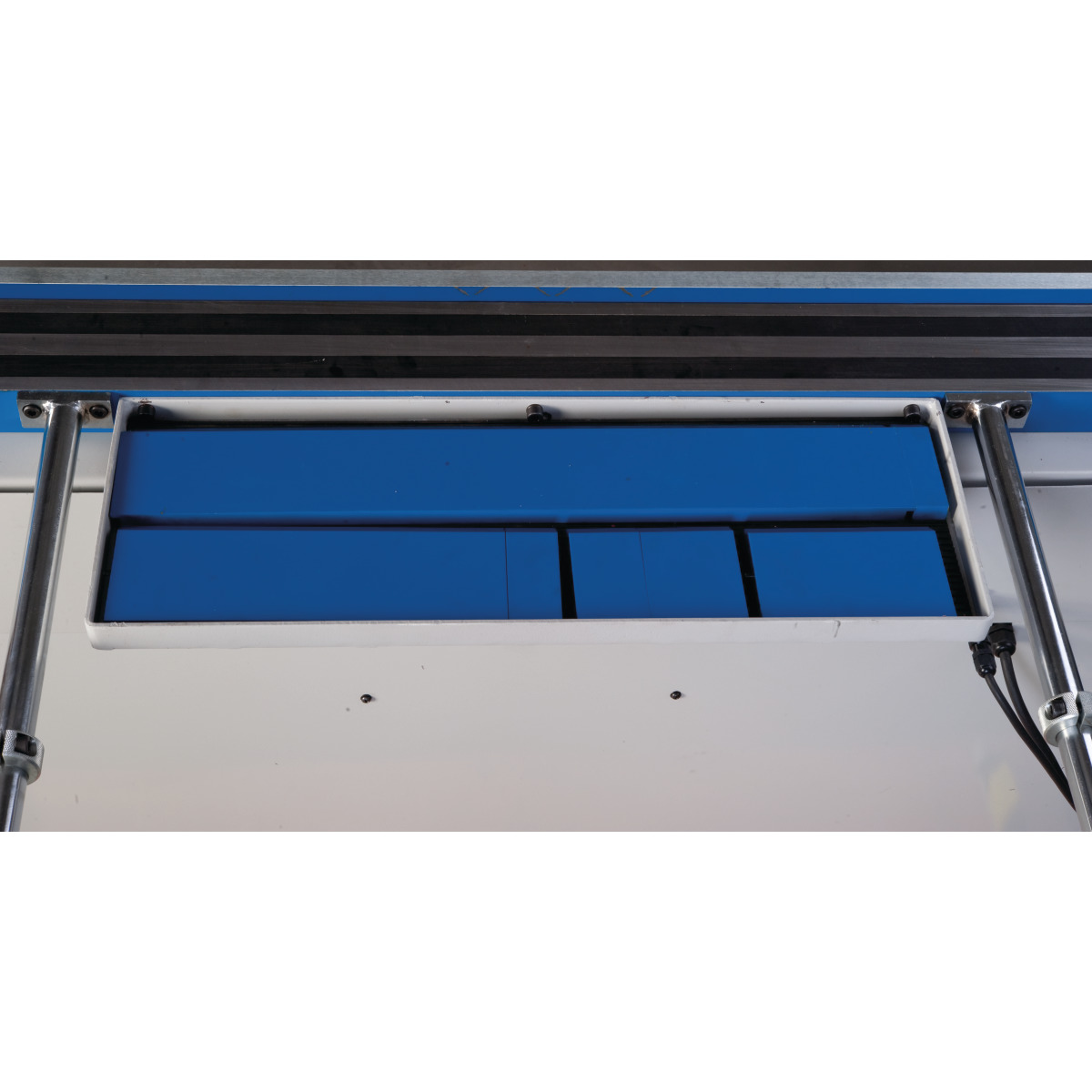

Ümberpaigutatavad kõrgkvaliteetsest terasest paindesegmendid suure täpsuse saavutamiseks.

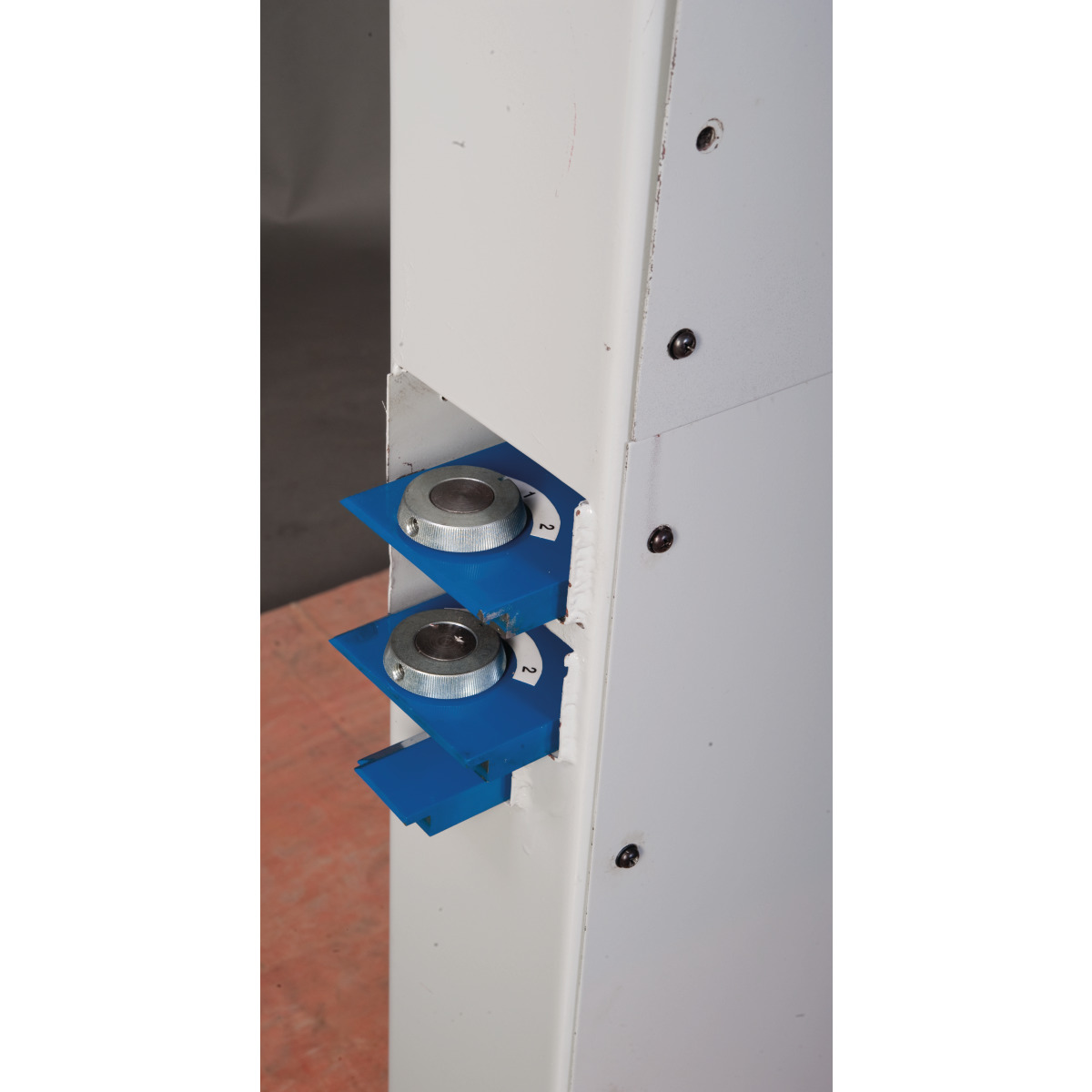

Mugav kinnitussüsteem.

Aluslaud ei kuulu komplekti.

• Tööpind: 1220 mm
• Maksimaalne materjali paksus: 1,5 mm
• Kaal: 140 kg.

Stabiilne multifunktsionaalne masin valtsimiseks, painutamiseks ja lõikamiseks.

Mugav kahe asendiline käepide. Palju erineva suurusega paindesegmente erinevatele detailidele.

Täiuslik töökoja lisa, mis vajab vähe ruumi.

• Töölaius: 1016 mm
• Painutusrullid Ø: 3x42Ø mm
• Maks lehtmetalli paksus: 1 mm
• Maks paindenurk: 90°
• Kaal: 195 kg

Metallkraft HSBM 3160‑0.7 on käsitsi juhitav professionaalne painutuspink, mis sobib täpsete ja sirgete plekipainutuste tegemiseks katuse‑ ja plekitöödel, montaažitöödel ning üldises metallitöökojas. Masin on kerge, mobiilne ja vastupidava konstruktsiooniga.

Põhiomadused:

• Maksimaalne töölaius: 3000–3160 mm (sõltuvalt allikast)
• Painutusvõime:



- Teras (400 N/mm²): kuni 0,7–0,8 mm

- Roostevaba teras: kuni 0,65 mm

- Alumiinium: kuni 1,5 mm

• Mõõdud: u. 3550 × 660 × 1000 mm
• Kaal: ligikaudu 415 kg
• Konstruktsioon: tugev ja lihtne raam, mis tagab täpse töö
• Painutamine: kaarsangaga (bow‑handle) pööratav painutusliikumine
• Kinnitamine: tooriku kindel ja turvaline fikseerimine hoova abil
• Liikuvus: varustatud transpordiratastega ja parkimispiduriga
• Kasutusvaldkonnad: katuseplekid, äravooluplekid, neeluplekid, korstnamantlid jm profiilplekid

The OPTIMUM PS 150 is a manually operated lever shear designed for precise and efficient cutting of metal materials. It is ideal for workshops, maintenance applications, and general metalworking tasks.

Key features:

• Suitable for cutting metal plates, sheet metal, round steel, and flat steel
• Sturdy and stable construction ensures accurate and clean cutting results
• Ergonomic cutting geometry for comfortable operation
• Smooth and low-effort cutting along the entire working length
• Durable, high-quality blades with long service life
• Adjustable hold-down device keeps the workpiece securely in position and prevents twisting
• Strong spring mechanism prevents automatic closing of the shears
• Stable base with mounting holes for fixed installation

Technical specifications:

• Max. cutting capacity: up to 4 mm
• Max. cutting length: 115 mm
• Dimensions: approx. 325 × 120 × 960 mm
• Weight: approx. 10.7 kg

Application:

Ideal for metalworking, manufacturing, maintenance, and workshop use where precise and efficient cutting is required.

The Metallkraft RBM 305 is a compact manual 3-roll plate rolling machine designed for producing pipes, cylinders, and other rounded sheet metal components. Its robust construction, hardened steel rollers, and hand crank drive with gearbox provide smooth operation and precise rolling results in workshops, maintenance environments, and confined workspaces.

The asymmetric roller arrangement allows convenient pre-bending, while the tilting side roller enables conical rolling operations. A swing-out upper roller makes removal of finished workpieces quick and easy. Integrated wire grooves also allow forming of round wire materials in several diameters.

Key Features:

• Manual 3-roll plate rolling machine
• Durable steel rollers
• Asymmetrical roller arrangement for easy pre-bending
• Tilting side roller for conical bending
• Swing-out top roller for quick workpiece removal
• Hand crank and gearbox drive system
• Wire grooves for 4 / 6 / 8 mm wire
• Compact and lightweight design
• Ideal for manufacturing pipes, cylinders, and other round-shaped parts

Technical Specifications:

• Maximum working width: 305 mm
• Maximum pre-bending capacity in steel (400 N/mm²): 0.8 mm
• Minimum bending diameter: 40 mm
• Top roller diameter: 25 mm
• Wire groove diameters: 4 / 6 / 8 mm
• Dimensions (L × W × H): 580 × 210 × 255 mm
• Weight: approx. 14 kg
