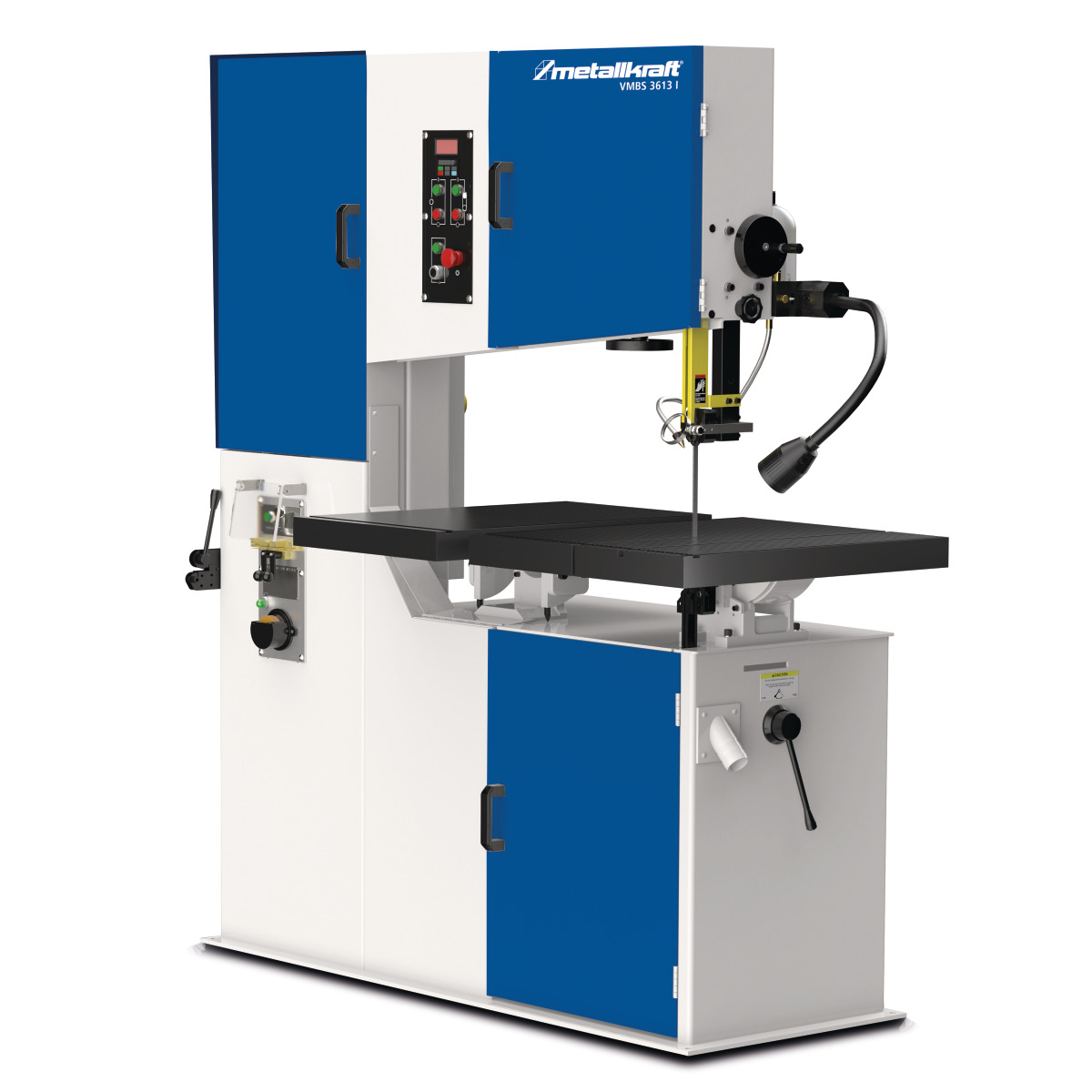

Vertical metal bandsaw VMBS 3613 I

• Control with 49 programs with each 99 possible individual steps
• Two cutting speeds
• Machine head guided vertically, with dovetail guide and adjustable wedge strip
• Machine head can be swiveled 45° to the left and 45° to the right, with locking at 45°, 0°, -45°
• Stable and robust construction
• Simple and intuitive operation
• Adjustable depth stop for the vertical stroke of the saw head
• Reduction gear, silent in oil bath running
• Coolant pump with coolant filter
• Coolant distribution for better lubrication
• Transversely movable hydraulic quick-action vice with anti-jaw device
• Chip breaker T6 for blade cleaning
• Electrical system in low voltage 24 volts, with emergency stop switch, main switch, speed selector switch, undervoltage release and overload protection
• Quality Made in Europe

• Material feed
• Closing the vice and activating the motor
• Activation of the coolant pump and lowering of the saw head for cutting
• Return of the feed carriage to the specified dimension
• Return of the saw head to starting position
• Opening the vise
• Repeat cycle

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

• Ideally suited for assembly companies, facade builders, locksmiths, repair shops, exhibition stand builders, etc.
• Ideal for use where cut-off machines are not strong enough or work uncleanly
• Cuts stainless steel with low burr
• Chips dissipate the heat, thus only low heat development during cutting
• Heavy-duty motor with soft start and overload protection
• Immersion into the material possible
• Uncomplicated and fast cutting depth adjustment by means of a precise and easy to read scale
• Double-guided rip fence for precise cutting guidance
• Stable and robust construction
• Handle can be screwed in at two different positions for comfortable handling of the saw in any position
• Simple operation

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the back of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• With length measuring device and digital dimensioning system
• Roller and measuring track with battery-operated LCD display and magnetic tape measuring system
• Quality Made in Germany

Please specify when ordering mounting side and height!

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany
