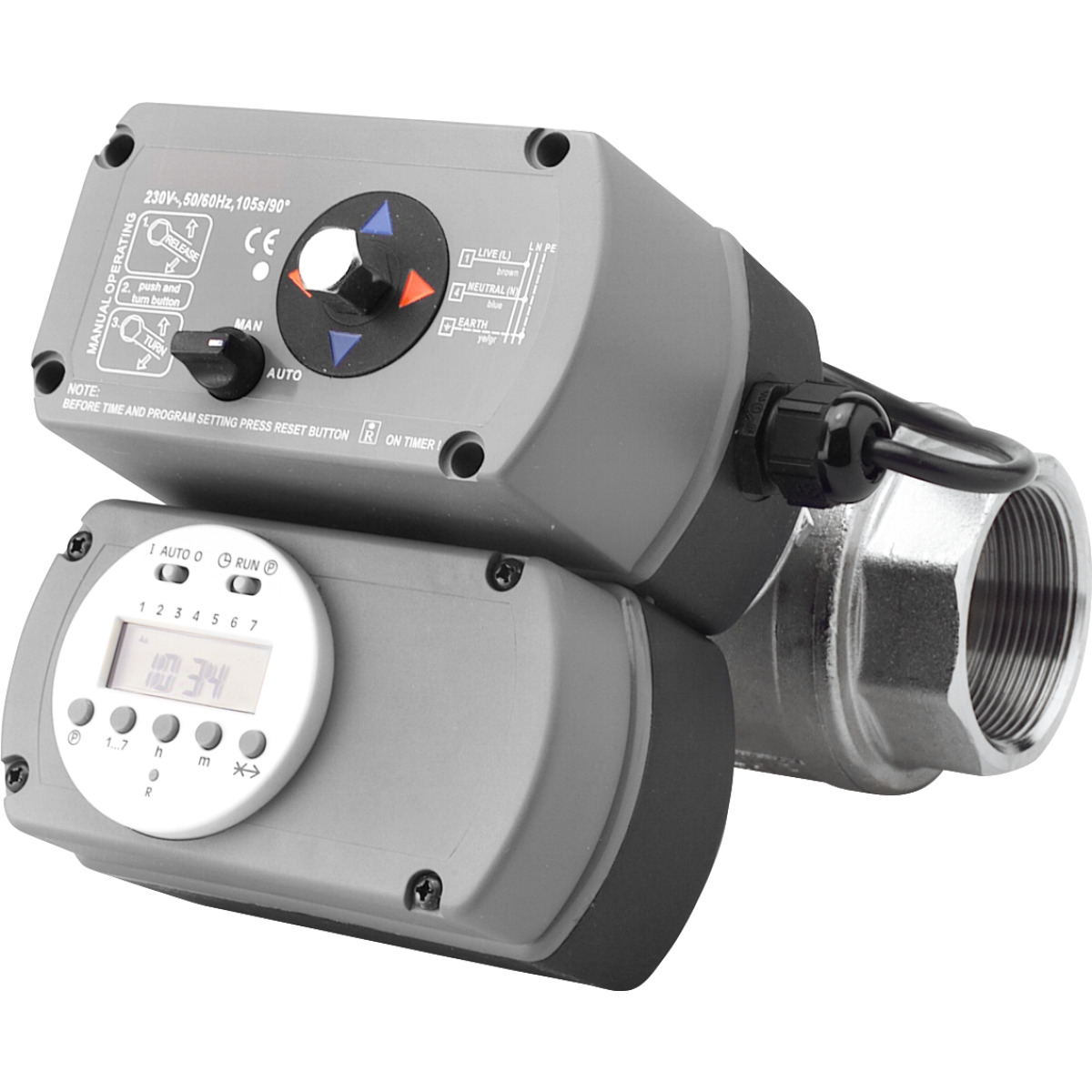

Compressed air energy saver Compressed air energy saver G2, connection: IG 2 "

• Locks off the compressed air tank from the rest of the air network after the end of the working day, compressed air content in the tank is retained
• Opens automatically at the beginning of the shift and closes at the end of the shift
• Multiple layers adjustable daily - thanks to microprocessor control and 7-day program
• Slow 90 ° ball rotation in 30 seconds at G1 or 105 seconds at G2 avoids pressure shock when opening and closing
• With FPM seals and stainless steel ball
• Brass nickel-plated valve body
• 24 hours timer display
• Operating temperature: 0 ° C to + 60 ° C
• Operating voltage: 115 V or 240 V AC / DC 50/60 Hz
• Power consumption: 7 W during cycle switching
• Max. Temperature: 50 ° C ambient temperature, 100 ° C medium temperature
• Pressure range: 0 to 16 bar
• Protection class: IP 54

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
