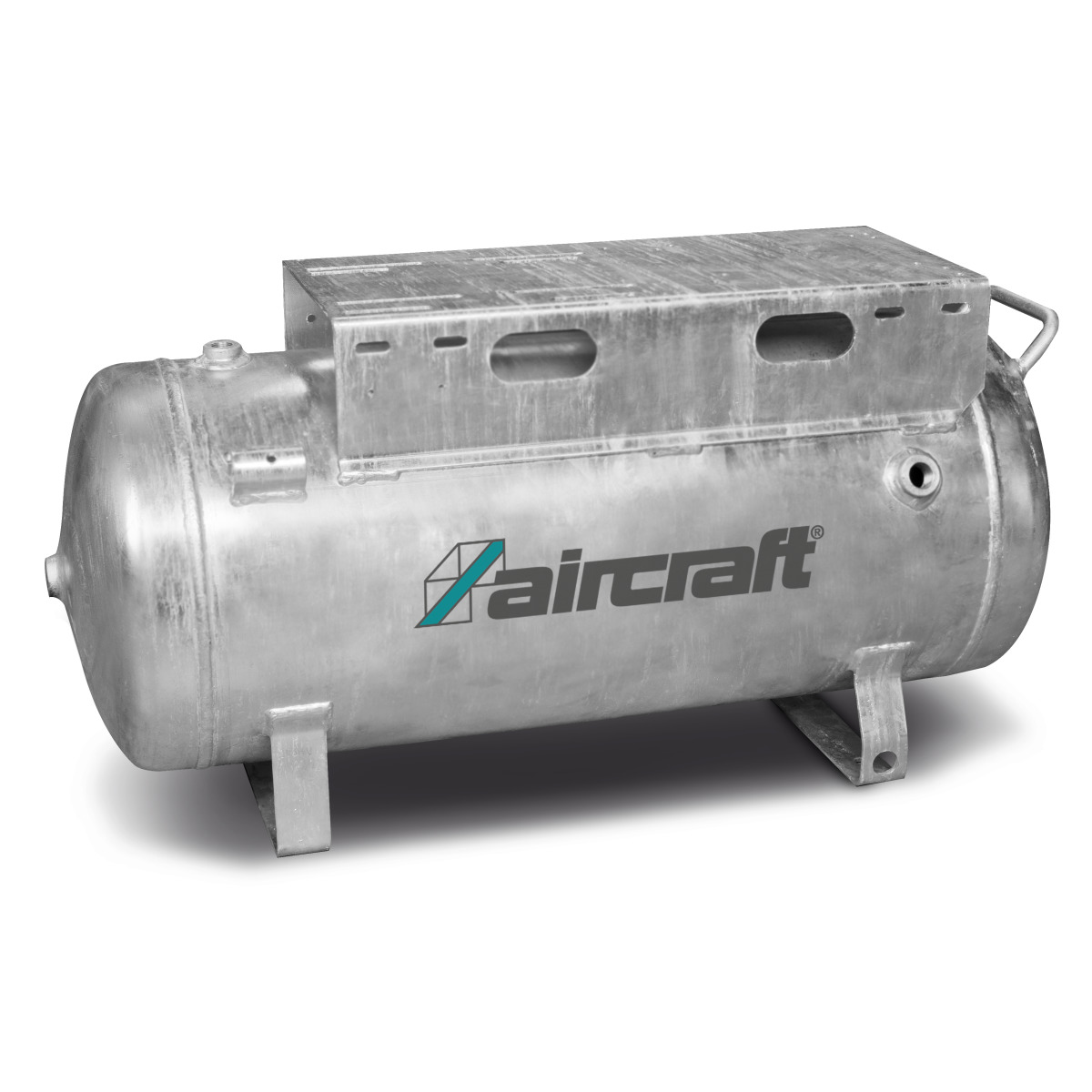

Compressed air tank M ACDB 100/10 H MK with console

• Maximum, robust equipment and best quality at a reasonable price
• Fully automatic on-off operation
• With all safety devices
• Fully wired

Quality electric motor

• Quality electric motor with high torque is equipped with a motor protection switch
• Start-up capacitor and start-up relief valve ensure easy start-up
• As standard with phase inverter for easy manual reversal of the direction of rotation

Compressed air compression via high-performance aggregate HOS

• The start-up relief valve ensures a light and pressure-free start
• High-performance unit made of gray cast iron and the low speed guarantee particularly quiet, low-vibration operation and a long service life
• This ensures an even longer life due to even less wear
• High-quality compressor with optimum lubrication for a long service life and high reliability
• Equipped with high quality suction filter
• The aftercooler with large cooling fins ensures a low boiler inlet temperature and thus less moisture in the compressed air, which protects the compressed air tools
• In addition with intercooler to the aftercooler
• Corrosion-free valve plates for improved heat dissipation and longevity of the compressor
• The large fan wheel and a cooling air baffle on the cylinder ensure optimum cooling of the compressor
• A sturdy belt guard made of metal ensures optimum protection of the components and high user safety
• Compressed air supply into the boiler via flexible armored hose line with heat protection prevents vibration fracture

High quality drive belt

• Powerful and economical drive
• The toothed drive belt facilitates start-up, improves smoothness and power transmission and reduces the Power consumption up to 30%
• Stable belt guard made of metal

Operation at the maintenance block

• Equipped with a high-quality CONDOR pressure switch MDR 5 with robust push button function for fully automatic on-off operation
• Filter pressure regulator for stepless adjustment of the working pressure, with simultaneous dirt, oil and condensation separation
• Two large pressure gauges indicate the tank and working pressure
• Air extraction at the maintenance block via a comfort safety quick coupling
• Only fixed screw connections at the maintenance block, no hose connections

Two compressed air supply points

• A compressed air extraction point for filtered compressed air
• A compressed air extraction point via direct outlet on the boiler with ball valve

Comfort safety clutch - the advantages.

• Comfort safety couplings from AIRCRAFT are the first manufacturer to be used as standard
• Two separate locking systems for maximum work safety
• Dangerous flogging of the hose is prevented

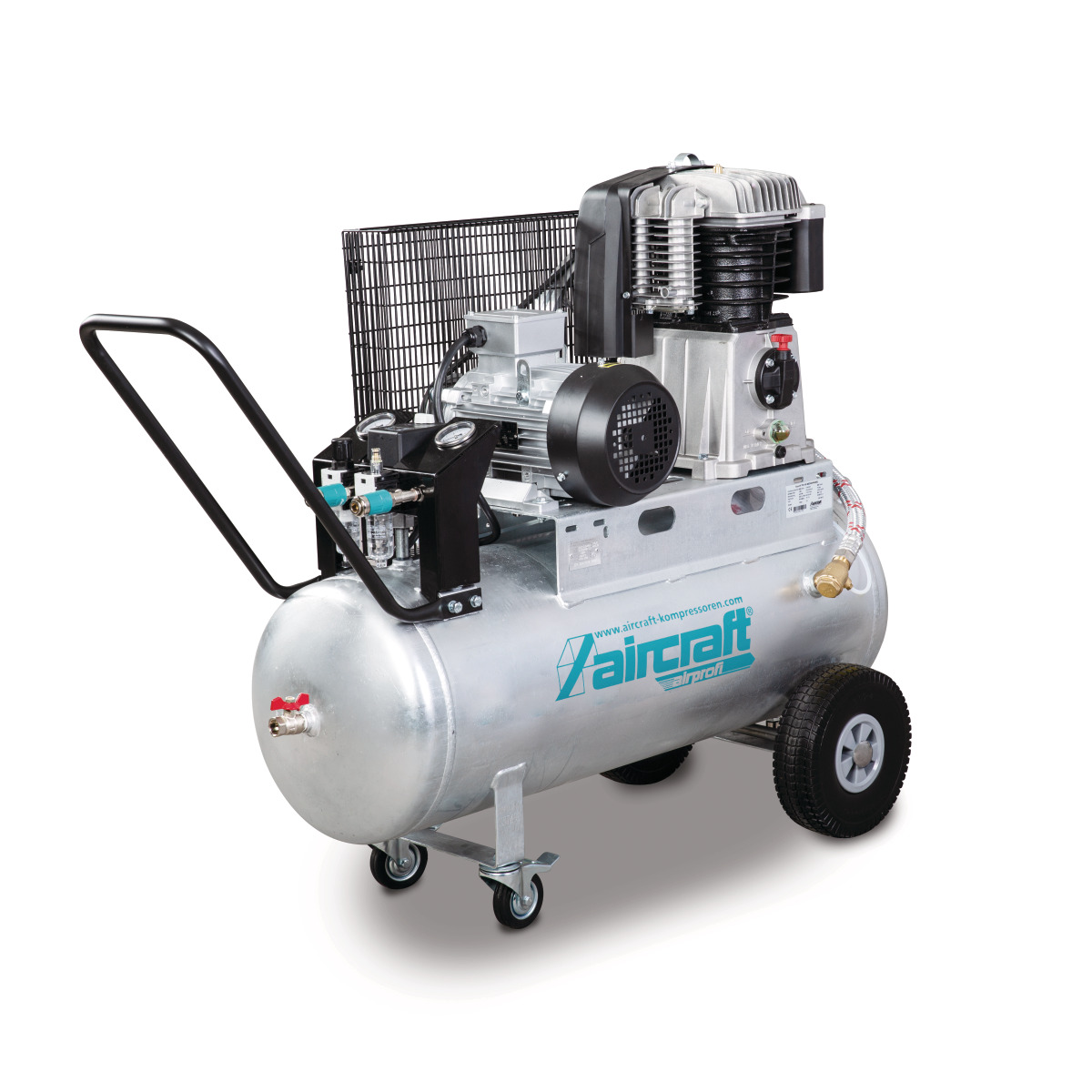

Comfortable and safe to transport and set up

• Ergonomically extended handle for easy transport in a nearly upright position - stress on the back by lifting is avoided
• Puncture-proof PU foam wheels and stable steering gear with parking brake enable easy transport
• The parking brake prevents rotation and rolling of the wheels and ensures an optimal level of the compressor
• With practical second transport handle on the boiler, with which the carrying of the compressor is facilitated

High-quality boiler with durable rust protection

• AIRCRAFT is the first manufacturer to equip the compressors of the AIRPROFI series as standard with internally and externally hot-dip galvanized boilers
• The AIRPROFI series boilers therefore come with a 15-year rust-proof warranty.

• The two-stage compression 2-cylinder high-performance unit enables a very low speed, resulting in a particularly quiet and low-vibration run
• Large fan ensures optimal cooling
• Intercooler and aftercooler ensure a low container inlet temperature and thus reduce condensation
• High quality electric motor with high torque
• Electric motor equipped with motor protection switch
• Fifteen-year rust-through warranty on inside and outside hot-dip galvanized compressed air tank
• Flexible armored hose line with heat protection prevents vibration breakage
• High-quality CONDOR pressure switch as standard
• From 7.5 kW as standard with star-delta switch with operating hours counter
• Ready for connection with all fittings

• Refrigerated dryer with integrated automatic steam trap for dry compressed air, longer service life of compressed air tools and avoidance of disturbances in pneumatic controls
• Fine filter for separating condensate and solid impurities with particles up to 1 μ in front of the refrigeration dryer

Equipment

• Automatic steam trap on the compressed air tank
• No unnecessary pressure loss


• Condensate conditioner for oil-water separation
• Important notes on condensate treatment can also be found in the section on compressed air preparation.


• Fine filter for separating condensate and solid impurities with particles up to 1 μm
• Compressed air quality according to ISO 8573-1
• As a pre-filter in front of the refrigeration dryer


• Refrigerated dryer with integrated automatic steam trap
• Pressure dew point at 5 °C, ambient temperature 25 °C, atmospheric dew point at -22 °C
