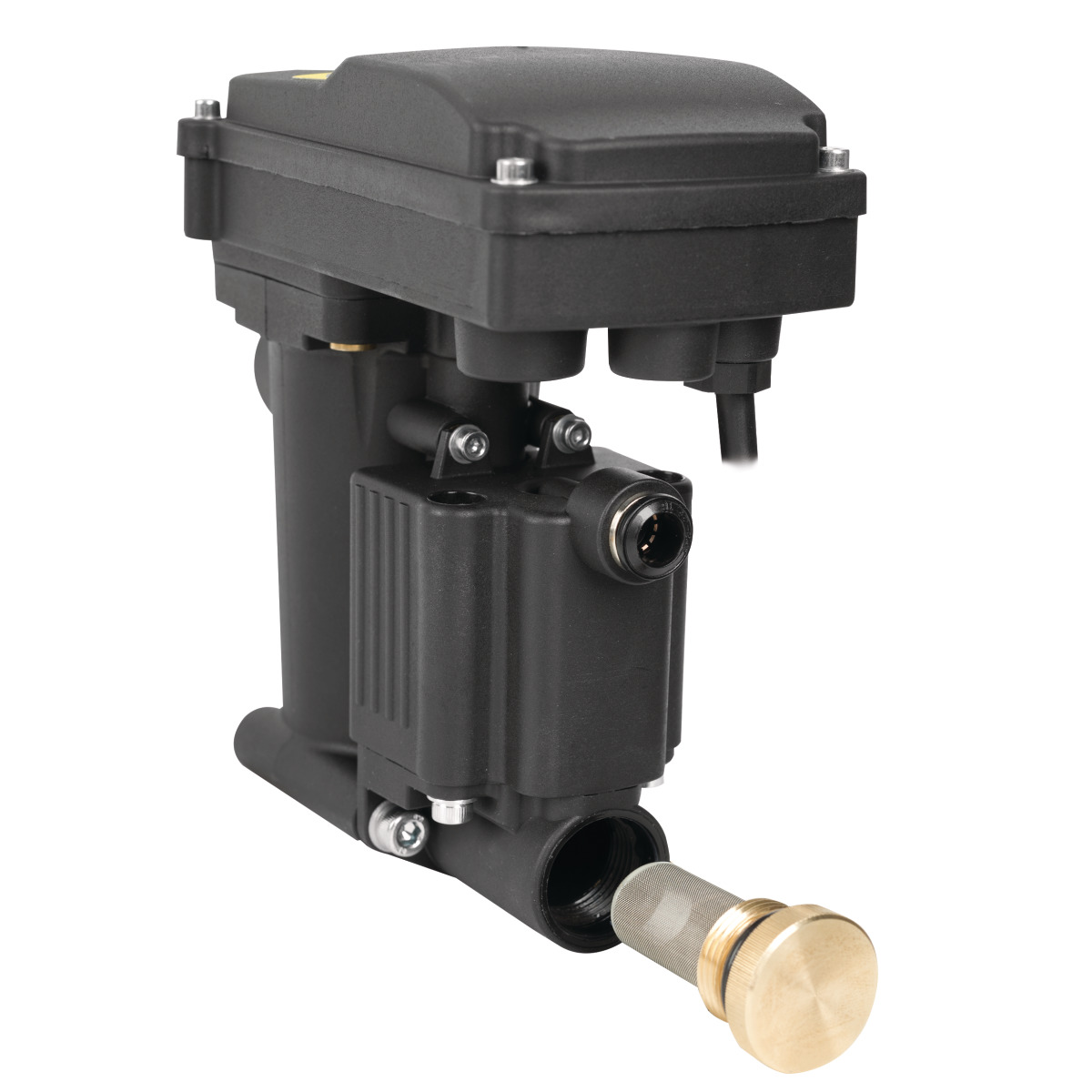

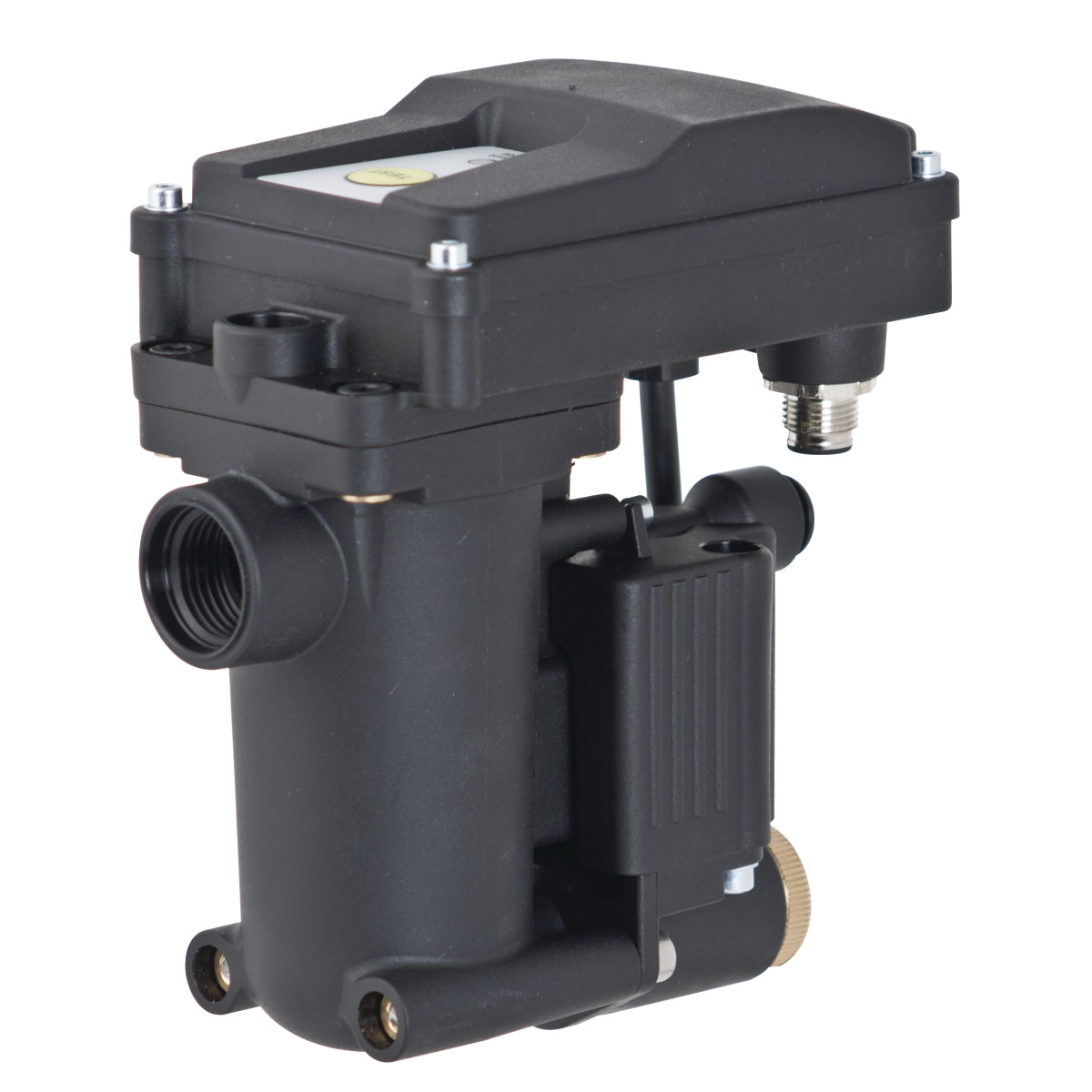

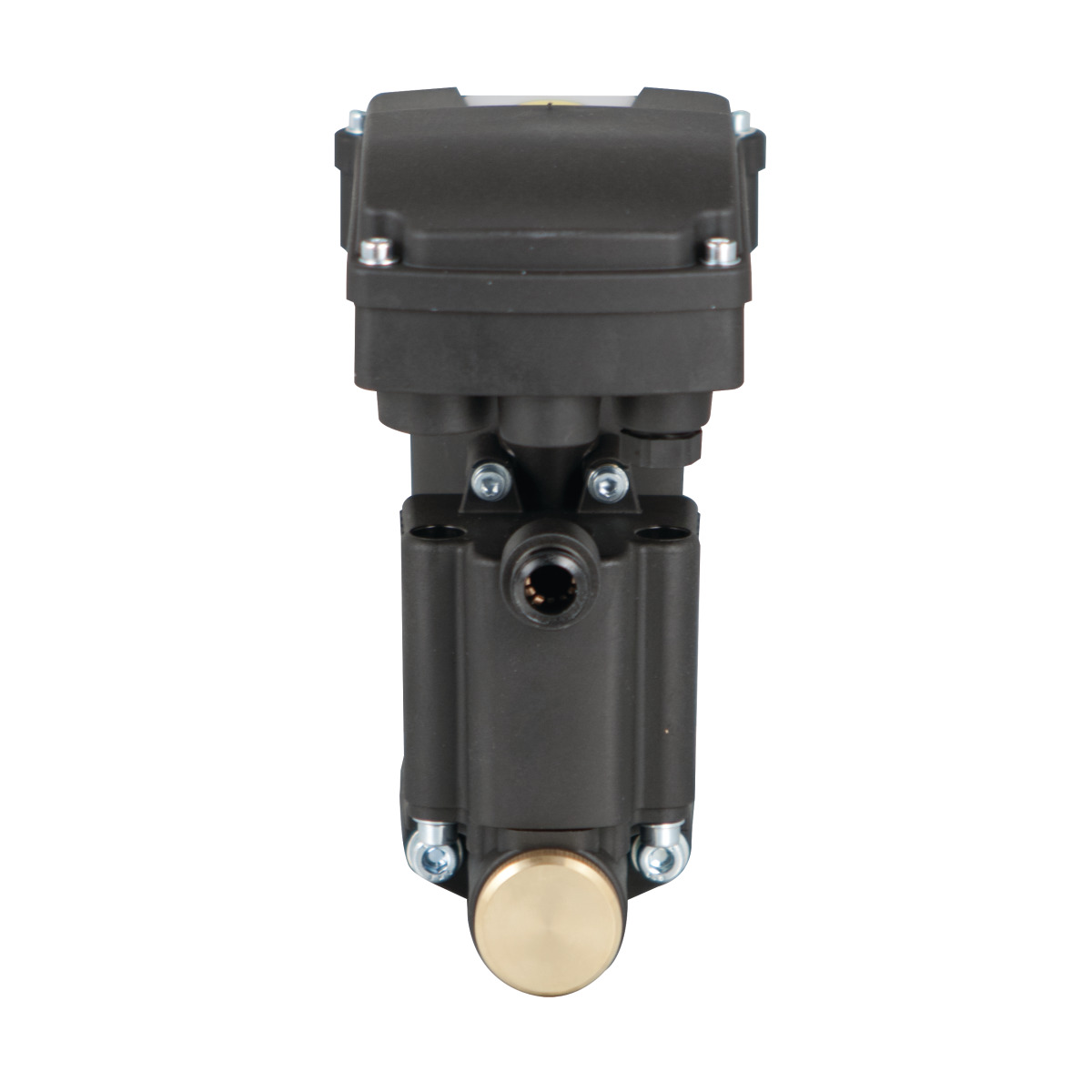

Condensate drain (electronic) AMD

SKU: 52-2059080

Tootjakood: 2059080

EAN: 9006248017054

For fully automatic removal of condensate or other non-aggressive fluids from the compressed air system
A capacitive sensor detects the level of the condensate. This is very accurate and requires no mechanical floats and contacts.
For installation as external arresters on reciprocating or screw compressors, aftercoolers, cyclone separators, compressed air boilers, compressed air dryers and compressed air filters
Equipped as standard with a factory alarm, LED indicator, test button and integrated sieve
On request also version with service network for setting the diagnostic parameters and an alarm output available

function Description

The condensate is collected in the collection reservoir.
If the level is high enough, the condensate is discharged from the system without loss of air
Liquid level is detected by a precise capacitive liquid level sensor
The special self-cleaning, direct-acting valve ensures reliable operation

The advantages at a glance

Integrated sieve (easy access / cleaning)
Compact design
Patented valve technology - direct acting, self-cleaning valve
Optimized for easy service (maintenance kit)
Horizontal or vertical installation possible
Robust PA housing
Including 2 meters connection cable with Schuko plug

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

Täishind: 160,21€

Hind: 144,52€

Kogus:

i h

Saadavus: Laos

Hankija ladu

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

0.8

Tehnilised näitajad

Töötemperatuur

1.5 - 65

Kauba info

Netokaal

0.55

Brutokaal

0.8

Ees- ja perekonnanimi *

Teie e-post *

Päring *
