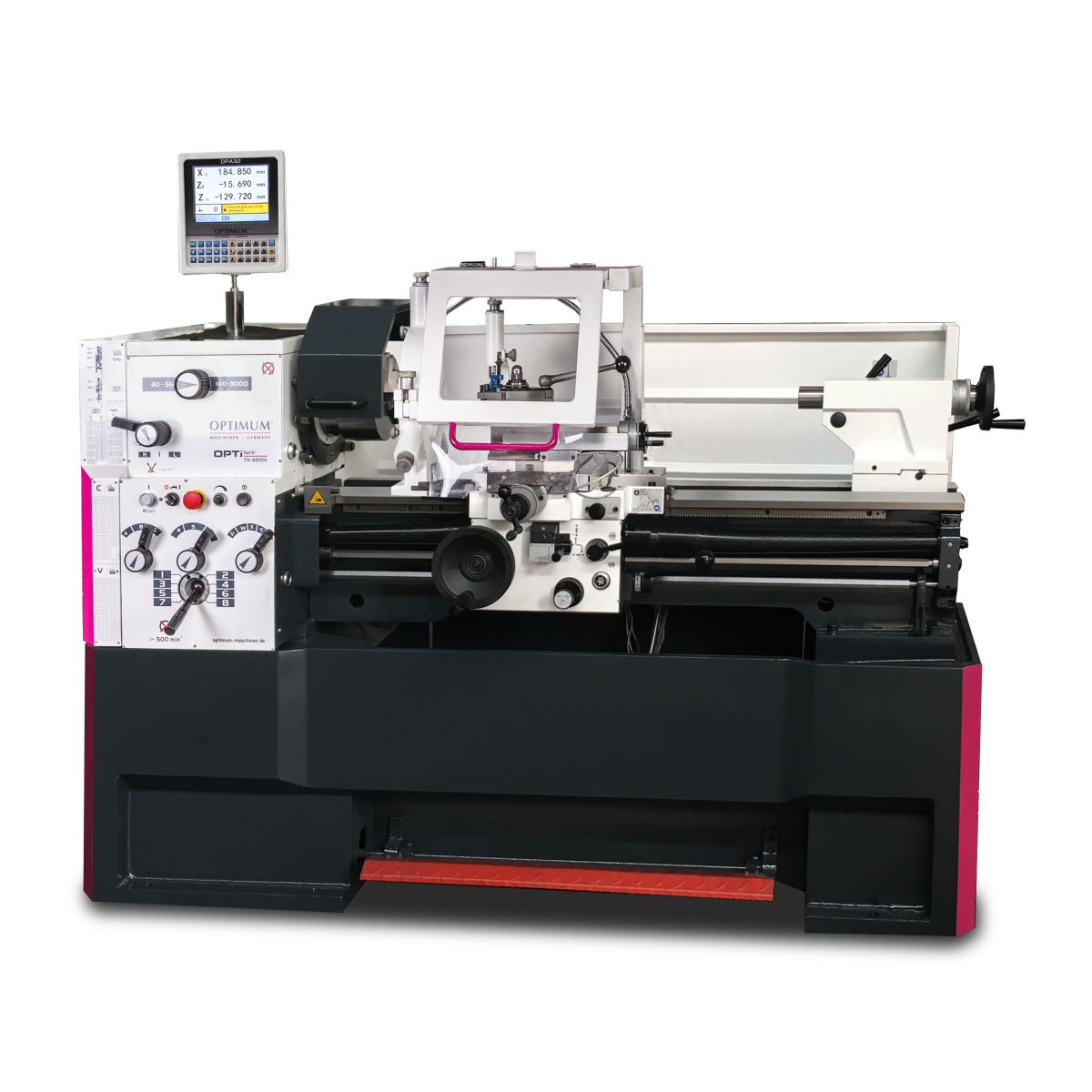

Conventional Centre Lathe OPTIturn TH 4210V

SKU: 51-3462060

Tootjakood: 3462060

EAN: 4030635033292

Hardened and ground Z-axis guideway
Spindle mount Camlock DIN ISO 702-2 No. 6
Precisely crafted sled
Handwheels with adjustable fine scale 0.04 / 0.02 mm
All guides can be adjusted by wedge strips
Adjustment range upper slide ± 90 °
Guaranteed concentricity of the spindle nose better than 0.015 mm
Main spindle running in oil bath
Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
Handwheels decoupled and tested according to EN 23125
Two-channel right-left switch tested to EN 23125
Switch with life cycle calculation, tested according to EN ISO 13849
All metric pitches in the range of 0.2 to 14 mm / rev and all inch threads in the range of 72 - 2 pitch per inch are adjustable without change of the change gears by lever in the control panel
Right / left rotation on bed carriage via switching spindle switchable
Central lubrication in the bed slide
Substructure and machine bed made of casted Meehanite cast in one piece
leading spindle
Emergency stop device with foot control
Safety handwheels with release function in the X and Z axis
Tailstock for taper turning ± 10 mm adjustable
Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
Fast, easy and tool-free adjustment by means of a clamping lever
Strongly ribbed prism bed, induction hardened and precision ground from gray cast iron
Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
LED machine lamp in chip protection

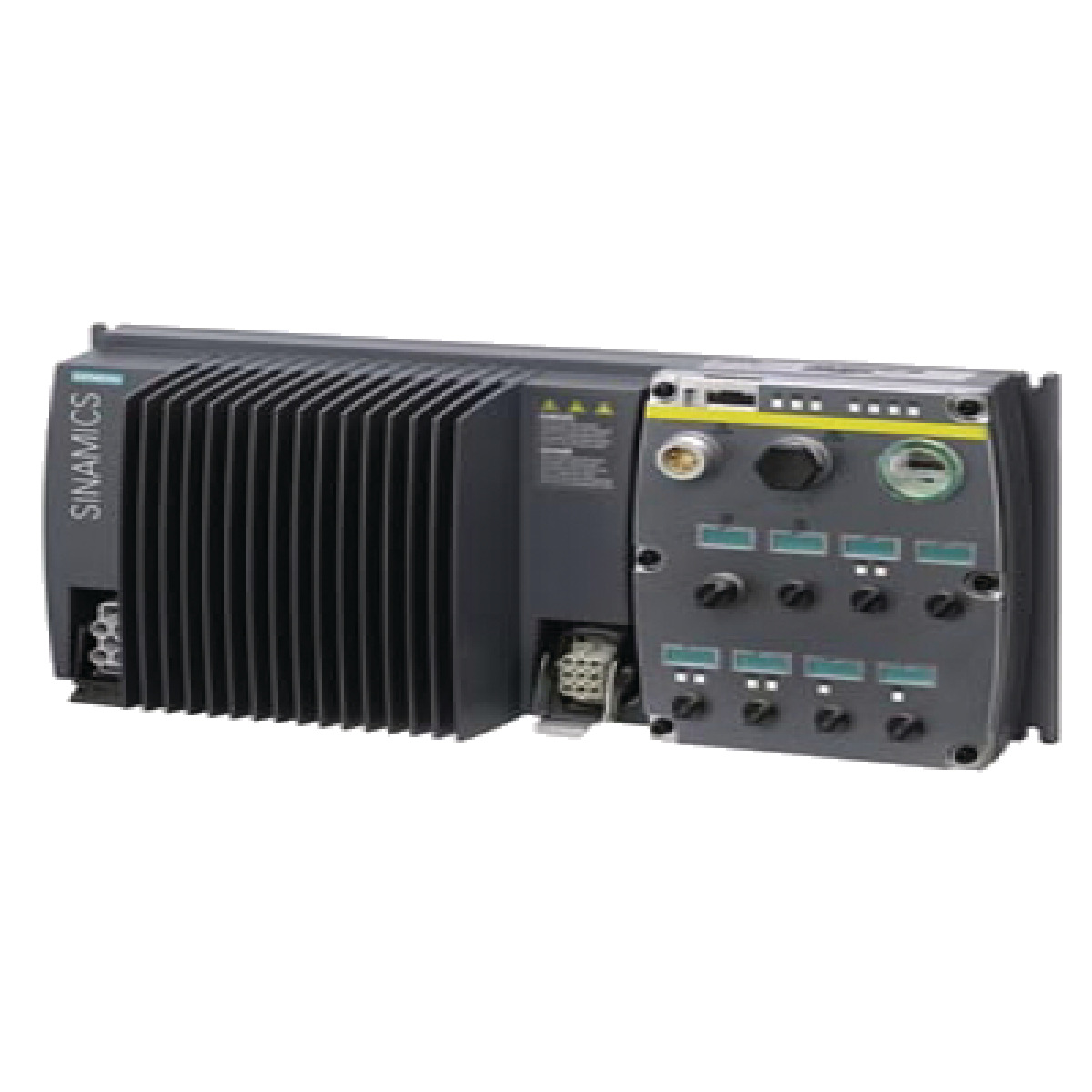

Siemens Sinamics Frequency Inverter / Safety Integrated
Quick change steel holder 5-B
Steel holder 20 x 100 type D for square chisel 18 mm

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Täishind: 29122,85€

Hind: 26270,62€

Kogus:

i h

Saadavus: Laos

Hankija ladu

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

1350 kg

Kauba info

Netokaal

1162 kg

Brutokaal

1350 kg
