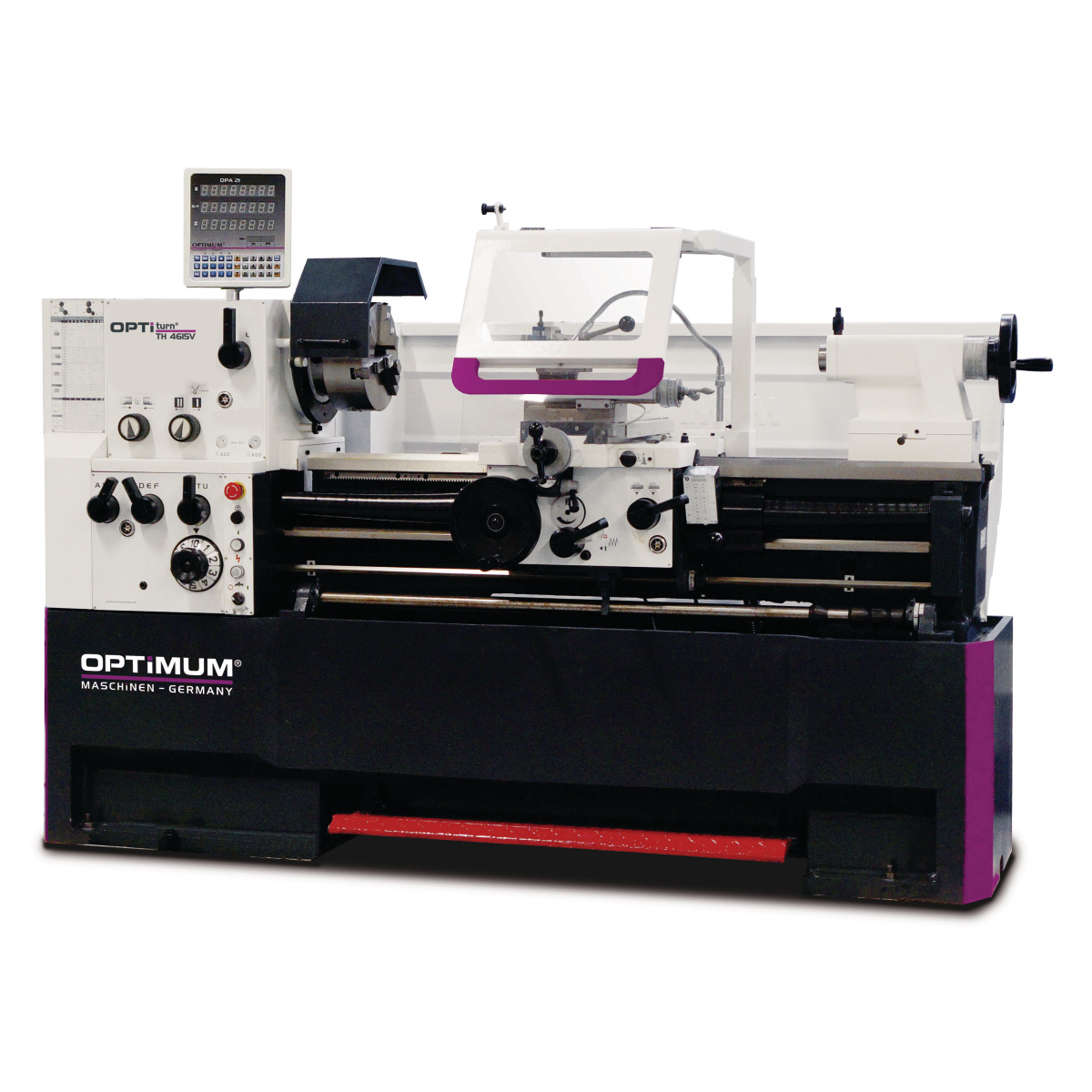

Conventional Centre Lathe OPTIturn TH 4615V

SKU: 51-3462125

Tootjakood: 3462125

EAN: 4030635029950

Hardened and ground Z-axis guideway
Guaranteed concentricity of the spindle nose ≤ 0.015 mm
Shafts, Wheels and main spindle run in an oil bath
Lead screw cover
Precisely machined slide
All guides can be adjusted using wedge strips
Mechanical longitudinal feed cut-off of the bed slide with four adjustable eccentrics
Right-hand/left-hand travel on the bed slideright/left rotation on the bed slide switchable via switching spindle
Two-channel safety electronics
Central lubrication in the bed slide
Adjustment range top slide ± 90°
Smooth-running gear wheels, hardened and ground with 2 adjustable precision tapered roller bearings
Switch with life cycle calculation, tested according to EN ISO 13849
Large dimensioned chip guard with integrated LED machine lamp
Handwheels with adjustable fine scaling 0,04 / 0.02 mm
Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes
High-speed feed gearbox in closed design, gears and shafts hardened and ground, running in an oil bath in precision bearings
Adjustable scale of the thread gauge
Tailstock for taper turning adjustable ± 10 mm
Tailstock quill and handwheel with adjustable fine scaling 0,025 mm
Quick, easy and tool-free adjustment of the tailstock using a clamping lever
Cable routing via energy chain
Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron
Coolant device with separate coolant tank with level indicator and oil separator; Easy and complete emptying and cleaning in accordance with DIN
Emergency stop device with foot actuation
Quick-change steel holder 5-B included in scope of delivery
Steel holder 25 x 120 type D for square chisel 20 mm included in scope of delivery
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Täishind: 39189,10€

Hind: 35351,00€

Kogus:

i h

Saadavus: Laos

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

2115 kg

Kauba info

Netokaal

2020 kg

Brutokaal

2115 kg

Ees- ja perekonnanimi *

Teie e-post *

Päring *

Sarnased tooted

Metallitreipink 2,1kW, 400V, digi

44-HED1000GDIG-400V

Ideaalne kasutamiseks sektorites, mis vajavad mitmekülgsust.
Erakordselt lai spindli ava (Ø52mm) suurte võlli läbimõõtude töötlemiseks.
Elektromagnetiline jalapidur tagab maksimaalse tööohutuse ja vähendab olulisel määral mitteproduktiivset aega.
Eemaldatav sild võimaldab kuni 474 mm läbimõõduga toorikute töötlemist.
Hammasrattad ja spindlid on karastatud.
Kiiruselihtne ja kiire vahetamine.
Suur digitaalne ekraanhõlpsaks kasutamiseks.

Võimsus: 2100W
Pinge: 400 V
Spindli kiirus: 70-1900 p/min
Spindli ava: 52 mm
Kelgu käik: 810 mm
Tsentrite vaheline kaugus: 1000 mm
Kaal: 630 kg

10180,80€ 11312,00€

On request in 4-6 weeks

Metallitreipink 1,5kW, 400V

44-HED1000N-400V

Ideaalne lukkseppadele, töötubade ja koolide jaoks.
Pöörlemiskiiruse lihtne ja kiire vahetamine hammasratta kaudu. Induktsioonkarastatud ja täppismalmist alus.
Eemaldatav sild võimaldab töödelda suuri detaile.
Karastatud peavõll tagab kõrge jooksutäpsuse.
Kergesti eemaldatavjuhtkruvi.

Võimsus: 1500W
Pinge: 400 V
Spindli kiirus: 65-1810 p/min
Spindli ava: 38 mm
Tsentrite vaheline kaugus: 1000 mm
Kaal: 530 kg

6543,90€ 7271,00€

On request in 4-6 weeks

Metallitreipink 560W, 230V

44-HED300ECO-230V

*võimsus: 2100W*pinge: 230V 50Hz*spindli kiirus: 50-2500 p/min*spindli ava: 20 mm*tsentrite vaheline kaugus: 300 mm*kaal: 40 kg

1162,80€ 1292,00€

On request in 4-6 weeks

Metallitreipink 630W, 230V

44-HED400FD-230V

*võimsus: 450/630W*pinge: 230V*tsentrite vahe: 400 mm*spindli pöörded: 50-2500 p/min*spindli ava: 21 mm*mõõdud: 940x380x345 mm*kaal: 68 kg

1599,30€ 1777,00€

On request in 4-6 weeks

Metallitreipink 1,0kW, 230V

44-HED750FD-230V

Vastupidavast malmist kindel treipink.Vedelkristallekraan. Kahe kapiga stend, kaasaegnedisain. Spindli ava 25mm, spindli koonus MT3.*võimsus: 1000W*pinge: 230 V*tsentrite vahe: 750 mm*tsentri kõrgus: 125 mm*spindli pöörded: 0-2500 p/min*spindli ava: 25 mm*mõõdud: 1355x560x1065 mm*kaal: 126 kg

3344,40€ 3716,00€

On request in 4-6 weeks

Viimati vaadatud

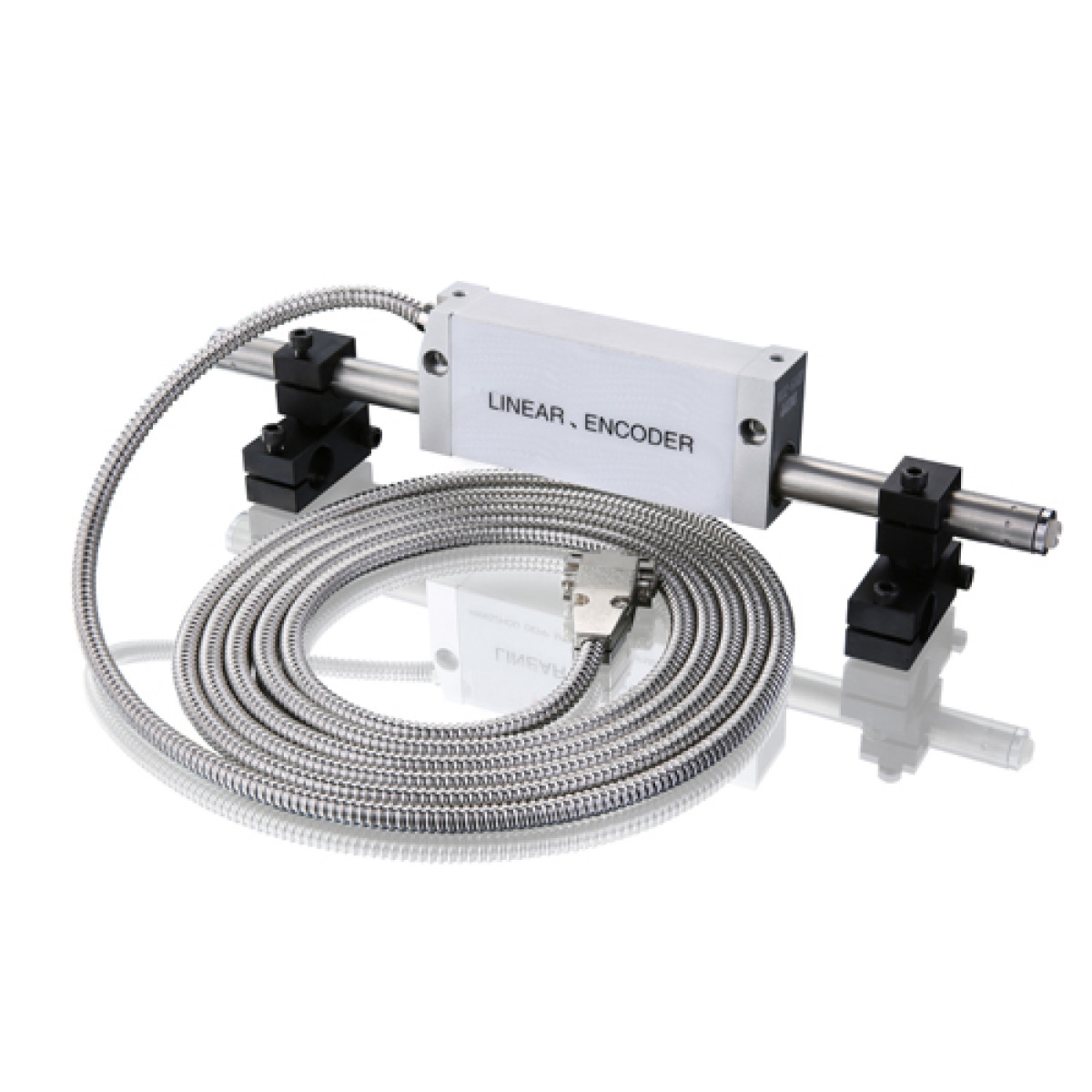

Measuring bar MSS31 - 762 mm

51-3384430

The electronic measuring components of the measuring strips are protected and sealed in the housing
Allows accurate and reliable measuring results even if the measuring system is installed in Öl or cooling liquids
Tolerant against vibrations and magnetic interference
Without mounting

Note: Adjustments may have to be made to the machine for mounting the measuring bars
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

608,60€ 674,68€

On request in weeks

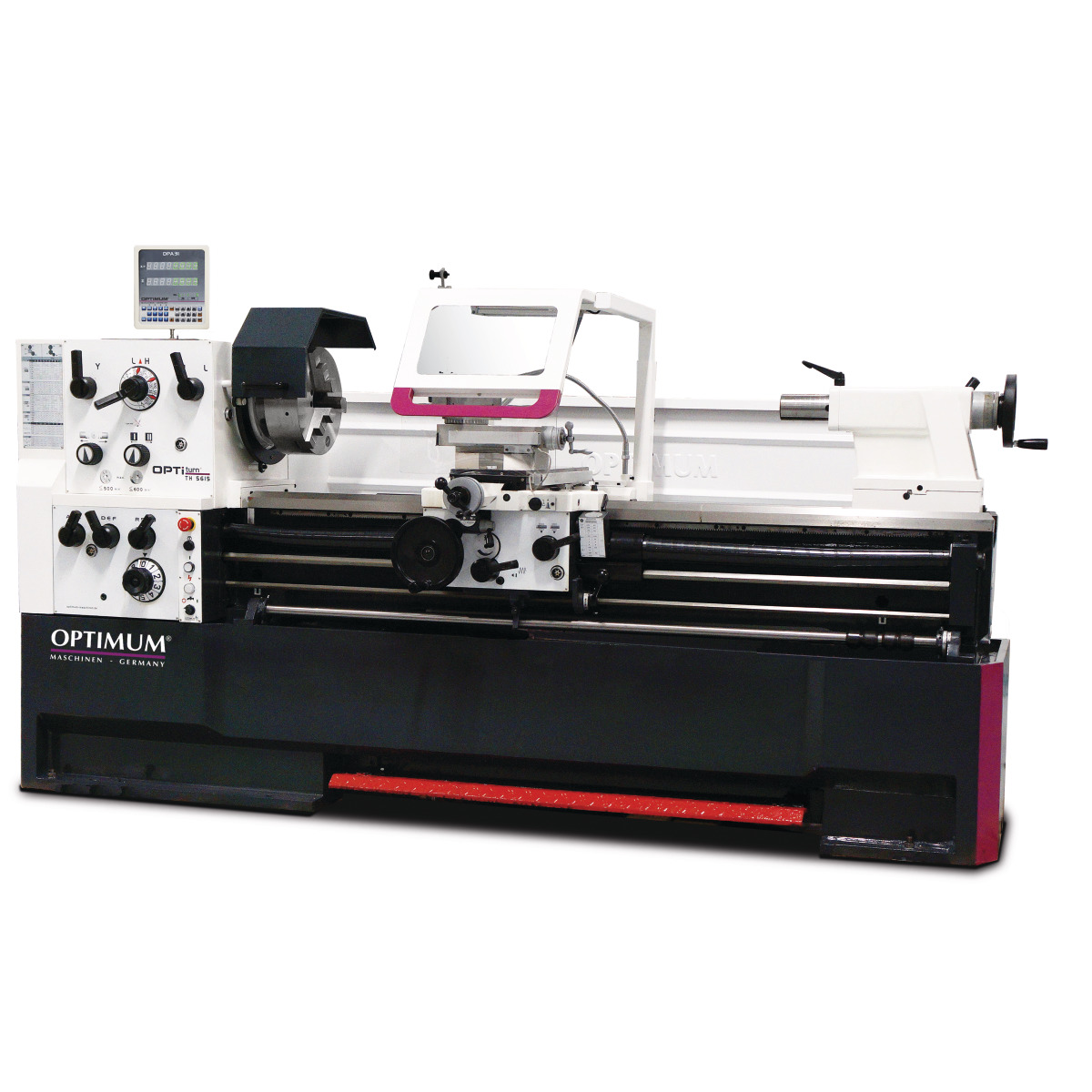

Conventional Centre Lathe OPTIturn TH 5620D
