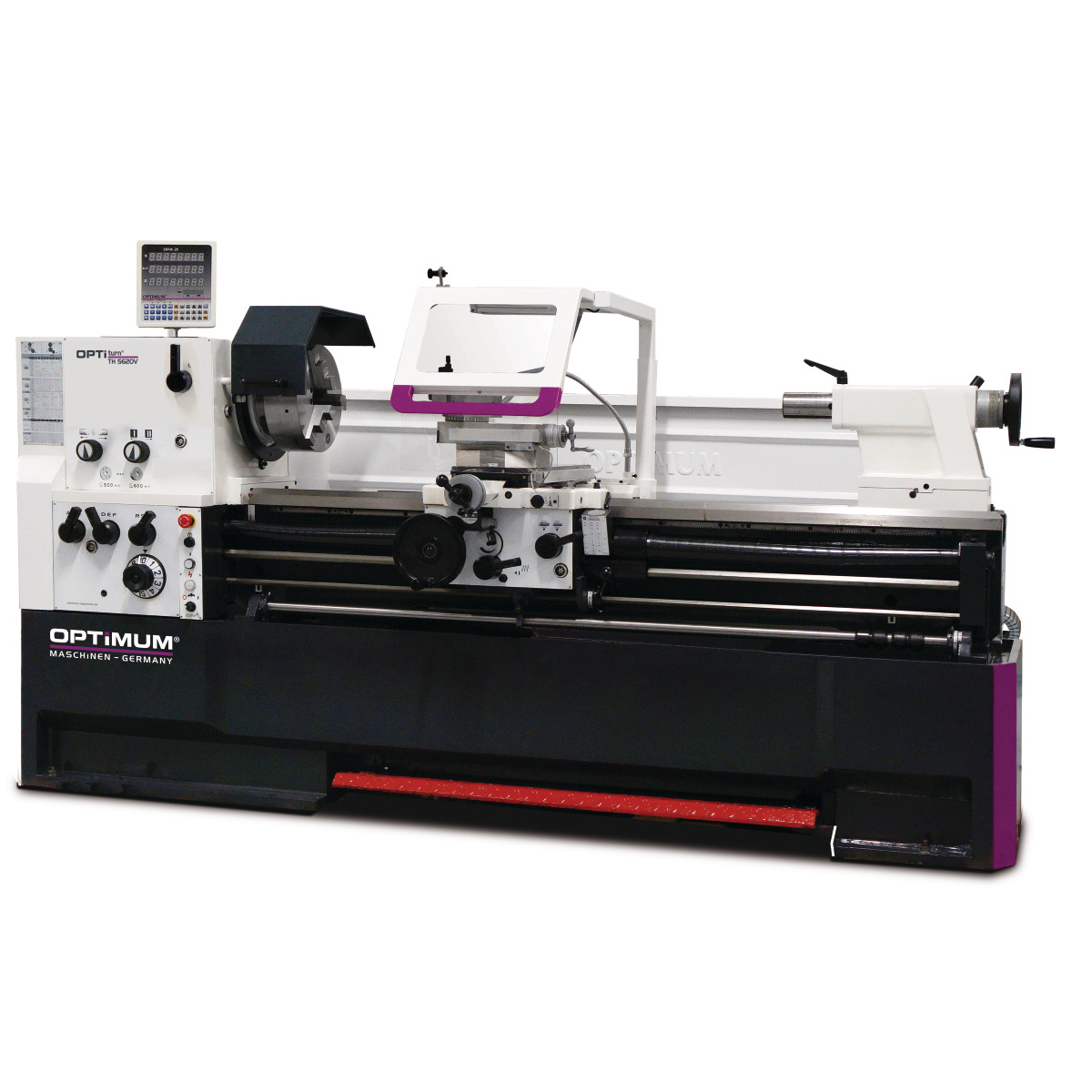

Conventional Centre Lathe OPTIturn TH 5620V

SKU: 51-3462175

Tootjakood: 3462175

EAN: 4030635029967

Hardened and ground Z-axis guideway
Guaranteed concentricity of the spindle nose ≤ 0.015 mm
Spindle holder Camlock DIN ISO 702-2 No. 8
Two gear stages
Spindle bore / bar passage Ø 105 mm

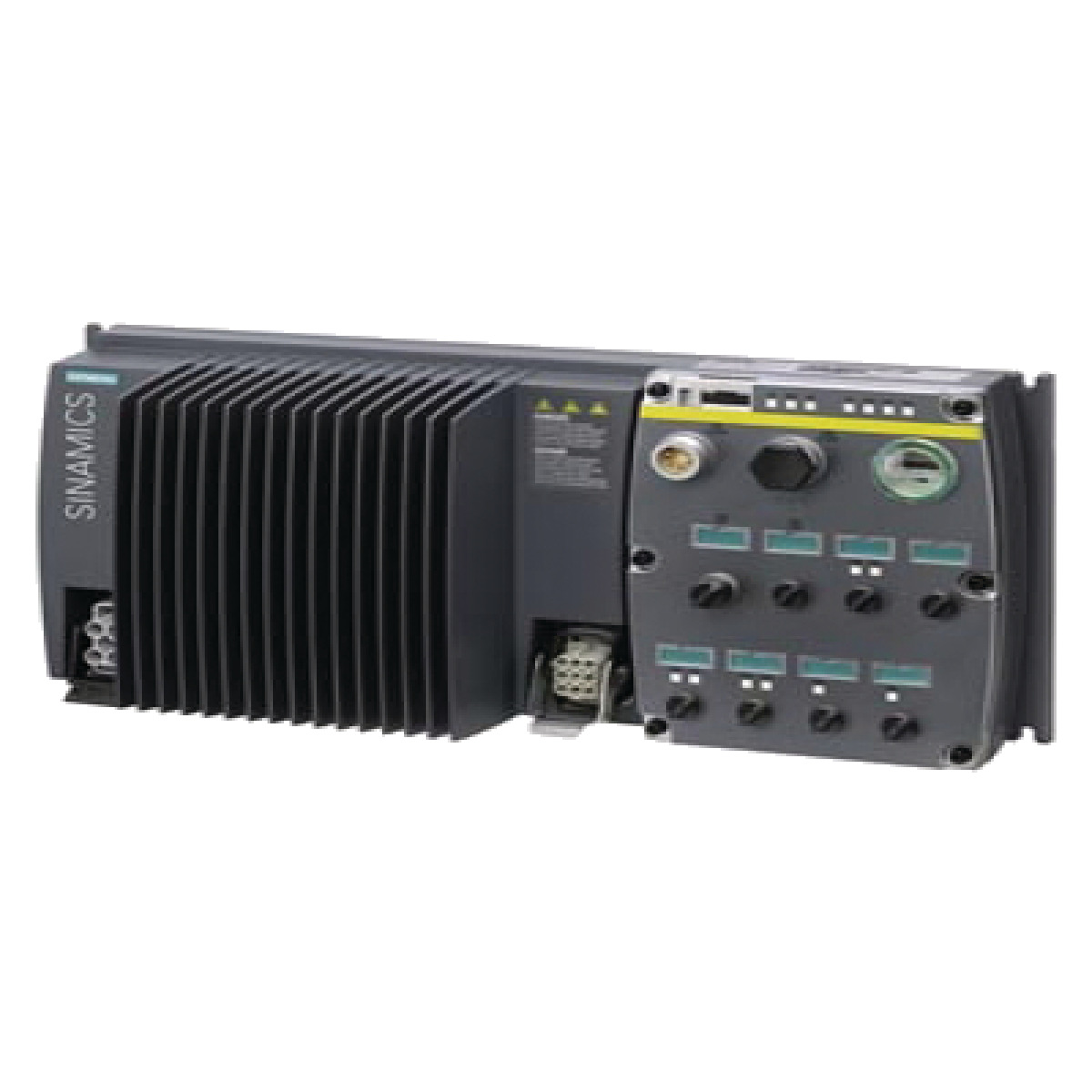

Siemens Sinamics frequency inverter / Safety Integrated
Lead screw cover
Precisely machined slide
All guides can be adjusted using wedge strips
Right/left rotation on bed slide switchable via switching spindle
Two-channel safety electronics
Central lubrication in the bed slide
Upper slide adjustment range ± 90
Gear wheels smooth-running, hardened, ground and mounted with 2 adjustable precision tapered roller bearings
Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings
Handwheels with adjustable fine scaling 0.04 / 0.02 mm
Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes
Clearly arranged selector lever for switching the feed speeds
Closed design of the quick-change feed gearbox
Switch with life cycle calculation, tested in accordance with EN ISO 13849
Emergency stop impact switch, motor protection switch, lockable main switch
Emergency stop device with foot actuation
Tailstock for taper turning ± 10 mm adjustable
Tailstock quill and handwheel with adjustable fine scaling 0.025 mm. Quick, easy and tool-free adjustment by means of clamping lever
Heavily ribbed prism bed, induction hardened and precision ground from gray cast iron
Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
LED machine lamp in the chip guard
Energy chain for gentle cable and hose routing
Adjustable scale on the thread gauge

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Täishind: 46926,70€

Hind: 42330,79€

Kogus:

i h

Saadavus: Laos

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

2980 kg

Kauba info

Netokaal

2560 kg

Brutokaal

2980 kg
