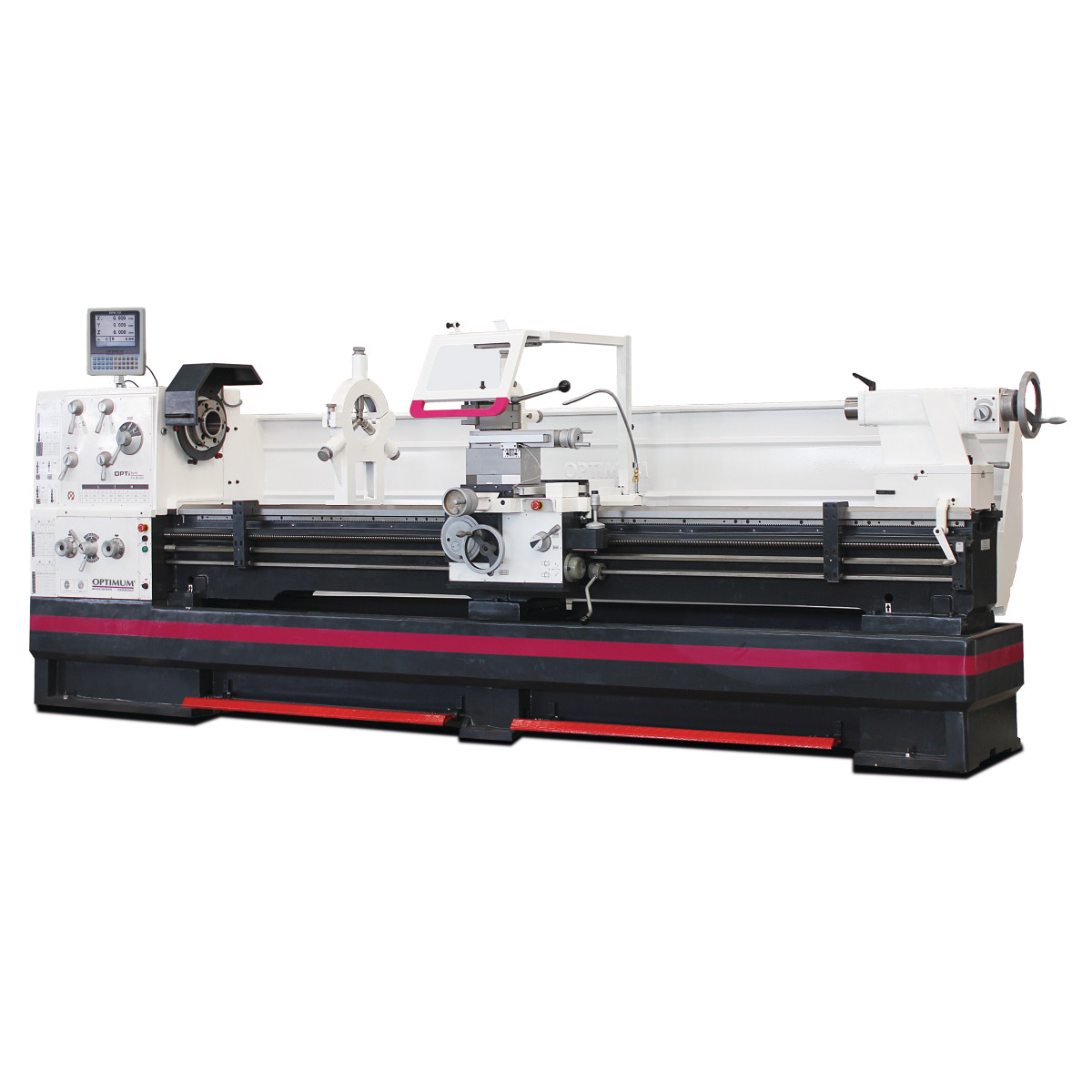

Conventional Centre Lathe OPTIturn TH 8030D

SKU: 51-3462240

Tootjakood: 3462240

EAN: 4030635035494

Hardened and ground Z-axis guideway
Guaranteed concentricity of the spindle nose better than 0.015 mm
Spindle holder Camlock DIN ISO 702-2 No. 8
Lead screw cover
Precisely machined slide
All guides can be adjusted using wedge strips
Right/left rotation on bed slide switchable via switching spindle
Two-channel safety electronics
Upper slide adjustment range ± 90
Smooth-running, hardened and ground gear wheels mounted on 2 adjustable precision tapered roller bearings
Clearly arranged selector lever for switching the feed speeds
Closed design of the high-speed feed gearbox
Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings
Handwheels decoupled and tested in accordance with EN 23125

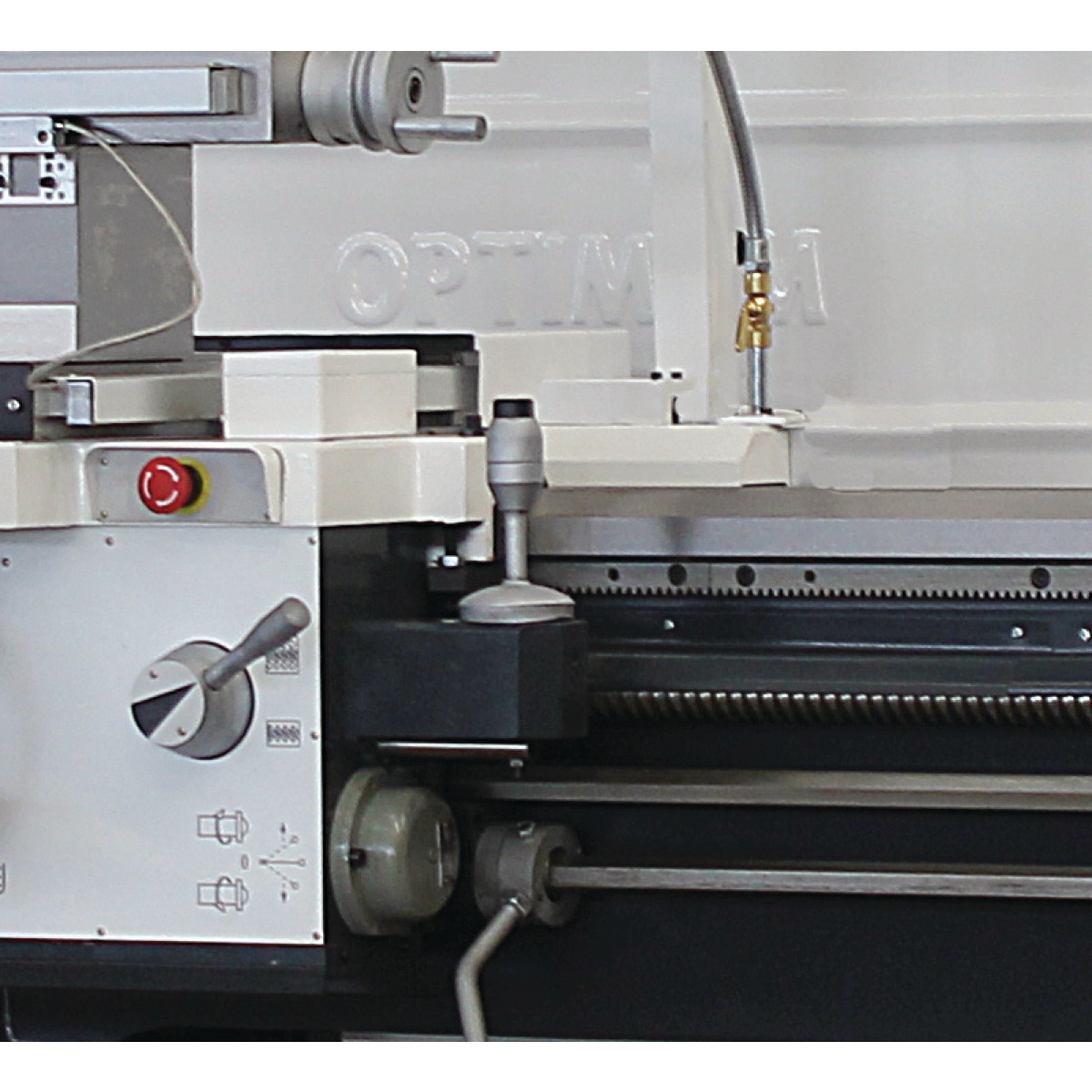

Safety handwheels with disengagement function in the X-axis
Handwheels with adjustable fine scaling 0.04 / 0.02 mm
Safety limit switch with positive opening contacts
Switch with life cycle calculation, tested in accordance with EN ISO 13849
Central lubrication in the bed slide
Emergency stop switch, motor protection switch, lockable main switch
LED machine lamp
Energy chain for gentle cable and hose routing
Emergency stop device with foot control
Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
Electric motor brake with quick emergency stop - quick stop without overrun during normal operation

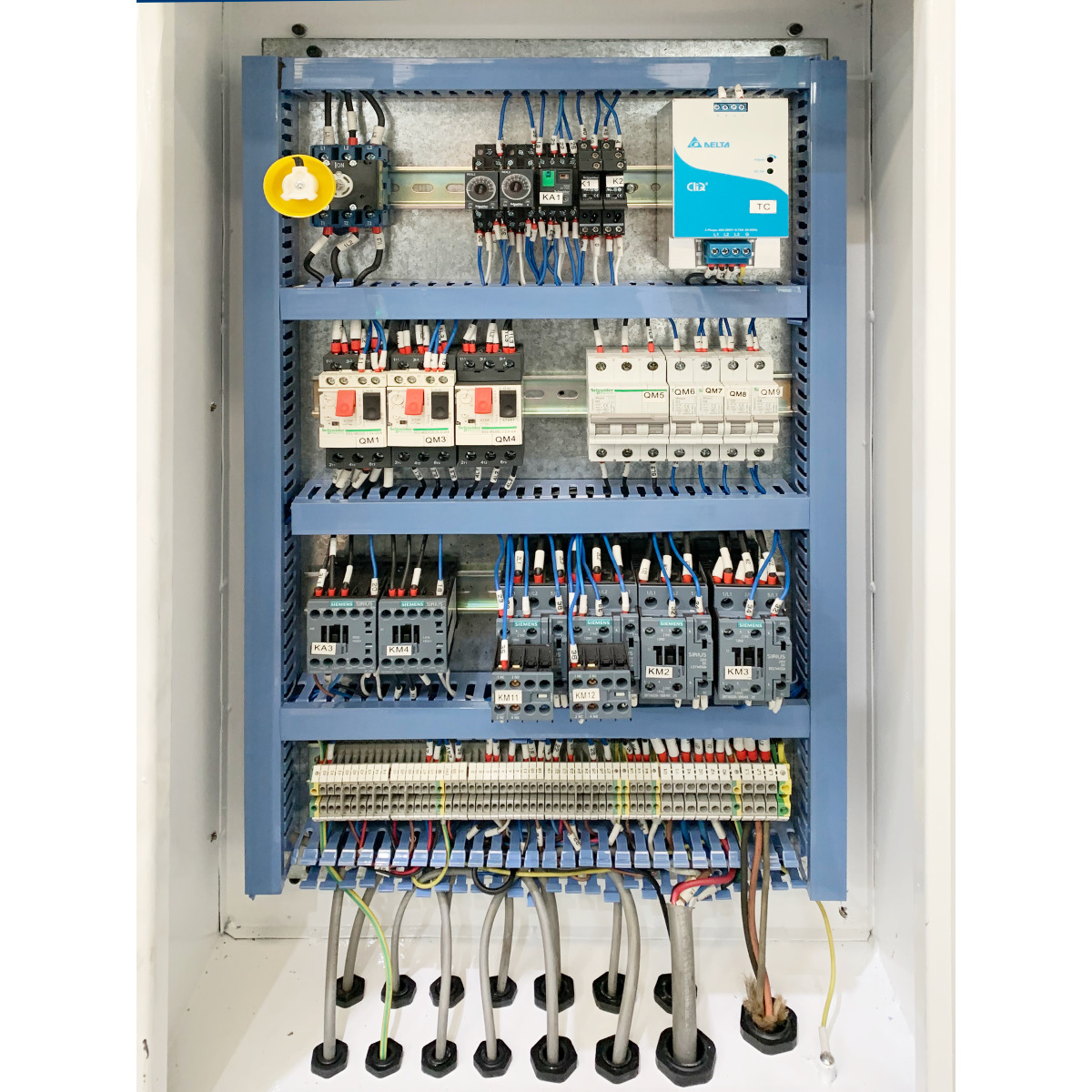

Electrical system with Siemens components
Quick-change steel holder SWH 9-D
1 steel holder 41 x 180 type D for square chisel 32 mm

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Täishind: 57523,53€

Hind: 51889,78€

Kogus:

i h

Saadavus: Laos

Hankija ladu

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

4480 kg

Kauba info

Netokaal

3820 kg

Brutokaal

4480 kg
