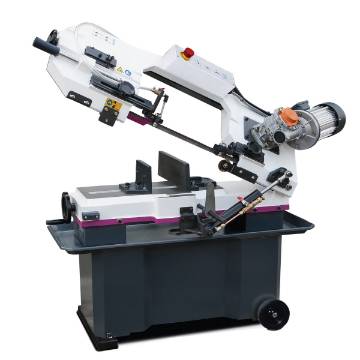

Gear metal band saw OPTIsaw SD 200V

• Quiet running
• Sturdy cast design
• Infinitely adjustable lowering of the saw arm via hydraulic cylinder with throttle valve
• Microswitch for automatic limit stop
• Easy-to-read scale for angle adjustment
• With high-quality bi-metal saw blade as standard
• Saw blade tension adjustable at the front via handwheel
• Ball bearing saw blade guide
• Robust machine base with large wheels and handy transport bracket for easy relocation of the machine
• Adjustable material stop for series production
• Safety switch for the saw blade cover
• Fully equipped, allowing the user to work productively immediately after commissioning

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

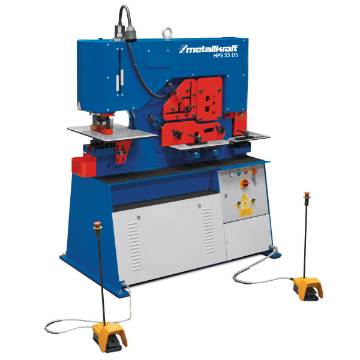

• Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
• DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
• Stepless adjustment of the stroke
• Larger reach for punching station with 620 mm optional, available from HPS 55DS
• Heavy and rigid welded construction
• Standard with notching knife starting from HPS 45S
• With powerful 400 Volt motor
• V-notching knife, oversized punching device and larger throat depth for punching station available on request
• Two-stage foot pedal for inching operation
• Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

• High time savings - cycle times
• No chips
• No cooling

Note:

• All hydraulic sectional shears are delivered with oil

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Semi-motor version - manual operation of the upper cheek, bending process motorised
• Designed for professional use
• With foot operation
• heavy, compact weldment
• With continuous sharp bending rail
• Standard with manual adjustment of the bending angle by means of nonius ring
• Particularly low-maintenance
• S-models with segmented top tools
• SH models with high, segmented goat foot tools
• Hardening of standard tools available on request: sharp bending rail and bending strip hardened, segmented tools and bending strip hardened, segmented goat foot tools and bending strip hardened
• Further swivel bending machines available on request

Quality Made in Europe
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Punching station, flat steel shears, angle steel shears, sectional steel shears, available with notching station starting from HPS 45S
• DS series with two working cylinders and two foot pedals for simultaneous use with punching station and sectional steel shears
• Stepless adjustment of the stroke
• Larger reach for punching station with 620 mm optional, available from HPS 55DS
• Heavy and rigid welded construction
• Standard with notching knife starting from HPS 45S
• With powerful 400 Volt motor
• V-notching knife, oversized punching device and larger throat depth for punching station available on request
• Two-stage foot pedal for inching operation
• Stamps and dies No. 1, No. 2, No. 3, No. 30, No. 45, No. 60 can be used with the standard delivery scope of the machine. Use of punch and die No. 4 and No. 80 optional (except HPS 40S)

Advantages of punching over drilling:

• High time savings - cycle times
• No chips
• No cooling

Note:

• All hydraulic sectional shears are delivered with oil

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Powerful and low-noise drive via LENZE gear motors with brake
• Compact, heavy-duty, stress-free welded steel design
• Acute bending rail made of tool steel C50 at the clamping beam
• Continuous, replaceable bed support made of tool steel C50
• Continuous bending rail made of tool steel C50 at the bending beam
• Clamping beam pressure controlled automatically via motor current absorption
• Clamping beam driven via generously dimensioned trapezoidal thread spindles
• Bending angle adjustment PT 1 via potentiometer on the machine’s front side (right)
• Manual granular adjustment of the bending beam with help of a scale
• Manual crowning via pressure screws in the bending beam
• Remote foot switch with emergency stop function
• All moving parts with low-maintenance bearings
• Electrical components by Schneider or Omron
• SH-models with high, segmented crowbar tools
• Stock equipment as standard with: hardened tools, control PT 1, back gauge 6-760mm with hand wheel, measuring device and stop fingers, quick clamping for top tool
• Quality Made in Europe
• Available on request: Models in DUO design featuring full-width acute bending rail and segmented crowbar tools

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
