Precision guide and drawbar turning machine OPTIturn TX 6222 - DPA 32

• Machine bed made of heavily ribbed cast iron
• One-piece machine base made of steel
• High rigidity of the headstock housing thanks to heavily ribbed 25GG casting
• All gear wheels of the feed gear made of hardened steel
• Shafts on needle bearings, all components are lubricated in an oil bath
• Hardened and ground face spindle ensures enormous accuracy and durability
• High chip removal during roughing is no problem thanks to the high cutting capacity
• Service-friendly removable rear panel
• Energy chain for gentle cable and hose guidance
• Lockable chip guard moves with the bed slide with integrated position indicator and coolant hose, can be moved manually
• Decoupled handwheels tested in accordance with EN 23125
• Two-channel right/left switch tested in accordance with EN 23125
• No change wheels necessary
• Switch with life cycle calculation tested in accordance with EN ISO 13849
• With safety device to prevent simultaneous operation of tapping and feed mechanism
• Bed guides hardened and precision ground
• Electronically braked motor
• Electronic feed cut-off of the Z-axis
• All electronic controls can be reached centrally
• Complete illumination of the work area
• External coolant tank with level indicator and oil separator
• Complete lead and feed spindle cover
• Electric position stop with quadruple position stop
• Three-jaw lathe chuck included as standard
• Quick-change steel holder SWH 7-C
• 1 steel holder 32 x 130 type D for square chisel 25 mm

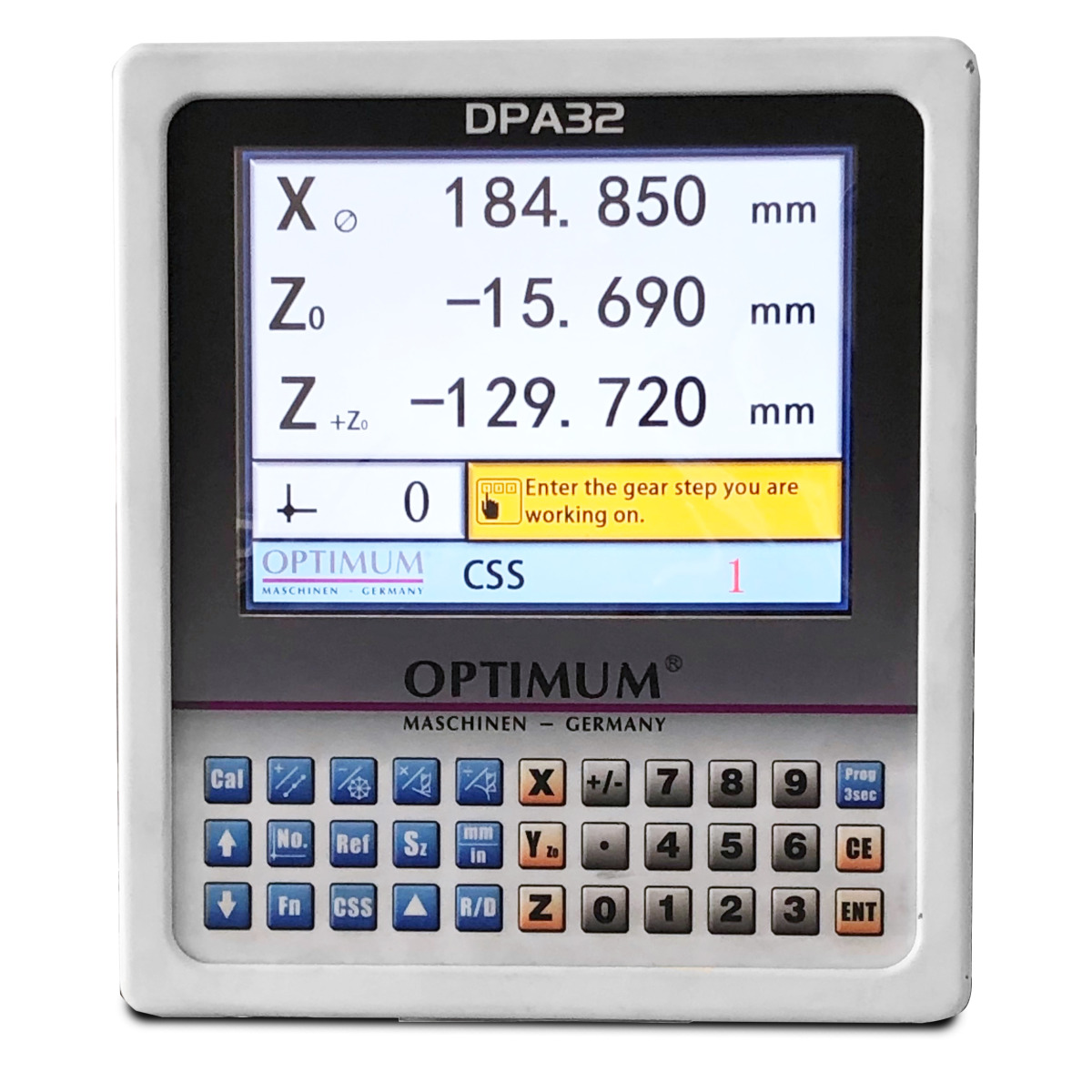

• Digital position indicator DPA 32-3

TX 5216

• Large spindle bore Ø 80 mm

TX 6222:

• Large spindle bore Ø 105 mm
