Precision guide and drawbar turning machine OPTIturn TX 6222V

SKU: 51-3432467

Tootjakood: 3432467

EAN: 4030635047534

Machine bed made of heavily ribbed cast iron
One-piece machine base made of steel
High rigidity of the headstock housing due to heavily ribbed 25GG casting
Precisely machined slide
Shafts on needle bearings, all components are lubricated in an oil bath
Bed guides hardened and precision ground

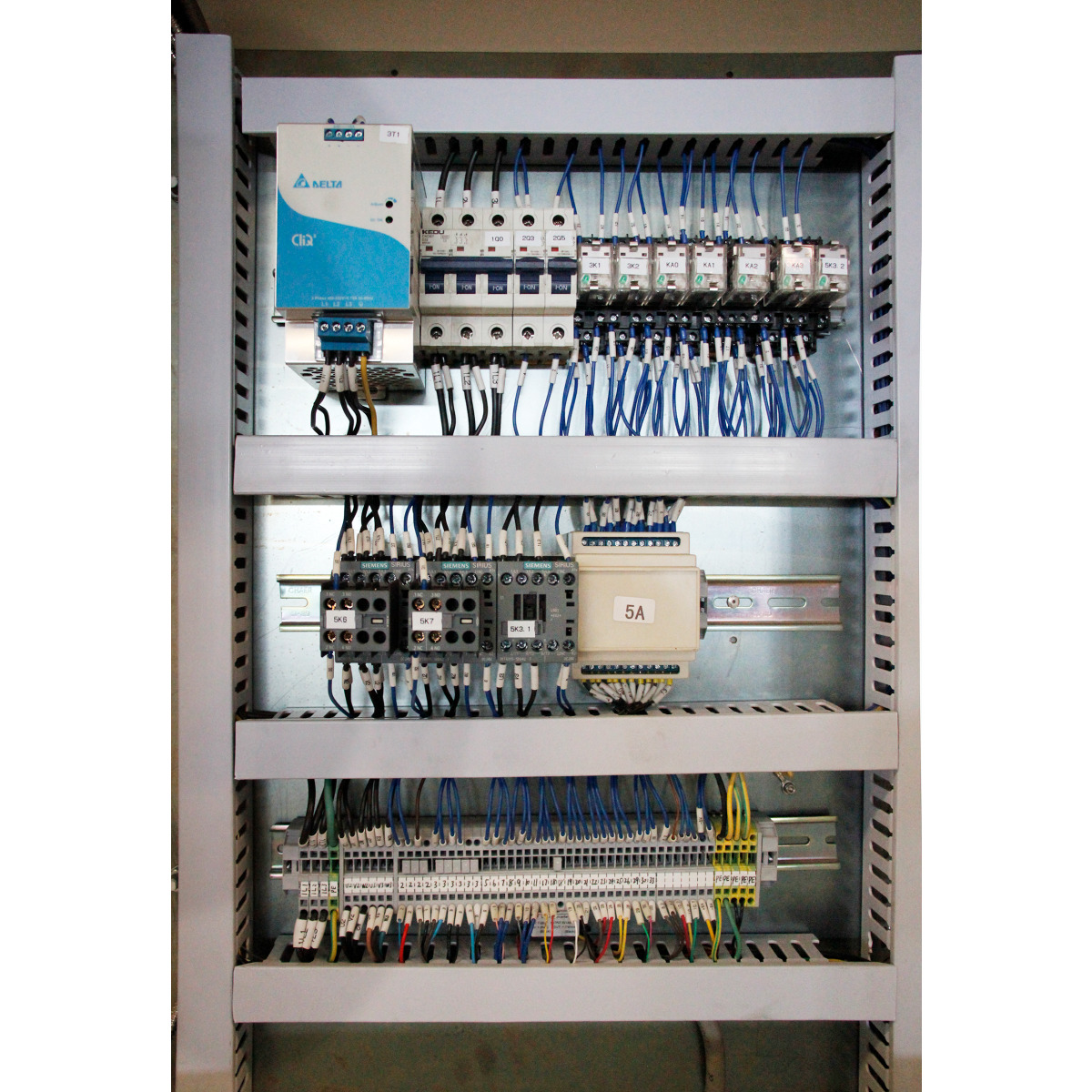

All electronic controls can be reached centrally
All gear wheels of the feed gear made of hardened steel
Handwheels decoupled and tested in accordance with EN 23125
Two-channel safety electronics
Switch with life cycle calculation, tested in accordance with EN ISO 13849
Complete lead and pull spindle cover
Complete illumination of the work area
Service-friendly removable rear panel
Hardened and ground face spindle ensures enormous accuracy and durability
High chip removal during roughing is no problem thanks to the high cutting capacity
Energy chain for gentle cable and hose guidance
Lockable chip guard moves with the bed slide with integrated position indicator and coolant hose, can be moved manually
No change wheels necessary
With safety device to prevent simultaneous operation of tapping and feed mechanism
Electronic feed switch-off of the Z-axis
Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
Electric position switch-off with quadruple position stop
Three-jaw lathe chuck included as standard
Quick-change steel holder SWH 7-C
Steel holder 32 x 130 type D for square chisel 25 mm
Large spindle bore
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Täishind: 56816,85€

Hind: 51252,31€

Kogus:

i h

Saadavus: Laos

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

2950 kg

Kauba info

Netokaal

2800 kg

Brutokaal

2950 kg
