- For continuous air demand and discontinuation operation
- Electronic control for reliability and efficiency
- Increased flexibility thanks to two compressed air tanks
- High-quality and expandable equipment
- Smooth and quiet
- Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
- Can also be used in intermittent operation due to oil temperature control
Electronic temperature control for optimum oil temperature
- Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
- Temperature control of the oil prevents condensation and minimizes wear
- Better energy efficiency compared to a piston compressor with the same delivery capacity
- Additional oil heat exchanger for cooling
K-Tronic electronic control system for reliability and efficiency
- Adjustment of the cut-in and cut-out pressure
- Direction of rotation control
- Monitoring and control of the oil temperature
- Maintenance interval display
Optimized oil separation system
- Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
- Oil separator cartridge and oil filter cartridge easily accessible for maintenance
Integrated design of the compressor unit
- Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
- Maintenance-free direct drive
- Freewheel valve for load-free operation after reaching the set pressure
Lightweight, compact and quiet
- Can be used in mobile applications or where space is limited
- Highly efficient and low-noise fan
- Smooth-running compressor with low noise level

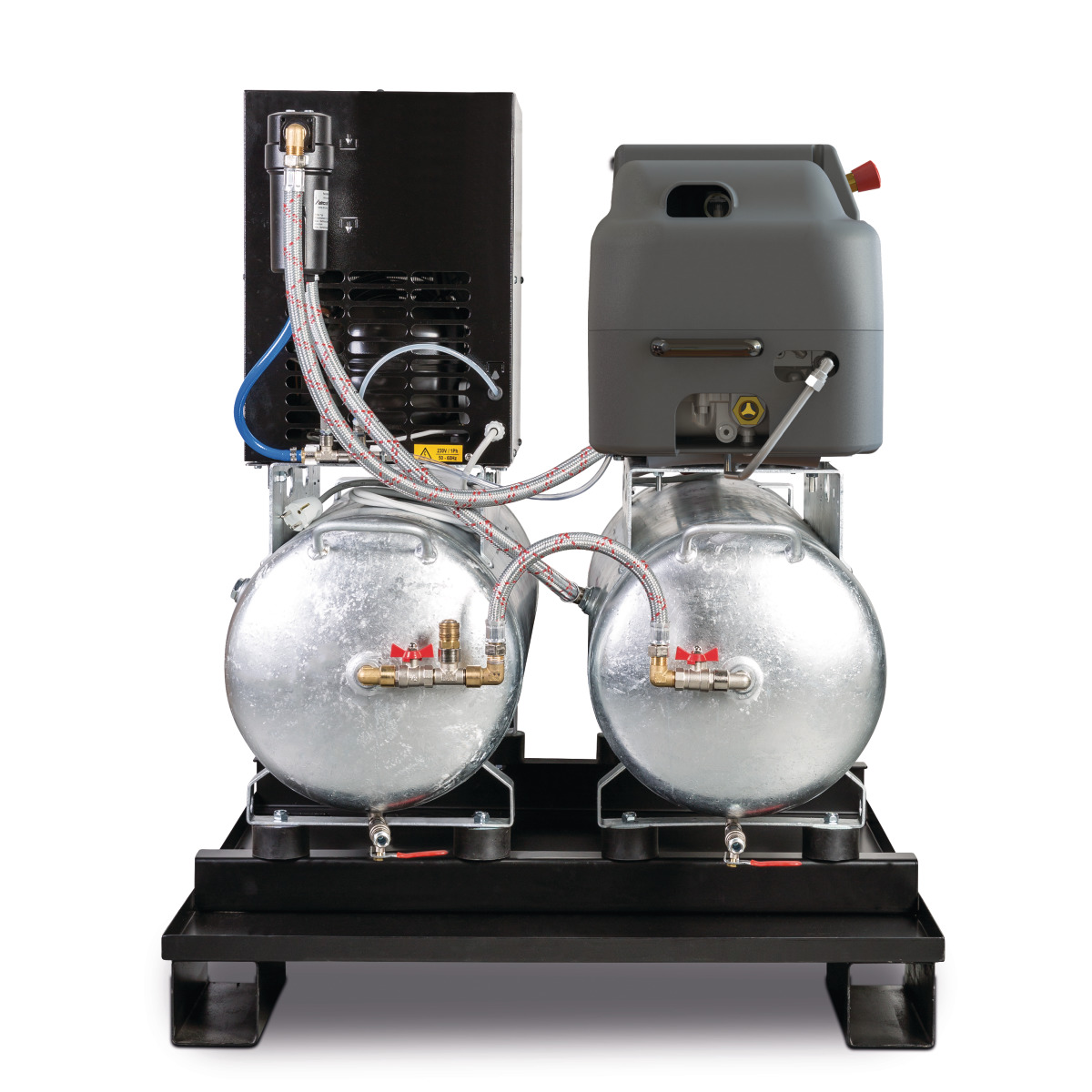

Increased flexibility thanks to two compressed air tanks
- Two 100 liter compressed air tanks ready mounted on a safety pallet
- Doubling of the air supply by switching on the second compressed air tank - an increased air requirement is covered at short notice
- Halving the tank volume by disconnecting the second compressed air tank - allows pressure to be built up quickly, e.g. for chiseling or sandblasting work
High-quality equipment
- Hot-dip galvanized compressed air tanks inside and out with a 15-year guarantee against rusting through
- Splash water protection in accordance with IP 54
- Flexible armored hose lines with heat protection prevent vibration fractures
- With phase inverter on the plug as standard
- Ready for connection with all fittings
- Additional equipment for compressed air preparation and discharge available
