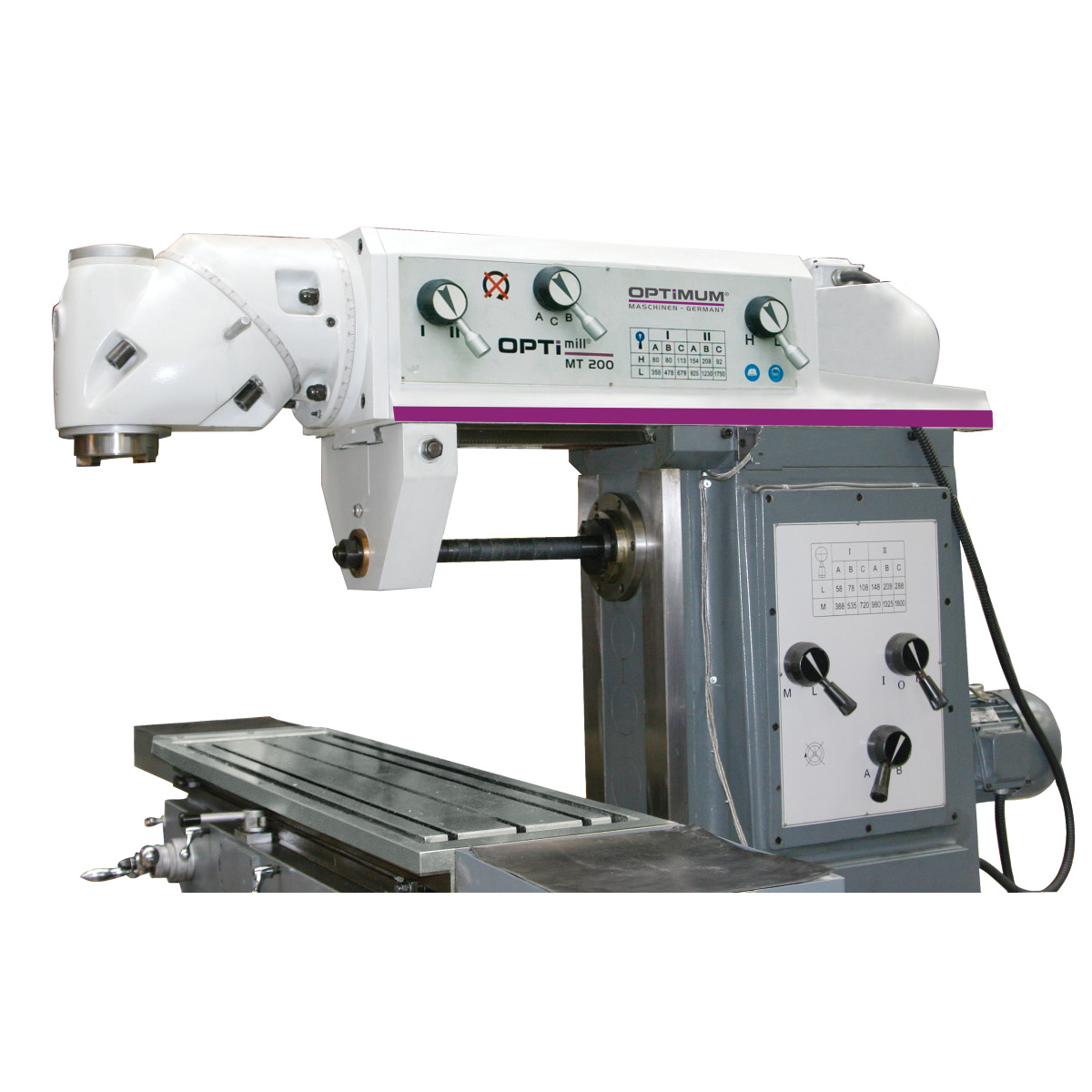

Universal milling machine OPTImill MT 200

SKU: 51-3336120

Tootjakood: 3336120

EAN: 4030635018879

Versatile range of applications
Robust machine design
Heavy, solid design made of high-quality Meehanite cast iron
Smooth running due to ground gear wheels running in an oil bath
All guides are hardened and can be adjusted using wedge strips
Stable flat bed guide in the Y and Z axes
Central lubrication
Large decoupled handwheels with scale
LED machine lamp
Coolant device
Simple operation of the switching elements
Table feed X- and Y-axis
Z-axis with electric table height adjustment
Solid and generously dimensioned cross table, precisely surface-finished with T-slots
Vertical and horizontal milling position
Milling head with two rotary axes, can be swiveled and rotated at any spatial angle
Counter holder for horizontal milling always within reach thanks to attachment at the rear
Height-adjustable protective screen with microswitch to prevent flying chips and parts for maximum user protection
Feed motor with fixed steps

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Täishind: 37090,17€

Hind: 33457,63€

Kogus:

i h

Saadavus: Laos

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

2920 kg

Kauba info

Netokaal

2700 kg

Brutokaal

2920 kg
