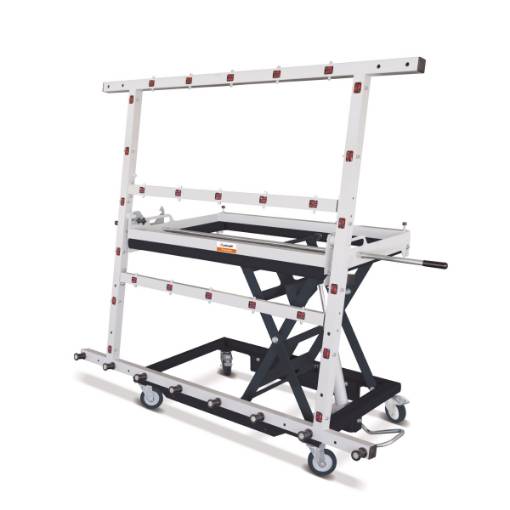

Workplace lift table HT 350 M PSR

SKU: 51-5192352

Tootjakood: 5192352

EAN: 4036351370543

Effortless loading and panning of plates by one person
Swivel frame with locking in vertical and horizontal position
Adjustment of the table height by hydraulic unit by foot lever
Easy to manoeuvre thanks to four steering rollers
Two rolls with fixed-sets

Enables one person to effortlessly load panels onto the platform frame and swivel from the vertical to the horizontal position
For use on sizing or panel dividing saws, on shelves or on the way between stations
Swivel frame with two-position locking in vertical and horizontal position
Adjustment of the table to the desired working height using foot hydraulics
Design principle with smooth-running scissor mechanism ensures that the platform can be raised and lowered absolutely parallel Sturdy support rollers on the lower support and several all-round rollers ensure ergonomic smooth running, that the platform can be raised and lowered absolutely parallel
Sturdy support rollers on the lower support and several all-round castors ensure ergonomic smooth running
Counterweight on the lower frame for a secure stand and maximum stability when moving the table
Operating pedal of the workstation table can be reached without restriction
Easy to maneuver thanks to four swivel castors with a diameter of 125 mm
Two castors equipped with brakes
Assembly and disassembly of the swivel plate frame on the platform base frame in just a few simple steps
Meets the safety criteria of EN 1570-1

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

Täishind: 6000,11€

Hind: 5412,48€

Kogus:

i h

Saadavus: Laos

Laagri

Tellimisel. Eeldatav tarneaeg 7 päeva

Mustamäe

Tellimisel. Eeldatav tarneaeg 7 päeva

Orienteeruv kuutasu järelmaksuga ostes

Periood

Sissemakse

Kuumakse

Tehnilised andmed
Võta ühendust

Pakendi mõõdud

Kaal

Kauba info

Netokaal

Brutokaal
