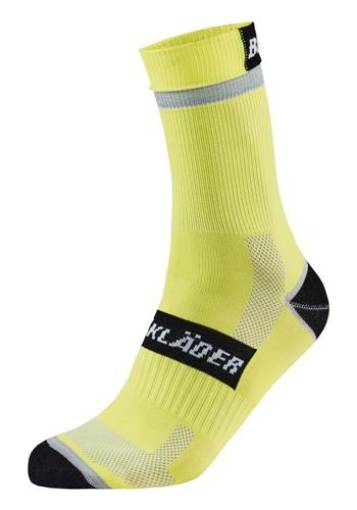

Blaklader sokid Functional neoonkollane 46-48

Technical data:

• Weight (kg) 0,1
• Weight incl. packaging (kg) 0,2
• Dimensions (L × W × H) (mm) 140 x 225 x 43

PENOSIL AquaBrake Fabric 435 is a polyester-based reinforcement fabric designed for hydro-insulating walls and floors in wet and humid areas such as:

• Bathrooms
• Saunas
• Kitchens
• Balconies
• Terraces

It enhances the performance of waterproofing mastics and sealants, ensuring a watertight and flexible sealing layer that bridges cracks and prevents moisture penetration.

Key Features:

• Completely watertight
• Elastic and vapour impermeable
• Crack-bridging capability
• Suitable for heated floors
• Easy to cut and shape
• Compatible with Penosil AquaBrake Fiber 640 mastic
• For interior and exterior use

Applications:

• Reinforcing and sealing:

             Floor drains

             Pipe penetrations

             Wall and floor joints

             Corners

Installation Instructions:

• Cut the fabric to the required size, allowing 5–7 cm overlap at edges.
• Apply the first layer of Penosil AquaBrake Fiber 640 mastic.
• Press the fabric into the fresh mastic using a putty trowel, avoiding air bubbles.
• Cover with a second layer of mastic, ensuring full immersion.

Special Reinforcement Guidelines:

• Corners: Use at least a 20 cm wide strip.
• Joints: Use at least a 10 cm wide strip.
• Floor traps: Use fabric at least 3× the diameter of the opening, preferably in two layers.
• Pipe penetrations: Cut fabric with a diameter 3× larger than the pipe. Make a hole 4–5 mm smaller than the pipe diameter so the fabric overlaps the pipe by 3–5 mm.

Surface Preparation:

• Surfaces must be clean, dry, and free of dust, loose particles, and oil residues.
• Prime concrete, cement, and plaster surfaces with PENOSIL BetPrimer 603.

PENOSIL AquaBrake Fabric 435 is a reinforcement fabric designed for hydro-insulating walls and floors in wet and humid areas such as:

• Bathrooms
• Saunas
• Kitchens
• Balconies
• Terraces

It enhances the performance of waterproof sealants and mastics, making it ideal for use before tiling and other finishing works.

Key Features:

• Completely watertight
• Elastic and vapour impermeable
• Bridges cracks
• Suitable for heated floors
• Easy to use and cut into any shape or size
• For interior and exterior use

Applications:

• Sealing and reinforcing:

         Floor drains

         Wall and floor joints

         Pipe penetrations

         Corners

Installation Instructions:

• Cut the fabric to the required size, allowing 5–7 cm overlap at edges if needed.
• Apply the first layer of Penosil AquaBrake Fiber 640 mastic.
• Press the fabric tightly into the fresh mastic using a putty trowel, avoiding air bubbles.
• Cover with a second layer of mastic, ensuring full immersion.

Special Reinforcement Guidelines:

• Corners: Use at least a 20 cm wide strip.
• Joints: Use at least a 10 cm wide strip.
• Floor traps: Use fabric at least 3× the diameter of the opening, preferably in two layers.
• Pipe penetrations: Cut fabric with a diameter 3× larger than the pipe. Make a hole 4–5 mm smaller than the pipe diameter so the fabric overlaps the pipe by 3–5 mm.

Surface Preparation:

• Surfaces must be clean, dry, and free of dust, loose particles, and oil.
• Prime concrete, cement, and plaster surfaces with PENOSIL BetPrimer 603 before applying.

The PENOSIL FoamGun F1 is a professional-grade polyurethane foam gun designed specifically for sealing and insulating between insulation boards and other extra-narrow gaps. It offers high durability, precision, and ease of use, making it ideal for both professional and DIY applications.

Key Features:

• Designed for narrow joints – Perfect for sealing between tightly fitted insulation boards and hard-to-reach gaps.
• 2-in-1 functionality – Can be used with or without the included narrow brass barrel extensions.
• Included extensions

             Length: 45 mm

             Diameter: Ø 2.45 mm

• Extrusion rod length: 184 mm
• Lightweight plastic handle – Ergonomic and resistant to solvents.
• Quick stop function – Ensures safe and controlled foam application.
• Adjustable foam output – Fine-tune the flow with the trigger and adjustment screw.
• Teflon-coated exterior – Easy to clean and resistant to cured foam.
• Single-part extrusion rod – Strong and durable for long-term use.
• Weight: 446 g

Usage Instructions:

• Shake the foam can vigorously at least 20 times.
• Attach the can upright to the gun.
• Hold the can upside down when extruding foam.
• Adjust foam output using the trigger and screw.
• Clean immediately after use with Penosil Foam Cleaner 929.
• Foam can be reused within 14 days if left attached to the gun.

Important Notes:

• Only use with compatible PU foam products.
• Do not bend, drop, or place heavy objects on the gun.
• Avoid screwing the can with the valve upside down.
• Clean the applicator tip after every use to prevent clogging.
