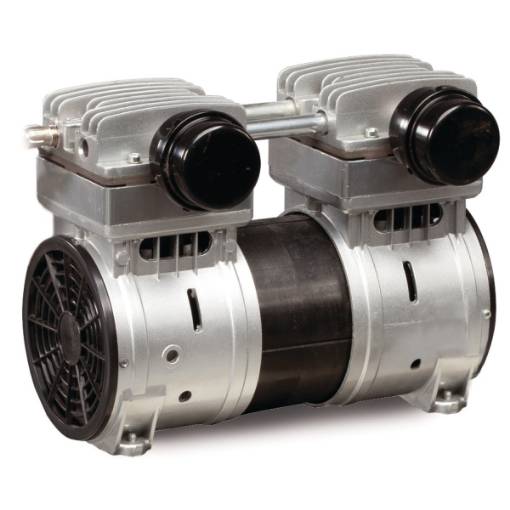

Compressor OL 55 - 0.75M

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

Recommended when operating the screw compressor with start-stop operation via pressure switch without a vessel

Function Description:
When the pre-set pressure is reached, the air, which continues to be pumped, is blown off pressure-free. The valve also has the function of a check valve. This means that the air behind the valve is not blown off, but only the air, which is further promoted.
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• All main components of the compressor are manufactured by machining using numerically controlled machine tools, including suction regulator, separator block and minimum pressure valve
• The cooling takes place via a temperature-controlled centrifugal fan and an oversized combination cooler. This ensures optimal cooling even under the most extreme conditions.
• Generous access panels allow easy maintenance and immediate control of the internal components, reducing the time required for inspection and maintenance to one medium.
• The main operating parameters are monitored by the electronic microprocessor control NRG: In addition to the various functions, a weekly timer for switching on and off is available to meet the requirements of each customer. In addition, up to 4 machines can be controlled simultaneously according to the master / slave principle.

Energy savings through frequency-controlled compressors
Reducing energy consumption and protecting our precious energy resources has become a global challenge given its impact on the environment. The A-PLUS 22, 37, 55 and 75 kW range is also available in a speed control version that combines high performance with energy saving solutions. By using a variable speed compressor in a typical installation, you save a significant amount of energy.
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• For highly efficient separation of large quantities of condensate from compressed air and vacuum systems
Installation between compressor and compressed air tank
• Filter housing made of aluminum and anodized inside
• Separation of condensate (water, oil) and dirt particles by centrifugal acceleration of the compressed air
• The condensate drain with float valve is used to separate the condensate from the water separator
• Electronic condensate drain can be retrofitted

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• EasyTRONIC MICRO II electronic control with pressure sensor operation as standard, thus preventing motor overload, reducing wear and extending service life
• With star-delta switch
• High cooling effect and lower noise level due to thermostatically controlled radial fan
• Operating hours counter records load and overrun times, thus ensuring compliance with maintenance intervals - Indication of maintenance requirement via automatic message
• Rotation direction control for the motor avoids possible damage during commissioning or after a change of location
• Screw compressor with wear-resistant Poly V ribbed belt drive and carriage tensioning system
• Easy maintenance due to easily accessible elements
• Optimum operating temperatures due to thermostatically controlled fan, optimum cooling air flow and generously dimensioned heat exchanger, thus longer service life, lower fluctuations in oil temperature than with thermostat control
• Aftercooler as standard, thus less effort for drying and filtration of the generated compressed air
• Small external dimensions, thus easy transport and installation
