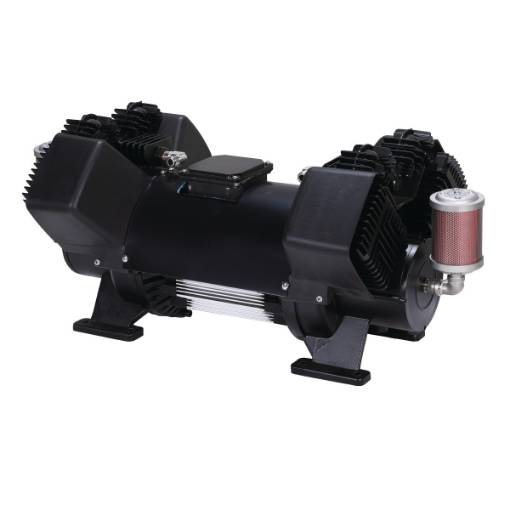

Compressor SIN 600 OF 400V

• For continuous air demand and discontinuation operation
• Electronic control for reliability and efficiency
• Increased flexibility thanks to two compressed air tanks
• High-quality and expandable equipment
• Smooth and quiet

• Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
• Can also be used in intermittent operation due to oil temperature control

Electronic temperature control for optimum oil temperature

• Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
• Temperature control of the oil prevents condensation and minimizes wear
• Better energy efficiency compared to a piston compressor with the same delivery capacity
• Additional oil heat exchanger for cooling

K-Tronic electronic control system for reliability and efficiency

• Adjustment of the cut-in and cut-out pressure
• Direction of rotation control
• Monitoring and control of the oil temperature
• Maintenance interval display

Optimized oil separation system

• Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
• Oil separator cartridge and oil filter cartridge easily accessible for maintenance

Integrated design of the compressor unit

• Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
• Maintenance-free direct drive
• Freewheel valve for load-free operation after reaching the set pressure

Lightweight, compact and quiet

• Can be used in mobile applications or where space is limited
• Highly efficient and low-noise fan
• Smooth-running compressor with low noise level

Increased flexibility thanks to two compressed air tanks

• Two 100 liter compressed air tanks ready mounted on a safety pallet
• Doubling of the air supply by switching on the second compressed air tank - an increased air requirement is covered at short notice
• Halving the tank volume by disconnecting the second compressed air tank - allows pressure to be built up quickly, e.g. for chiseling or sandblasting work

High-quality equipment

• Hot-dip galvanized compressed air tanks inside and out with a 15-year guarantee against rusting through
• Splash water protection in accordance with IP 54
• Flexible armored hose lines with heat protection prevent vibration fractures
• With phase inverter on the plug as standard
• Ready for connection with all fittings
• Additional equipment for compressed air preparation and discharge available

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Simple and quick installation
• Ideal for compressed air and liquids
• Can be assembled without tools
• Fast, multiple disconnections possible
• Very good flow properties

Manufacturer
Reliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com

• Thanks to patented technology, regular service is possible in only 30 seconds and without expensive cleaning
• Wall and floor mounting possible
• Works reliably with any steam trap
• Suitable for all common compressor oils
• Operating media: condensate (air, water, oil), non-aggressive, not suitable for emulsion
• Quick and clean change of the filter cartridge
• No settling tank necessary (no bacteria formation)
• Easy installation due to compact design and small dimensions
• Connection via quick couplings

Function Description:

• Multi-stage oil-water separation via an oil-attracting filter and activated carbon
• After the end of the service life of the filter element this is unscrewed and disposed of completely
• Filter element is tightly closed with plastic cover, so that residual condensate can remain in it
• Locked filter element can be disposed of according to current regulations

service interval

• after occurrence of one of the following three cases:
• 4,000 operating hours of the compressor at compressor oil transfer of 2.5 mg / m3
• Discoloration of the polypropylene medium - analysis by simple visual inspection
• At the latest after 12 months (regardless of the operating hours of the compressor)

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Simple and quick installation
• Ideal for compressed air and liquids
• Can be assembled without tools
• Fast, multiple disconnections possible
• Very good flow properties

Manufacturer
Reliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com
