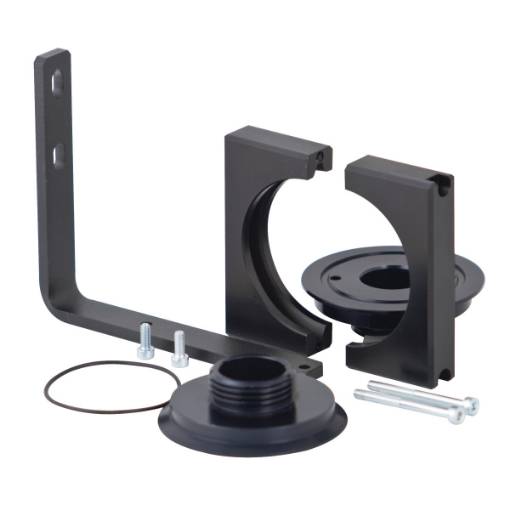

Connection set AK 1 "

• Testing under a pressure four times higher (PN12.5) than the normal working pressure

Exclusively suitable for aluminum pipes
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Absolute Low maintenance drive with maximum energy efficiency through direct-coupled coaxial screw compressors
• Standard EasyTronic IV control prevents engine overload, reduces wear and ensures a longer service life
• High cooling effect and lower noise level due to thermostatically controlled centrifugal fan
• Longer life of the device and lower fluctuations of the oil temperature thanks to thermostatically controlled fan, optimal cooling air flow and generously dimensioned heat exchanger
• Less effort for drying and filtration of the compressed air generated by integrated aftercooler
• Secured maintenance intervals by recording the load and follow-up times via operating hours counter
• Display of the maintenance requirement via automatic message
• Avoidance of damage during commissioning or after relocation due to integrated direction of rotation control for the motor
• Service-friendly due to optimal accessibility and easy assembly / disassembly of all serviceable components
• Easy transport and setup due to small outer dimensions
• Monitoring of engine and compressor speed by SpeedTronic Control

Energy savings with frequency-controlled compressors:

Based on the frequency converter technology, the delivery volume of the compressor adapts to the actual consumption. The electronic control monitors the engine and compressor speed and keeps the network pressure constant. The user receives advanced advanced technology in a small space.

Your advantages:

• Active energy saving
• Ideal for frequently changing compressed air consumption
• The variable speed compressor achieves maximum efficiency and keeps the network pressure constant, even when consumption fluctuates widely.

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Electronic control with power display
• Easy to maintain
• Housing made of anodised aluminium
• All connections on the back of the housing
• Control functions: maintenance/running time alarm, power-dependent regeneration cycle, Modbus compatible

• Reliable drying of compressed air
• Electronic control with power display
• Easy to maintain
• Pneumatic cleaning valves
• Housing made of anodised aluminium
• Low noise emission of max. 75 dB(A)
• All connections on the back of the housing
• Pressure manometer on the back for easy control of the input /output pressure
• Enclosure designed for transport with forklift

Electronic control functions:

• Maintenance alarm
• Runtime alarm
• Power-dependent regeneration cycle, i.e.: lower compressed air requirement and reduced purging times
• Modbus compatible: alarm indications on external device

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Large fan wheel and a cooling air baffle on the cylinder for optimum cooling of the compressor
• Aftercooler with cooling fins for low vessel inlet temperature and less moisture in the compressed air
• Sturdy metal belt guard
• "Made in Germany": vessel pressure gauge; filter pressure regulator with pressure gauge for regulated compressed air cleaned of condensate, dirt and oil
• Ten-year warranty against rust-through on powder-coated compressed air reservoir
• Including high-quality composite safety coupling and high-quality CONDOR pressure switch

• Two-cylinder high-performance units made of gray cast iron for a long service life.
• Large fan wheel and a cooling air baffle on the cylinder for optimal cooling of the compressor
• Quality electric motor with high starting torque
• Electric motor equipped with motor protection switch
• Aftercooler with cooling fins ensures a low tank inlet temperature and thus less moisture in the compressed air
• Sturdy metal belt guard
• Start-up capacitor and start-up relief valve ensure easy start-up on 230 volt models
• Container pressure gauge "Made in Germany
• Filter pressure regulator with pressure gauge "Made in Germany" for regulated compressed air cleaned of condensate, dirt and oil
• Ten-year warranty against rust-through on powder-coated compressed air reservoir
• Includes high quality composite safety coupling and high quality CONDOR pressure switch
• Large ergonomic handle
• Stable steering chassis with parking brake in combination with large, puncture-proof PU wheels
• Made in Europe

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Ideal in combination with prefabricated solutions
• Permanently sealed without pressing
• Installation even in confined spaces
• Detachable fittings can be reused
• Cost savings through quick assembly

• Permanently sealed without pressing
• Cost savings through quick and easy assembly
• Ideal in combination with prefabricated solutions
• Compatible with other standards-compliant pipes
• No confusion of contours possible
• Installation even in confined spaces
• Extraction forces far beyond the requirements of the standard
• Pipe components can be dismantled and reused
• Numerous national and international approvals
• O-rings included

Manufacturer
