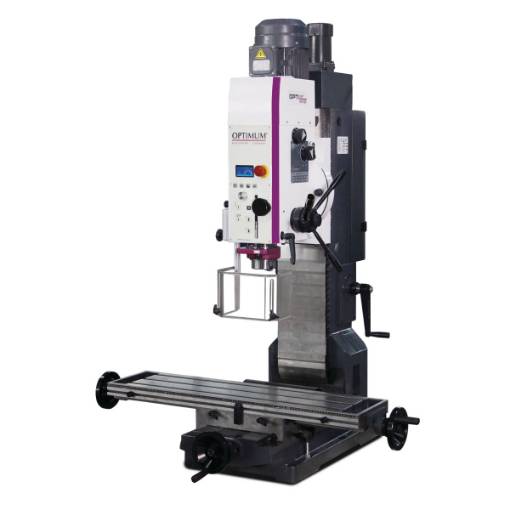

Drilling and milling machine OPTImill MH 50V

SKU: 51-3338186

Valmistajan osanumero: 3338186

GTIN: 4030635050947

High concentricity due to tapered roller bearings, ≤ 0.015 mm measured in the sleeve
Oil bath gearbox with ground, hardened gear wheels
Control panel with user-friendly, dirt and water-resistant membrane keypad
Rotary pushbutton in the control panel for setting the drilling depth in either mm or inches and zero point
Easy-to-read digital display
Easy-to-read quill display in the milling head
Drilling depth stop
Right/left rotation
Tapping mode
Electric milling head height adjustment
Manual fine feed
Heavy, stable and solid column made of high-quality gray cast iron, with ground and scraped dovetail guide for high stability and precision
Gear head can be tilted ± 30
Z-axis with stainless steel lamella protective cover
Adjustable gibs
Adjustable and readjustable feed spindle play
Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum user protection
Optional, solid, heavy steel base MSM 4 (item no.: 3353015) ensures stability
Two-stage industrial motor and additional 6 gear stages

Updated version

Machine base reinforced and cast in a wedge shape at the front to create even more rigidity in the rear area with more material. The entire table can be milled over
Z-column connection very stable

MH 50 V

Electric Z-axis adjustment
Larger table and therefore more travel in X-axis

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Vanha hinta: 9767,31€

Hinta: 8810,71€

Kpl:

i h

Saatavuus: Varastossa

Hankija ladu

Laagri

Tilattavissa. Arvioitu toimitusaika 7 päivää.

Mustamäe

Tilattavissa. Arvioitu toimitusaika 7 päivää.

Kuukausierä suunnilleen

Kausi

Ennakkomaksu

Kuukausittain

Tekniset tiedot
Ota yhteyttä

Package unit

Paino

575

Tuotteen tiedot

Nettopaino

518

Bruttopaino

575
