51-3692105

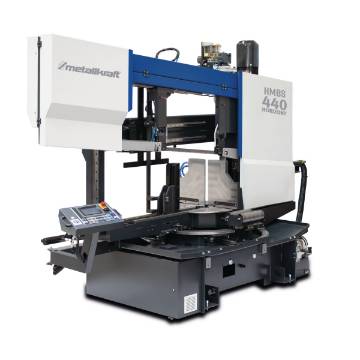

- Two-column guided horizontal saw for sawing solid bars and bar profiles
- Mitsubishi FX 5 control system with simple operation via 4.3" touchscreen
- Cutting movement via hydraulic cylinder
- With BRP (cutting feed control) -> if a set ampere limit is exceeded, the feed movement is stopped while the saw blade continues to run in order to convey chips out of the cutting channel. Once the normal load is reached, the sawing process continues
- Automatic positioning after entering the desired angle
- Hydraulic clamping of the turntable enables precise angular cutting
- Robust machine body and the smallest possible distances between the saw blade, machine guide and workpiece minimize vibrations for maximum sawing performance
- Infinitely variable cutting speed from 15 - 150 m/min
- Saw blade drive via bevel gearbox, asynchronous motor and frequency inverter
- For straight cuts, the material is clamped in front of and behind the cut using a two-part vice
- Pressure adjustment of the hydraulic vice clamping via control valve with pressure gauge
- Saw blade inclination of 7° and hydraulic saw blade tension increase the service life of the saw blade
- Front band guide moves automatically parallel to the movable vice jaw
- chip clearing brush driven via belt roller
- Emulsion cooling with liquid distribution into the saw blade guides and directly into the cutting channel
- More powerful motor optionally available
- Saw blade guides with integrated cooling system
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
51-3191047TSET
- User-friendly safety switch to IP 54
- Separate emergency stop switch
- Measuring scale for drilling depth
- Precisely machined drill table with diagonal T-slots ± 45° tiltable and 360° rotatable
- Solid, large base plate with grooves, heavily ribbed on the back
- Guaranteed concentricity ≤ 0.03 mm measured in the drill spindle
- V-belt cover with safety switch
- Right/left rotation
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3630125SET
- Impressively quiet!
- Highest life
- Infinitely 30-80 m / min
- Use of coolant on all models possible
- Ideal for sawing steel, aluminum, copper, PVC and Teflon
- Stepless, electronic speed control from 30 - 80 m / min
- Particularly quiet - up to 60% quieter than comparable band saws
- Low vibration and wear thanks to special gearbox with two large gears made of hardened steel
- Guaranteed cutting accuracy of max. 0.3 mm course over 100 mm cutting length
- Each machine individually tested for precision in Italy
- Low-speed DC drive motor with carbon brushes for up to 10 times longer life
- Electronic temperature and ampere recording monitoring against overload
- Cast strip wheels with ground running surface without rubber pads, therefore suitable for dry and wet cutting
- Massive saw bar made of die-cast aluminum (readjustable from MBS 125) and with sturdy transport lock
- Two movable, adjustable saw band guides with chip scraper made of metal
- Particularly stable base plate with non-slip feet
- Very service-friendly, as components are easily accessible
ManufacturerStürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de
