kaablilõikur 95 36 315 A Knipex

Key Features:

• Designed for cutting multi-strand copper cables up to Ø 10 mm (24 mm²).
• Not suitable for steel wire or hard-drawn copper conductors.
• Precision-ground, hardened blades – cuts without crushing, minimal deformation.
• Adjustable bolted joint ensures accurate cutting action.
• Opening spring and locking device for ease of use.
• Handles are impact-resistant plastic.
• Pinch guard prevents finger injuries.

Technical Specifications:

• Length: 165 mm
• Cutting capacity: copper cable up to Ø 10 mm / 24 mm² (AWG 4)
• Weight: approx. 111 g
• Material: stainless, air-hardened surgical steel
• Finish: polished head
• Handles: plastic-coated

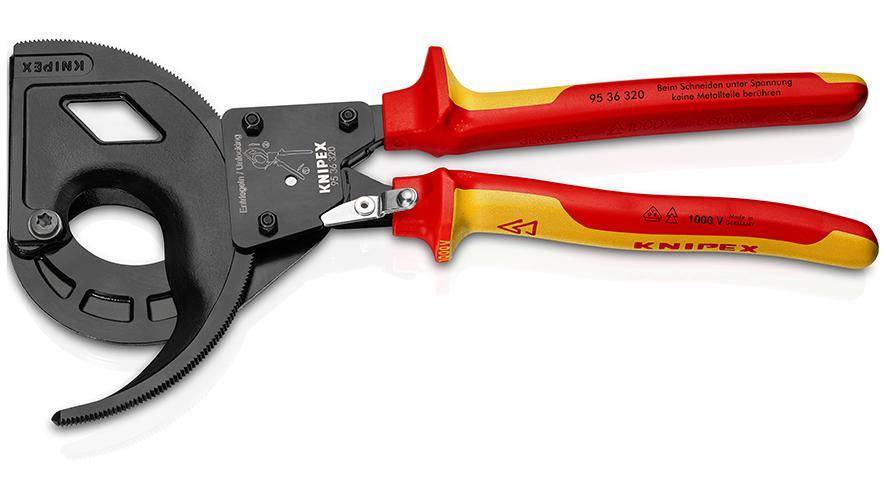

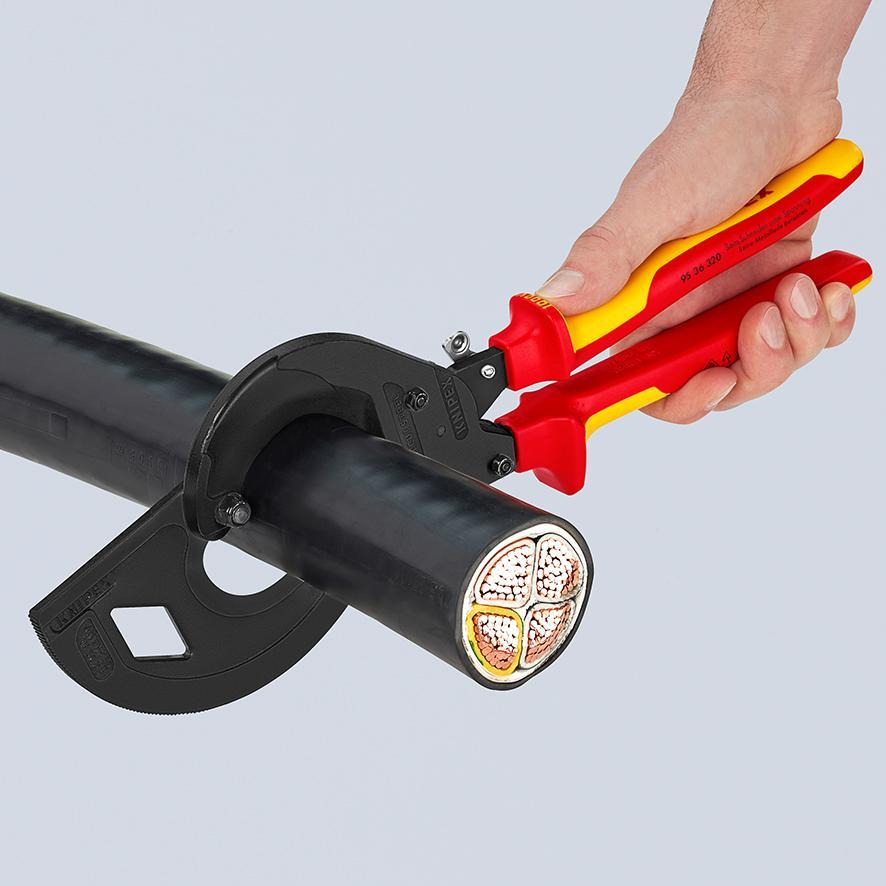

• Type: Ratchet-style cable cutter for copper and aluminium cables.
• Length: 250 mm
• Weight: approx. 676 g

Cutting Capacity:

• Copper cable, multi-stranded: up to 240 mm²
• Diameter: up to Ø 32 mm
• MCM: 500
• Not suitable for steel wire, wire ropes, or highly flexible fine-stranded conductors.

Design & Operation:

• One-hand operation using ratchet principle.
• Two-stage ratchet drive for easy cutting with minimal hand force thanks to high transmission ratio.
• Clean and smooth cut without crushing or deformation.
• Fixed handle with support area for placing the tool during cutting.
• Pinch guard prevents fingers from being pinched.
• Compact and lightweight for use in confined spaces.

Material & Finish:

• High-grade special tool steel, forged and oil-hardened.
• Surface: Black lacquered.
• Handles: Multi-component grips for comfort.

Compliance:

• REACH: Does not contain SVHC substances.
• RoHS: Not applicable.
• Dimensions: 250 × 77 × 22 mm

• Type: Ratchet-style cable cutter for copper and aluminium cables.
• Length: 280 mm
• Weight: approx. 860 g
• Cutting Capacity:

    Copper cable, multi-stranded: up to 380 mm²

• Diameter: up to Ø 52 mm
• MCM: 750
• Suitable for aluminium sector cable up to 4 × 150 mm²
• Not suitable for steel wire, wire ropes, or highly flexible fine-stranded conductors.

Design & Operation:

• One-hand operation using ratchet principle.
• Two-stage ratchet drive for easy cutting with minimal hand force thanks to high transmission ratio.
• Clean and smooth cut without crushing or deformation.
• Fixed handle with support area for placing the tool during cutting.
• Pinch guard prevents fingers from being pinched.
• Compact and lightweight for use in confined spaces.

Material & Finish:

• High-grade special tool steel, forged and oil-hardened.
• Surface: Black lacquered.
• Handles: Multi-component grips for comfort.

Compliance:

• REACH: Does not contain SVHC substances.
• RoHS: Not applicable.

Dimensions: 280 × 131 × 34 mm.
