Kaapelileikkurit

Kerge LXT® suletud tüüpi kaablilõikur alumiinium- ja vaskkaablite lõikamiseks.

Maksimaalne lõiketera avamise laius on 65 mm.
Maksimaalne kaabli lõikamisvõime on 65 mm (ainult värvilistele metallidele, nagu alumiinium või vask).
DTC102 on spetsiaalselt ainult lõikamiseks mõeldud kaablilõikur.

Kerge kaal tagab suurepärase manööverdusvõime ja mugava kasutamise. Kaablilõikuril on automaatne tagurpidikäigu funktsioon, mis tähendab, et liikuv lõiketera naaseb automaatselt algasendisse pärast lõikamise lõpetamist.

Tera avanemisnurka saab reguleerida vastavalt lõigatava kaabli läbimõõdule.

Kaablilõikuril on LED-töötuli järelkuma funktsiooniga.

• Total Length: 630 mm (adjustable 600–810 mm)
• Cutting Capacity: up to 60 mm

Suitable for:

• Copper and aluminum cables (single and multi-stranded)
• Cables with hard rubber or plastic insulation
• Cables with steel reinforcement
• Not suitable for: steel wires or wire ropes

Features:

• Minimal hand force required thanks to optimal leverage
• High cutting performance due to two-hand operation and ratchet mechanism
• Blades can be opened at any time during cutting
• Telescopic handles (400–610 mm) for easy transport and adaptable working conditions

Materials:

• Blades: special quality tool steel, oil-hardened
• Handles: strong oval aluminum tube
• Weight: approx. 3.82 kg
• Country of Origin: Germany

• Type: Ratchet-style cable cutter for copper and aluminium cables.
• Length: 250 mm
• Weight: approx. 676 g

Cutting Capacity:

• Copper cable, multi-stranded: up to 240 mm²
• Diameter: up to Ø 32 mm
• MCM: 500
• Not suitable for steel wire, wire ropes, or highly flexible fine-stranded conductors.

Design & Operation:

• One-hand operation using ratchet principle.
• Two-stage ratchet drive for easy cutting with minimal hand force thanks to high transmission ratio.
• Clean and smooth cut without crushing or deformation.
• Fixed handle with support area for placing the tool during cutting.
• Pinch guard prevents fingers from being pinched.
• Compact and lightweight for use in confined spaces.

Material & Finish:

• High-grade special tool steel, forged and oil-hardened.
• Surface: Black lacquered.
• Handles: Multi-component grips for comfort.

Compliance:

• REACH: Does not contain SVHC substances.
• RoHS: Not applicable.
• Dimensions: 250 × 77 × 22 mm

• Type: Ratchet-style cable cutter for copper and aluminium cables.
• Length: 280 mm
• Weight: approx. 860 g
• Cutting Capacity:

    Copper cable, multi-stranded: up to 380 mm²

• Diameter: up to Ø 52 mm
• MCM: 750
• Suitable for aluminium sector cable up to 4 × 150 mm²
• Not suitable for steel wire, wire ropes, or highly flexible fine-stranded conductors.

Design & Operation:

• One-hand operation using ratchet principle.
• Two-stage ratchet drive for easy cutting with minimal hand force thanks to high transmission ratio.
• Clean and smooth cut without crushing or deformation.
• Fixed handle with support area for placing the tool during cutting.
• Pinch guard prevents fingers from being pinched.
• Compact and lightweight for use in confined spaces.

Material & Finish:

• High-grade special tool steel, forged and oil-hardened.
• Surface: Black lacquered.
• Handles: Multi-component grips for comfort.

Compliance:

• REACH: Does not contain SVHC substances.
• RoHS: Not applicable.

Dimensions: 280 × 131 × 34 mm.

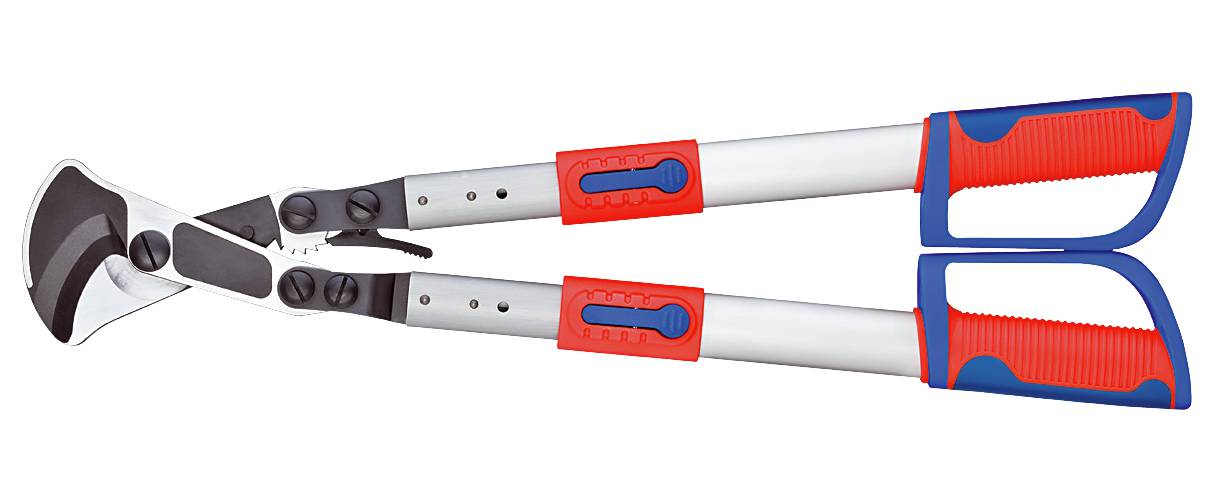

• Type: Heavy-duty ratchet cable cutter with telescopic handles.
• Length: Adjustable from 650 mm to 860 mm (handle length adjustable 400–610 mm for transport and working conditions).
• Weight: approx. 4,980 g.
• Cutting Capacity:

    Copper and aluminium cables up to Ø 100 mm (multi-stranded up to     960 mm²).

    MCM: 1,900.

    Also suitable for cables with iron sheath reinforcement.

    Not suitable for steel wire, wire ropes, or highly flexible fine-stranded     conductors.

Design & Operation:

• Ratchet principle for high leverage and minimal hand force.
• Two-hand operation for maximum cutting capacity.
• Blade can be opened in any cutting position.
• Compact transport length thanks to telescopic handles.

Material & Finish:

• Blade: Special-quality high-grade tool steel, oil-hardened.
• Handles: High-strength oval aluminium tubing with multi-component grips.
• Head: Burnished finish.

Compliance:

• REACH compliant (contains SVHC).
• RoHS: Not applicable.

Dimensions: approx. 680 × 220 × 60 mm

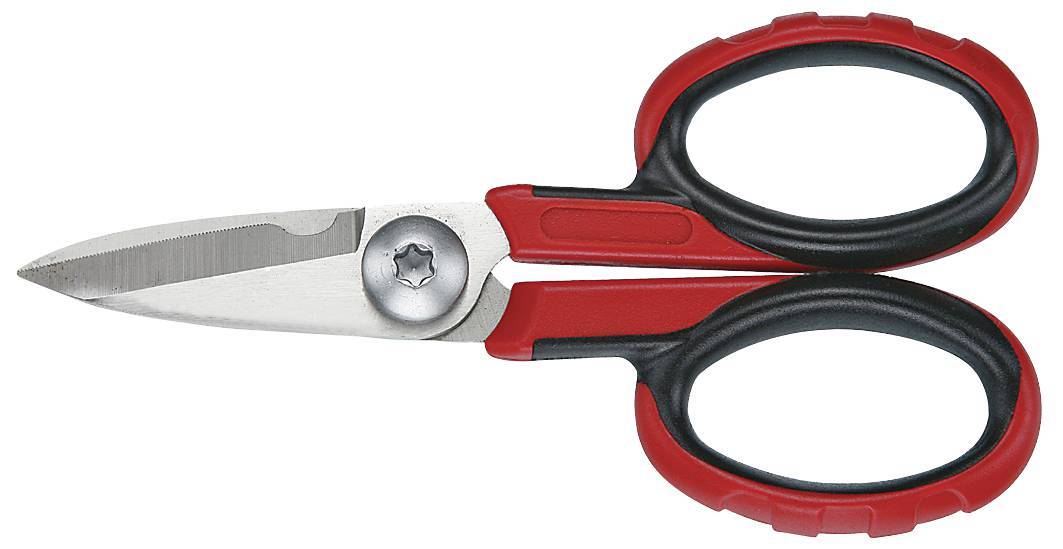

Key Features:

• Designed for cutting multi-strand copper cables up to Ø 10 mm (24 mm²).
• Not suitable for steel wire or hard-drawn copper conductors.
• Precision-ground, hardened blades – cuts without crushing, minimal deformation.
• Adjustable bolted joint ensures accurate cutting action.
• Opening spring and locking device for ease of use.
• Handles are impact-resistant plastic.
• Pinch guard prevents finger injuries.

Technical Specifications:

• Length: 165 mm
• Cutting capacity: copper cable up to Ø 10 mm / 24 mm² (AWG 4)
• Weight: approx. 111 g
• Material: stainless, air-hardened surgical steel
• Finish: polished head
• Handles: plastic-coated

Hõivatud professionaalina vajad tööriistu, mida on lihtne kasutada ja mis vastavad kõikidele nõuetele. Bosch Professional VDE kaablikääridega saate kaableid koorida ja lõigata ka siis, kui võite tahtmatult puutuda vastu voolu all olevaid komponente.
See standardile vastav tööriist on isoleeritud termoplastist polüuretaankihiga (TPE). Seda on testitud kuni 10 000 voldiga ja sellele on antud vastavalt standardile DIN EN/IEC 60900 10 000 voldise kaitse VDE-sertifikaat.
VDE kaablikäärid on mugavad ja mitmekülgsed.
Kahe tera tehnoloogiat kasutades kasutate esimest tera juhtme või kaabli koorimiseks ja teist tera juhtme või kaabli lõikamiseks.
Need vastupidavad käärid on valmistatud sepistatud terasest ja neil on karastatud lõikeservad.
Bosch Professional tootevalikusse lisatud VDE käsitööriistad vastavad kõigile Boschi kvaliteedinõuetele.

Kasutage juhtmete ja alumiiniumi ja pehme vase lõikamiseks neid tugevaid kaablikääre – tänu kahe tera tehnoloogiale saab hakkama AWG 2/0 ristlõikega kuni 70 mm⊃2; ja välise läbimõõduga 20 mm.
Mugav kasutada tänu ergonoomilisele pehmele käepidemele.

Pikkus: 200 mm
Maksimaalne lõikevõime: 20 mm / 70 mm⊃2;
