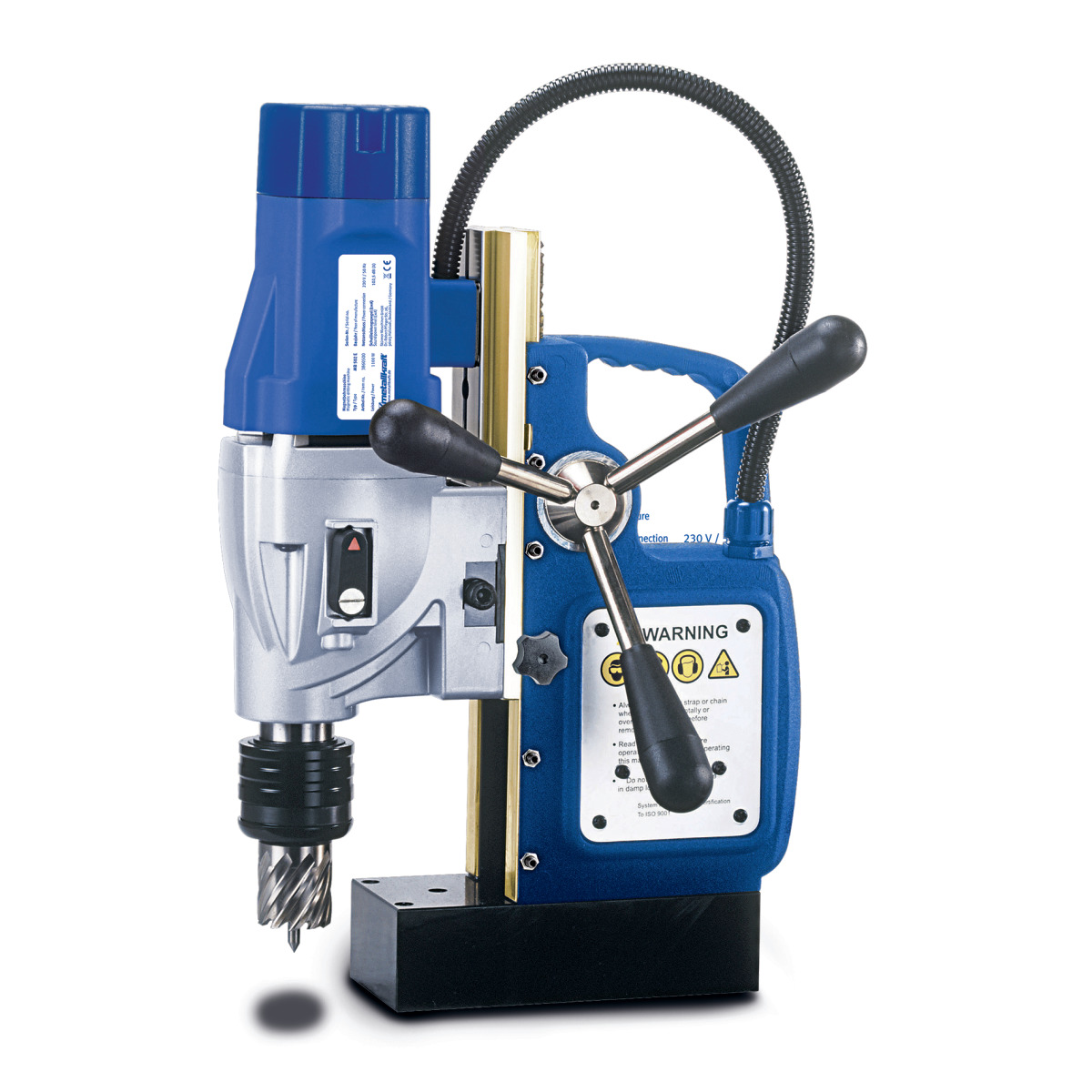

Magnetic core drill MB 502 E

Tehnilised andmed:

• Toitepinge: 230 V
• Võrgusagedus: 50 Hz
• Mootori võimsus: 1,1 kW
• Spindli kiirus tühikäigul: 850 p/min
• Pöörlemissuunad: parem- ja vasakkäik
• Magneti hoidmisjõud: 14 500 N
• Magnetaluse pikkus: 166 mm
• Magnetaluse laius: 80 mm
• Südamikpuuri maksimaalne läbimõõt: 35 mm
• Südamikpuurimise maksimaalne sügavus: 50 mm
• Keermestamise maksimaalne suurus: M14
• Tööspindel: Weldon 19 mm (3/4")
• Etteanne: käsitsi
• Kaitseklass: IP42
• Mõõtmed (P × L × K): 290 × 154 × 180 mm
• Kaal: ca 9,5 kg

Komplekti sisu:

• Metallkraft MB 351 BLV magnetstatiiviga trell
• Integreeritud jahutusvedeliku süsteem
• Turvakinnitusrihm
• Tööriistad seadistamiseks ja hoolduseks
• Plastist transpordikohver
• Kasutusjuhend

Märkus: südamikpuurid ja tsentreerimistihvt ei kuulu standardvarustusse.

The MAKITA HB500 is a heavy-duty magnetic drill designed for professional metalworking applications. It combines the magnetic base, drill stand, and motor into a single system, ensuring easy setup and highly stable drilling performance.

Key features:

• Powerful magnetic base ensures secure positioning and high precision
• Two-speed gearbox (350 / 650 rpm) for optimal performance on different materials
• Suitable for drilling holes in steel up to 50 mm diameter
• Integrated coolant system for smoother operation and longer tool life
• All-in-one system (magnetic base + stand + drill) for fast and easy setup
• Robust construction for professional and heavy-duty use
• Double insulated for increased safety
• Stable slide mechanism for accurate and consistent drilling

Technical specifications:

• Power input: approx. 1150 W
• Voltage: 230 V
• No load speed: 350 / 650 rpm
• Max drilling capacity in steel: 50 mm
• Chuck capacity: 16 mm (5/8”)
• Magnetic holding force: approx. 9,300 N
• Dimensions: approx. 290 × 150 × 450 mm
• Weight: approx. 18.5 kg

Scope of delivery:

• Quick release arbor
• Coolant tank and hose
• Safety guard
• Safety strap
• Hex keys
• Carrying case

Application:

Ideal for heavy-duty metalworking, construction, and maintenance tasks where large diameter drilling and strong magnetic fixation are required.

The MAKITA HB350 is a compact and powerful magnetic drill designed for precise drilling in ferrous metals. The unit combines a magnetic base, drill stand, and drill motor into one system for easy setup and stable operation.

Key features:

• Powerful magnetic base ensures firm holding and accurate drilling
• Suitable for drilling holes in steel up to 35 mm in diameter
• Compact and lightweight design for easy transport and use in confined spaces
• Integrated coolant system for smooth and efficient drilling
• All-in-one system (magnetic base + stand + drill) for quick setup
• Double insulated motor for increased safety
• Smooth and precise drilling thanks to stable slide mechanism

Technical specifications:

• Power input: approx. 1050 W
• Voltage: 230 V
• No load speed: 850 rpm
• Max drilling capacity in steel: 35 mm
• Chuck type: 19 mm (3/4”) Weldon
• Magnetic holding force: approx. 8,000 N
• Dimensions: approx. 225 × 195 × 490 mm
• Weight: approx. 11.5–11.6 kg

Scope of delivery:

• Coolant tank and hose
• Safety guard
• Safety strap / chain
• Hex keys
• Carrying case

Application:

Ideal for metalworking, construction, and maintenance tasks requiring precise drilling and a strong magnetic holding system.
