51-3384432

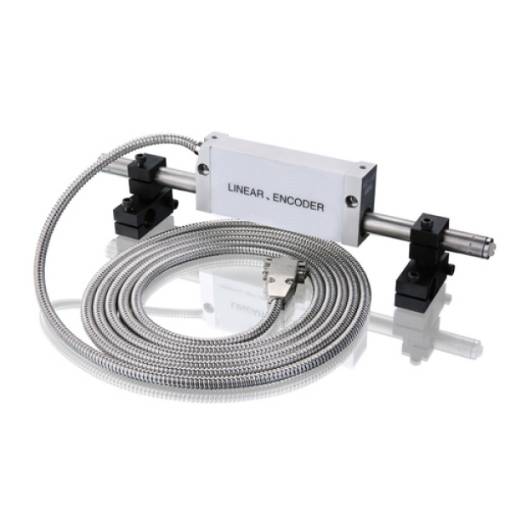

- The electronic measuring components of the measuring strips are protected and sealed in the housing
- Allows accurate and reliable measuring results even if the measuring system is installed in Öl or cooling liquids
- Tolerant against vibrations and magnetic interference
- Without mounting
Note: Adjustments may have to be made to the machine for mounting the measuring bars
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-0338422500
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3420325
- Precise processing
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose ≤ 0.009 mm
- Concentricity on the lathe chuck ≤ 0.05 mm
- Lead screw for thread cutting or automatic longitudinal turning
- Right/left rotation switchable in the control panel
- Roll-rolled trapezoidal spindles
- Thrust bearing
- Precisely machined slide
- Lead screw mounted in two sintered bearings
- All guides can be adjusted using wedge strips
- Handwheels with adjustable fine scaling 0.04 / 0.01 mm
- Tailstock for taper turning adjustable ± 5 mm
- Tailstock quill and handwheel with adjustable fine scaling 0.02 mm
- Emergency stop switch
- Quick, easy and tool-free adjustment of the tailstock using a clamping lever
- Quadruple steel holder
- Main spindle bearing of tolerance class P5
- Hardened spindle nose
- Set of interchangeable gears for thread cutting included as standard
- Extensive range of accessories
- Retains its value
TU 2304 V- Powerful motor with largely constant torque curve
- Speed change easily adjustable via potentiometer
- Digital speed display
- EMC filter class C1
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3384445
- The electronic measuring components of the measuring strips are protected and sealed in the housing
- Allows accurate and reliable measuring results even if the measuring system is installed in Öl or cooling liquids
- Tolerant against vibrations and magnetic interference
- Without mounting
Note: Adjustments may have to be made to the machine for mounting the measuring bars
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3462160
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose ≤ 0.015 mm
- Spindle holder Camlock DIN ISO 702-2 No. 8
- Lead screw cover
- Precisely machined slide
- All guides can be adjusted using gibs
- Right/left rotation on bed slide switchable via switching spindle
- Two-channel safety electronics
- Central lubrication in the bed slide
- Upper slide adjustment range ± 90
- Main spindle runs in oil bath
- Shafts and wheels running in oil bath
- Gear wheels smooth-running, hardened, ground and mounted with 2 adjustable precision tapered roller bearings
- Switch with life cycle calculation, tested in accordance with EN ISO 13849
- Handwheels with adjustable fine scaling 0.04 / 0.02 mm
- Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes
- Gear wheels and shafts hardened and ground, running in an oil bath in precision bearings
- Clearly arranged selector lever for switching the feed speeds
- Closed design of the high-speed feed gearbox
- Emergency stop impact switch, motor protection switch, lockable main switch
- Emergency stop device with foot actuation
- Tailstock for taper turning ± 10 mm adjustable
- Tailstock quill and handwheel with adjustable fine scaling 0.025 mm. Quick, easy and tool-free adjustment by means of clamping lever
- Energy chain for gentle cable and hose guidance
- Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron
- Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
- Adjustable scale of the thread gauge
