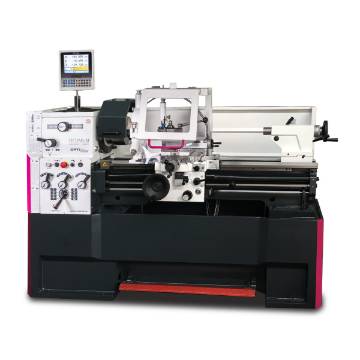

51-3462060
- Hardened and ground Z-axis guideway
- Spindle mount Camlock DIN ISO 702-2 No. 6
- Precisely crafted sled
- Handwheels with adjustable fine scale 0.04 / 0.02 mm
- All guides can be adjusted by wedge strips
- Adjustment range upper slide ± 90 °
- Guaranteed concentricity of the spindle nose better than 0.015 mm
- Main spindle running in oil bath
- Gear wheels smooth, hardened and ground with 2 adjustable precision tapered roller bearings
- Handwheels decoupled and tested according to EN 23125
- Two-channel right-left switch tested to EN 23125
- Switch with life cycle calculation, tested according to EN ISO 13849
- All metric pitches in the range of 0.2 to 14 mm / rev and all inch threads in the range of 72 - 2 pitch per inch are adjustable without change of the change gears by lever in the control panel
- Right / left rotation on bed carriage via switching spindle switchable
- Central lubrication in the bed slide
- Substructure and machine bed made of casted Meehanite cast in one piece
- leading spindle
- Emergency stop device with foot control
- Safety handwheels with release function in the X and Z axis
- Tailstock for taper turning ± 10 mm adjustable
- Tailstock quill and hand wheel with adjustable fine scale 0.025 mm
- Fast, easy and tool-free adjustment by means of a clamping lever
- Strongly ribbed prism bed, induction hardened and precision ground from gray cast iron
- Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning according to DIN
- LED machine lamp in chip protection
- Siemens Sinamics Frequency Inverter / Safety Integrated
- Quick change steel holder 5-B
- Steel holder 20 x 100 type D for square chisel 18 mm
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
