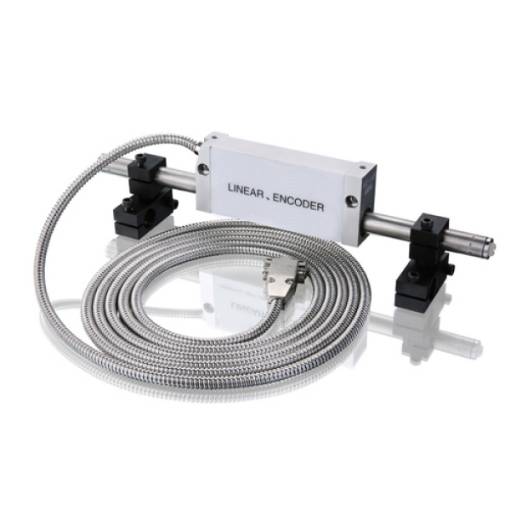

51-3384422
- The electronic measuring components of the measuring strips are protected and sealed in the housing
- Allows accurate and reliable measuring results even if the measuring system is installed in Öl or cooling liquids
- Tolerant against vibrations and magnetic interference
- Without mounting
Note: Adjustments may have to be made to the machine for mounting the measuring bars
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3403010
- Hardened and ground Z-axis Guideway
- Spindle mounting Camlock DIN ISO 702-2 No. 4
- Guaranteed concentricity of the spindle nose better than 0,015 mm
- Smooth-running feed gear with rounded gearwheels running in oil bath
- Emergency-stop pushbutton
- Hardened main spindle mounted in adjustable precision taper roller bearings
- Hand wheels on slide with adjustable fine scaling 0,04 / 0.01 mm
- Heavy ribbed prismatic bed made of grey cast iron, inductively hardened and precision ground
- Circular runout accuracy on lathe chuck better than 0,04 mm
- Quadruple steel holder
- All guides can be readjusted by V-guides
- Hardened spindle nose
- Lead spindle for thread cutting or automatic longitudinal turning
- Lead spindle and feed spindle mounted in two sintered bearings
- Automatic longitudinal / facing feeds
- Riding stock for taper turning ± 5 mm adjustable
- Riding stock sleeve and handwheel with adjustable fine scaling 0,02 mm
- Fast, easy and tool-free adjustment of the tailstock by means of clamping lever
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3384424
- The electronic measuring components of the measuring strips are protected and sealed in the housing
- Allows accurate and reliable measuring results even if the measuring system is installed in Öl or cooling liquids
- Tolerant against vibrations and magnetic interference
- Without mounting
Note: Adjustments may have to be made to the machine for mounting the measuring bars
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3462130
- Hardened and ground Z-axis guideway
- Guaranteed concentricity of the spindle nose ≤ 0.015 mm
- Shafts, wheels and main spindle run in an oil bath
- Lead screw cover
- Precisely machined slide
- All guides can be adjusted using gibs
- Mechanical longitudinal feed cut-off of the bed slide with four adjustable eccentrics
- Right/left rotation on the bed slide switchable via switching spindle
- Two-channel safety electronics
- Central lubrication in the bed slide
- Upper slide adjustment range ± 90
- Smooth-running gear wheels, hardened and ground, mounted on 2 adjustable precision tapered roller bearings
- Switch with life cycle calculation, tested in accordance with EN ISO 13849
- Large chip guard with integrated LED machine lamp
- Handwheels with adjustable fine scaling 0.04 / 0.02 mm
- Safety handwheels with disengagement function in accordance with EN23125 in the X and Z axes
- High-speed feed gearbox in closed design, gear wheels and shafts hardened and ground, running in an oil bath in precision bearings
- Scale of the threaded clock adjustable
- Tailstock for taper turning adjustable ± 10 mm
- Tailstock quill and handwheel with adjustable fine scale 0.025 mm
- Quick, easy and tool-free adjustment of the tailstock using a clamping lever
- Cable routing via energy chain
- Heavily ribbed prism bed, induction-hardened and precision-ground from gray cast iron
- Coolant device with separate coolant tank with level indicator and oil separator; easy and complete emptying and cleaning in accordance with DIN
- Emergency stop device with foot actuation
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-0338418700
Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
