- Machine bed made of heavily ribbed cast iron
- One-piece machine base made of steel
- High rigidity of the headstock housing thanks to heavily ribbed 25GG casting
- All gear wheels of the feed gear made of hardened steel
- Shafts on needle bearings, all components are lubricated in an oil bath
- Hardened and ground face spindle ensures enormous accuracy and durability
- High chip removal during roughing is no problem thanks to the high cutting capacity
- Service-friendly removable rear panel
- Energy chain for gentle cable and hose guidance
- Lockable chip guard moves with the bed slide with integrated position indicator and coolant hose, can be moved manually
- Decoupled handwheels tested in accordance with EN 23125
- Two-channel right/left switch tested in accordance with EN 23125
- No change wheels necessary
- Switch with life cycle calculation tested in accordance with EN ISO 13849
- With safety device to prevent simultaneous operation of tapping and feed mechanism
- Bed guides hardened and precision ground
- Electronically braked motor
- Electronic feed cut-off of the Z-axis
- All electronic controls can be reached centrally
- Complete illumination of the work area
- External coolant tank with level indicator and oil separator
- Complete lead and feed spindle cover
- Electric position stop with quadruple position stop
- Three-jaw lathe chuck included as standard
- Quick-change steel holder SWH 7-C
- 1 steel holder 32 x 130 type D for square chisel 25 mm
- Digital position indicator DPA 32-3
TX 5216
- Large spindle bore Ø 80 mm

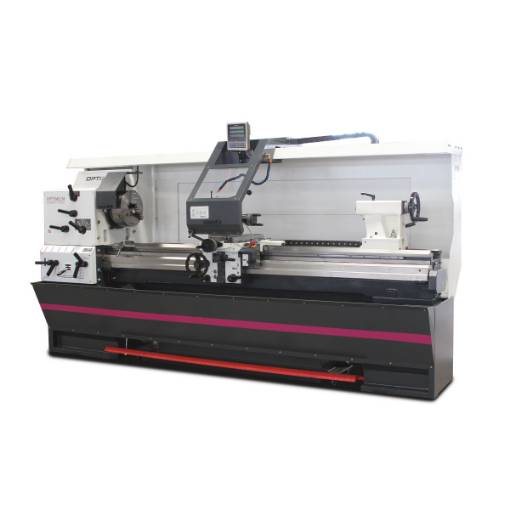

TX 6222:
- Large spindle bore Ø 105 mm
