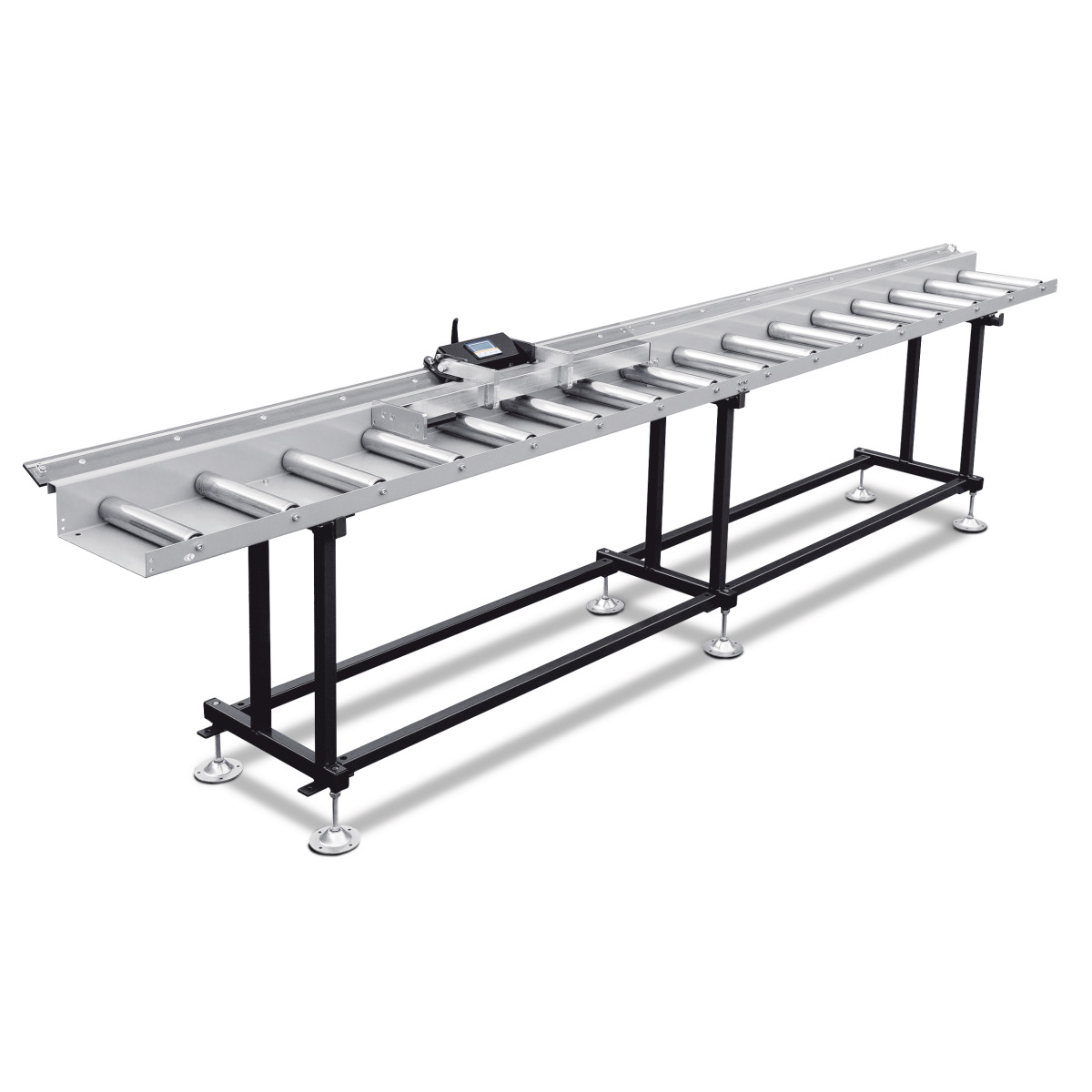

Roller and gauge system MRB Standard EKF 300 mm / 5 m

• Device for pneumatic folding away of the material arm to the rear
• Pneumatic cylinder handles this task simply and conveniently from the central operator console via a rotary switch

• Cover plates for mounting between the carrying rollers
• Galvanized
• Removable if necessary
• Price per meter of sheet metal

• Play only available in combination with spring-loaded stop arm SZ 05
• Ideal for miter cutting
• No tilting of the workpiece
• Pneumatic arm retraction (release) from the material stop
• Free stroke 10 mm

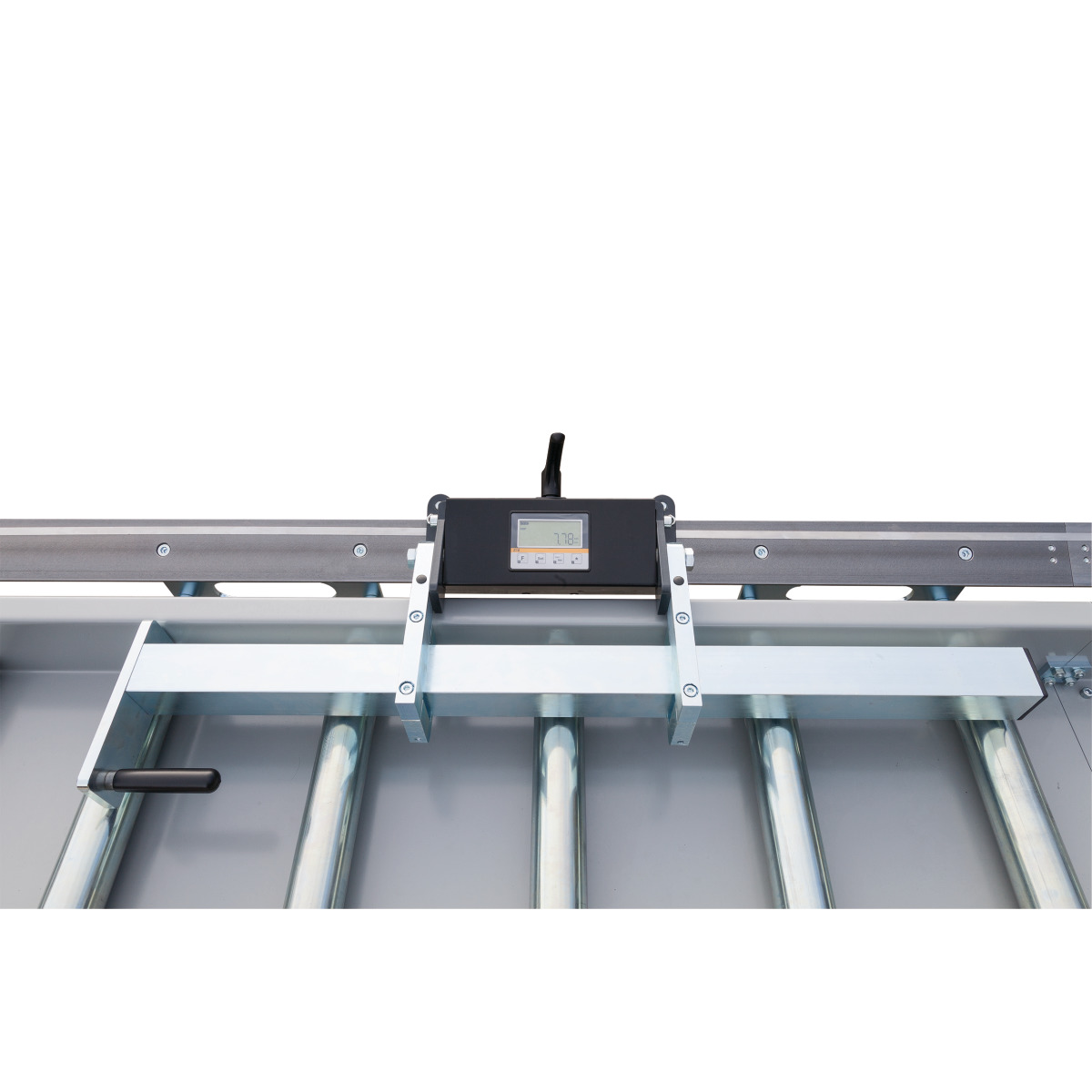

• For comfortable reading of the set values ​​via 1/10 mm LED display
• Receives the input signals via a magnetized pole ring and a sensor head mounted directly on the drive shaft
• Measuring accuracy is ± 0.2 mm per meter
• Easy to read

• With sprung material stop arm
• Adjustable to 0 point
• Manually fold away to the rear
• With an eccentric lever for
• Exemption equipped

Makita XGT® akukettsaag UC011G on parim valik, kui vajate võimsat kettsaagi.

Akukettsae hea tasakaal muudab kasutamise väga mugavaks.

Akukettsaag on varustatud nii mehaanilise kui ka elektrilise ketipiduriga. Peatoitelüliti automaatne väljalülitusfunktsioon säästab akut ja väldib tahtmatut käivitumist.

WetGuard/IPX4: tolmu- ja niiskusekaitse.

Akukettsae kaal koos 5,0® Ah XGT akuga on 6,6 kg.

Ilma aku ja laadijata mudel.

• Stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel
• All roller conveyors of the MRB standard series also available with plastic rollers
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 400 mm
• Precision flat steel guide attached to the rear of the roller conveyor
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable
• Stopper with reading magnifying glass facilitates reading on the mm scale
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point)
• Quality Made in Germany

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory
• Also with 500 mm web width
