52-2049053
When producing and conditioning compressed air, condensate inevitably accumulates, oily and frequently polluted with dirt particles. Since condensate accumulates irregularly depending on the year and time of day or load of the compressor, the BEKOMAT® with its capacitive sensor often pays for itself over time-controlled drain valves within half a year.
Features and Benefits:
- Usable and resistant to oily and oil-free, aggressive condensates
- Easy connection to filter or boiler by adapting the inlet nozzle with horizontal or vertical condensate inlet
- With discharge with BEKOMAT® improved function with oil / water separators
- BEKOMAT® 32 with alarm function and switchable fault message
function Description
- Condensate collects in the collection container of the arrester.
- A capacitive sensor detects the level of the condensate. At maximum level, a diaphragm opens, through which the condensate is discharged through the system pressure.
- The membrane is closed before compressed air can escape
The advantages at a glance
- No unnecessary compressed air losses
- Derivation according to the amount of seizure
- Sensor detects every type of condensate
- Insensitive to dirt
- simple electrical installation (230 V)
- Low maintenance
Including service unit
- Economical: Complete replacement of all wearing parts and pressure-bearing parts with just one handle.
- no electrical installation required during maintenance
- no assembly of seals and individual parts
- Only one spare part, factory pressure and function tested
ManufacturerBEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de
52-2053334
- Compressed air filters are used for highly efficient removal of solid particles, water, oil, aerosols, hydrocarbons, odors and vapors from compressed air systems.
- To achieve the required quality of compressed air, filters that gradually remove all types of solid and liquid contaminants from the compressed air must be installed in the compressed air line.
- Your advantages through better quality compressed air:
- Safe filtration of both liquids such as water and aerosols as well as particles, dust and gases
- Better working and production conditions
- Optimum protection of connected tools and machines
- Improved product quality through reduction of rejects
- Protection of the compressed air system against contamination
- Increase of productivity by reduction of instant maintenance
- for the separation of solid contaminants up to 0.1μm
- Residual oil aerosol content up to 0.1 mg / m³ at 20 ° C and 1 bar
- Operating temperature 1.5 to 65 ° C
- absolute compressed air quality according to ISO 8573-1
- for safe separation of condensate and particles
- complete with filter element and float valve
ManufacturerAircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
52-2150432

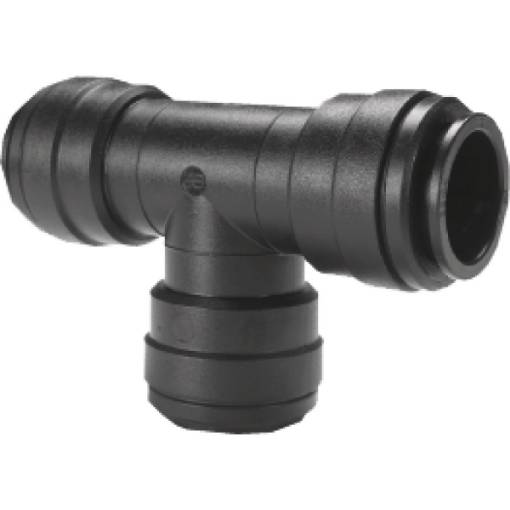

- Simple and quick installation
- Ideal for compressed air and liquids
- Can be assembled without tools
- Fast, multiple disconnections possible
- Very good flow properties
ManufacturerReliance Worldwide Distribution (Europe) Limited
Ludwig-Erhard-Allee 30, 33719 Bielefeld, Germany
www.johnguest.com
52-2501952
Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at
52-2049049
When producing and conditioning compressed air, condensate inevitably accumulates, oily and frequently polluted with dirt particles. Since condensate accumulates irregularly depending on the year and time of day or load of the compressor, the BEKOMAT® with its capacitive sensor often pays for itself over time-controlled drain valves within half a year.
Features and Benefits:
- Usable and resistant to oily and oil-free, aggressive condensates
- Easy connection to filter or boiler by adapting the inlet nozzle with horizontal or vertical condensate inlet
- With discharge with BEKOMAT® improved function with oil / water separators
- BEKOMAT® 32 with alarm function and switchable fault message
function Description
- Condensate collects in the collection container of the arrester.
- A capacitive sensor detects the level of the condensate. At maximum level, a diaphragm opens, through which the condensate is discharged through the system pressure.
- The membrane is closed before compressed air can escape
The advantages at a glance
- No unnecessary compressed air losses
- Derivation according to the amount of seizure
- Sensor detects every type of condensate
- Insensitive to dirt
- simple electrical installation (230 V)
- Low maintenance
Including service unit
- Economical: Complete replacement of all wearing parts and pressure-bearing parts with just one handle.
- no electrical installation required during maintenance
- no assembly of seals and individual parts
- Only one spare part, factory pressure and function tested
ManufacturerBEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de
