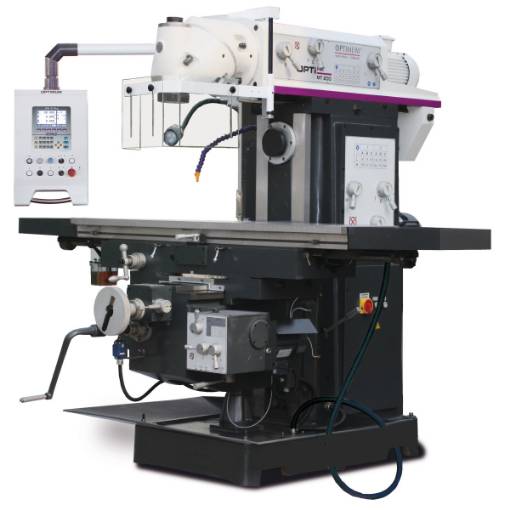

Universal milling machine OPTImill MT 200

SKU: 51-3336120

Valmistajan osanumero: 3336120

GTIN: 4030635018879

Versatile range of applications
Robust machine design
Heavy, solid design made of high-quality Meehanite cast iron
Smooth running due to ground gear wheels running in an oil bath
All guides are hardened and can be adjusted using wedge strips
Stable flat bed guide in the Y and Z axes
Central lubrication
Large decoupled handwheels with scale
LED machine lamp
Coolant device
Simple operation of the switching elements
Table feed X- and Y-axis
Z-axis with electric table height adjustment
Solid and generously dimensioned cross table, precisely surface-finished with T-slots
Vertical and horizontal milling position
Milling head with two rotary axes, can be swiveled and rotated at any spatial angle
Counter holder for horizontal milling always within reach thanks to attachment at the rear
Height-adjustable protective screen with microswitch to prevent flying chips and parts for maximum user protection
Feed motor with fixed steps

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

Vanha hinta: 37090,17€

Hinta: 33457,63€

Kpl:

i h

Saatavuus: Varastossa

Laagri

Tilattavissa. Arvioitu toimitusaika 7 päivää.

Mustamäe

Tilattavissa. Arvioitu toimitusaika 7 päivää.

Kuukausierä suunnilleen

Kausi

Ennakkomaksu

Kuukausittain

Tekniset tiedot
Ota yhteyttä

Package unit

Paino

2920 kg

Tuotteen tiedot

Nettopaino

2700 kg

Bruttopaino

2920 kg
