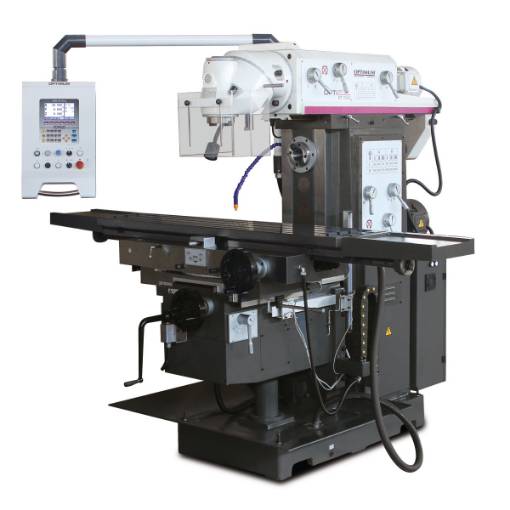

51-3336120
- Versatile range of applications
- Robust machine design
- Heavy, solid design made of high-quality Meehanite cast iron
- Smooth running due to ground gear wheels running in an oil bath
- All guides are hardened and can be adjusted using wedge strips
- Stable flat bed guide in the Y and Z axes
- Central lubrication
- Large decoupled handwheels with scale
- LED machine lamp
- Coolant device
- Simple operation of the switching elements
- Table feed X- and Y-axis
- Z-axis with electric table height adjustment
- Solid and generously dimensioned cross table, precisely surface-finished with T-slots
- Vertical and horizontal milling position
- Milling head with two rotary axes, can be swiveled and rotated at any spatial angle
- Counter holder for horizontal milling always within reach thanks to attachment at the rear
- Height-adjustable protective screen with microswitch to prevent flying chips and parts for maximum user protection
- Feed motor with fixed steps
ManufacturerOptimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
51-3384033
Details- LED display
- Higher working accuracy
- Significant reduction of production times
- Error rate is reduced
- Included sensor for recording spindle speeds
- Switchable from turning to milling machines
- Ergonomic membrane keyboard, protected against dust and splash water
Especially for lathes- Diameter or radius display
- Display of Z0 and Z1 axes with addition function, separately or together possible especially for milling machines
- Trigonomic function (sin, cos, tan)
- Pitch circle calculation with single coordinate indication
Application- for precise, fast and safe production
- Fast setup through exact positioning for mounting on lathes, milling machines, drilling machines, etc. for measuring traverse paths
- No parallax or reading errors
- Absolute repeatability
Possible functions- Calculator
- Speed display,
- Axis coupling (sum Z)
- Sub D connector sockets
- Absolute/incremental operation
- Conversion inch/metric thread
- Bolt circle calculator (chain dimension)
- Coordinates in circle (pitch circle)
- Holes in circle (pitch circle)
- Measured values radius/diameter switchable
- Zero reset data preset
- Self-diagnosis
- Reference point
- Linear error compensation
- 99 tool memories
suitable for- OPTIMUM lathes
- OPTIMUM milling machines
NoteWhen retrofitting position indicators and measuring bars for lathes and milling machines, holes and threads must be provided on the machine by the customer.
