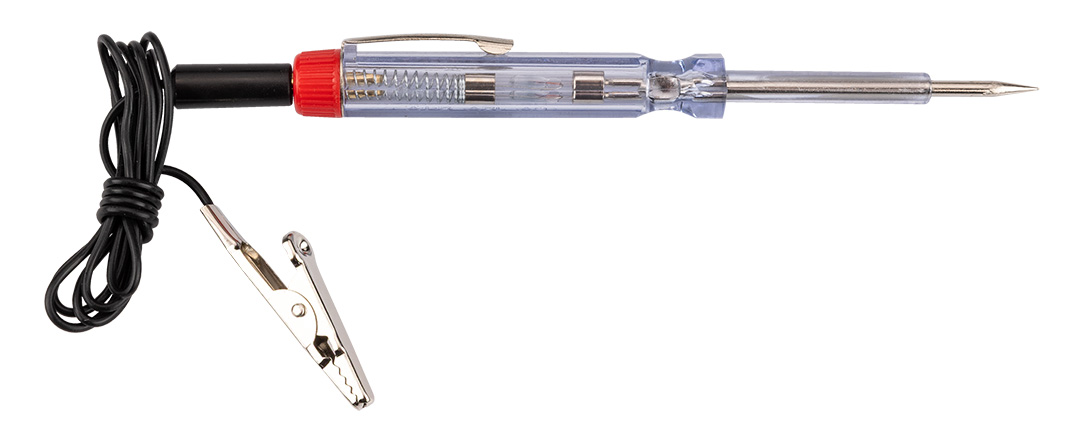

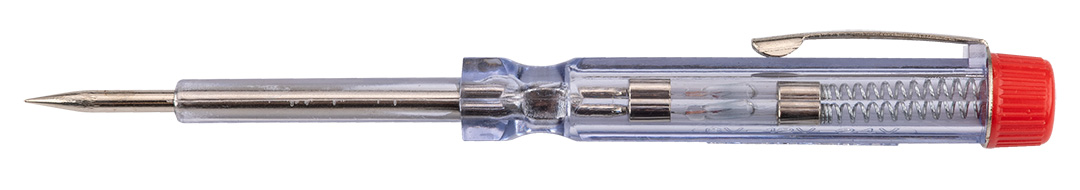

Virtakynä 6-24V, 140mm

NEO autoelektri testija on praktiline tööriist elektrisüsteemide kontrollimiseks sõidukites. Seade töötab pingevahemikus 6–24 V ning on varustatud valgusindikaatoriga, mis näitab voolu olemasolu.

Sobib kasutamiseks:

• mootorratastes,
• sõiduautodes,
• veoautodes.

Ideaalne lisa igale autojuhi tööriistakomplektile ning kasulik vahend igas töökojas. Kerge ja kompaktne disain võimaldab mugavat kasutamist ja hoiustamist.

Specifications:

• Model: TOPEX 39D081
• Type: Automotive voltage tester (pen-type)
• Voltage Range: 6–24 V DC
• Length: 115 mm
• Cable: Includes a wire with a plug and alligator clip for easy connection
• Material: Brass housing with reinforced cable insulation
• Weight: ~46 g
• Packaging Dimensions: 190 × 65 × 20 mm
• Application: Suitable for cars, trucks, motorcycles
• Voltage Indication: Glow lamp
• Measurement Type: Two-pole test

The Wiha 45219 Clamp Meter is a multifunctional measuring tool designed for safe and efficient electrical diagnostics, especially in environments where circuits cannot be interrupted. It allows contactless current measurement using a clamp fork and supports a wide range of electrical tests.

Key Features:

• True RMS measurement for accurate readings even with distorted waveforms
• Voltage range:

           AC: 0–1000 V

           DC: 0–1500 V

• Current range:

           AC/DC: up to 400 A

• Resistance: up to 40 MΩ
• Frequency: up to 5 MHz
• Capacitance: up to 100 µF
• Continuity and diode testing with audible signal
• Integrated flashlight for low-light environments
• Large backlit LCD display with data hold function
• Remote single-hand testing for ease of use
• LPF (Low Pass Filter) for interference-free readings

Safety & Standards:

• Measurement category: CAT IV up to 1000 V
• Protection class: IP40
• Complies with: IEC/EN 61010-1
• Power supply: 2 × AAA batteries (included)
• Dimensions: approx. 280 × 110 × 50 mm
• Weight: 471 g

Product Description:

The Wiha Continuity Tester is designed for quick and reliable testing of:

• Electrical connections
• Components
• Equipment

It features both audible signal and LED display for clear feedback during continuity checks. The device also includes an integrated flashlight for working in low-light conditions.

Technical Specifications:

• Voltage rating: Up to 400 V AC/DC (for 30 seconds)
• Measurement category: CAT II
• Resistance ranges:

           Range 1: 0–500 kΩ (test current < 5 µA)

           Range 2: 0–10 Ω (test current < 20 mA)

• Power supply: 2 × AAA batteries (included)
• Operating temperature: 0–40 °C
• Protection class: IP40
• Auto power-off: After 30 seconds of inactivity
• Dimensions: Approx. 192 × 110 × 30 mm
• Standards: IEC/EN 61010-1, CE

Key Features:

• LED and sound indication for continuity
• Flashlight function for better visibility
• Automatic switch-on
• Compact and lightweight design
• Safe operation up to CAT II 400V

Specifications:

• Model: NEO 94-002
• Measurement Functions:

            AC Voltage: up to 600 V

            DC Voltage: up to 600 V

            AC Current

            Resistance

            Temperature

            Diode testing

            Continuity testing

• Safety Category: CAT II 600 V (compliant with IEC-61010)
• Display: LCD, 3½ digits (max 1999), backlit
• Features:

           Automatic range selection

           Data hold

           Overload indication (“OL” on display)

           Auto power-off

           Polarity indication

           Last measurement memory

• Build:

          High-quality plastic body

          Compact and ergonomic design

          Comes with a nylon protective case

• Power Supply: 2 × AAA batteries
• Dimensions: approx. 25 × 12.5 × 5 cm
• Weight: ~493 g
