• For sanding metals, non-ferrous metals, plastics, wood, Plexiglas, etc.
• Sturdy steel housing
• Fence enables quick and easy sanding of workpieces

• With this combination sander, you can effortlessly sand various materials such as metals, non-ferrous metals, plastics, wood, Plexiglas, etc.
• Sturdy steel housing
• Fence enables quick and easy sanding of workpieces
• One sanding disc and multi-purpose brush included in the scope of delivery

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• With high-quality bi-metal band saw blade as standard
• Adjustable material stop for standard work
• Push button on the lever arm for the saw blade run switches the saw blade run on and off
• Base plate with non-slip feet
• Low-vibration and low-wear thanks to special gearbox with two hardened steel gears
• Vario drive motor with low speed and carbon brushes for up to 10 times longer service life
• Saw arm can be tilted from 0° to +60° to enable angled saw cuts

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• For precision surface grinding
• Maximum stiffness and stability thanks to tension-free re-heated and hardened cast iron construction
• High-quality spindle with precision cone roller bearings (circular accuracy 2 microns)
• Electromagnetic clamping plate for fixing the workpiece including automatic demagnetization function
• Automatic central lubrication for all slides and spindles
• Hand scraped and Turcite-B-coated V-flat guides guarantee extremely uniform, low-friction movement and highest precision
• Halogen working light dustproof, completely contact-proof and protected against jet water according to IP65
• Second grinding wheel flange included in delivery

Automatic feed control AD 5
The fsM series models are equipped with automatic feed control (AD 5). Different grinding cycles are available: surface loops with delivery at the starting point, groove loops with delivery at the starting point, groove loops with delivery at the start and end points. The delivery of the grinding wheel can be individually designed depending on the workpiece. The total grinding size is divided into coarse and fine delivery, the delivery steps can be freely entered, depending on the application, with a minimum resolution of up to 0.001mm. The possibility to program dead runs after a certain number of delivery steps as well as passages for firing after reaching the grinding measure provides the best grinding results.
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Roller and guideway system on which lighter wood, metal or plastic profiles can be precisely sawed, drilled or milled
• Substructure made of solid 3 mm steel profiles, painted and with adjustable feet
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• With length stop, magnetic tape measuring system with digital display, measuring accuracy +/- 0.2 mm per meter
• Stop car is 4-roller bearings, thus manually easily displaced
• Adjustable stop arm and can be folded away to the rear
• The maximum measuring length is the length of the web minus the stop length of 250 mm
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

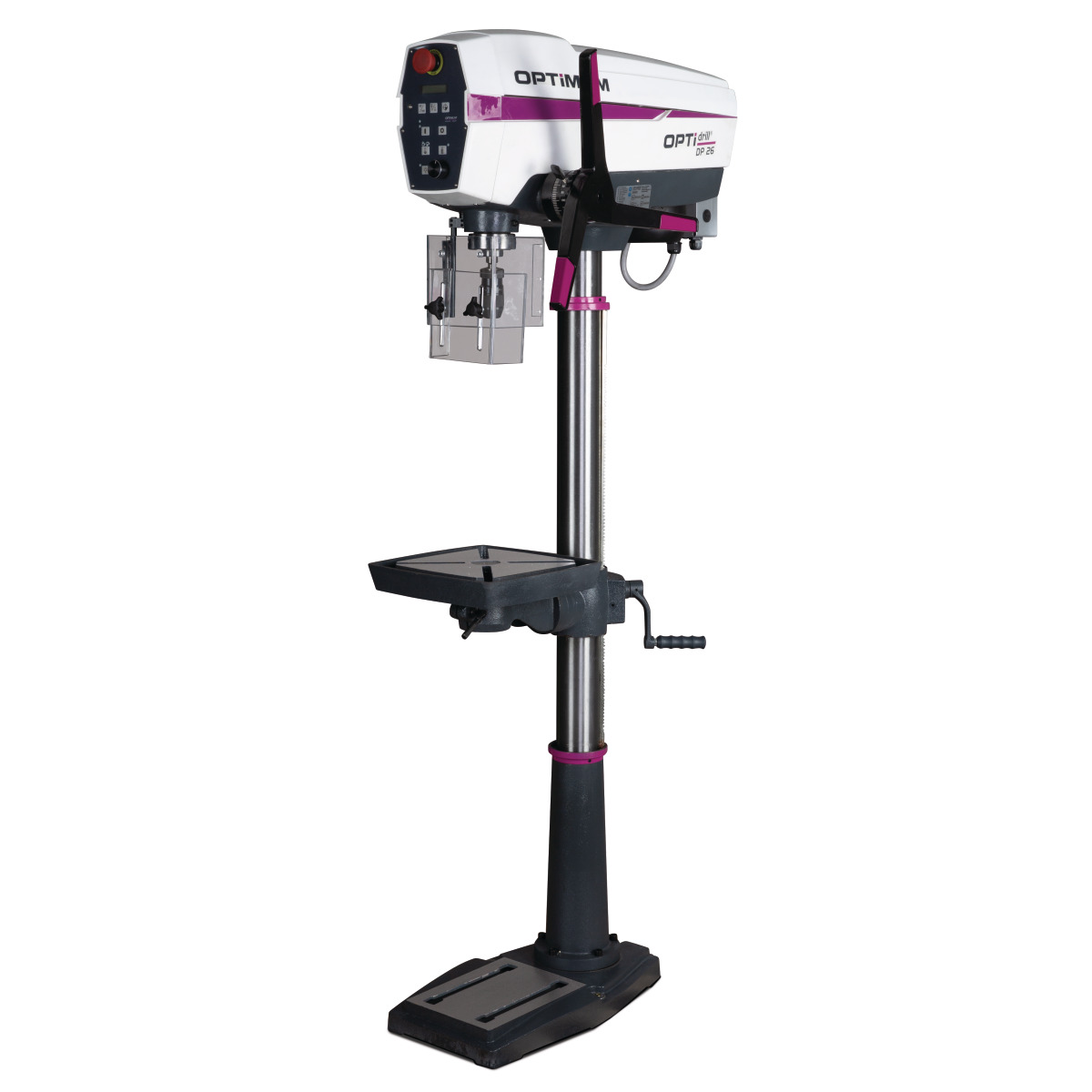

• Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
• Drill spindle with precision ball bearing
• High-quality quick-action drill chuck
• Work table adjustable from +45° to -45°

• Guaranteed concentricity ≤ 0.02 mm measured in the drill spindle
• Drill spindle with precision ball bearing
• High-quality quick-action drill chuck
• Height-adjustable chuck protection cover
• Work table adjustable from +45° to -45°
• With high practical performance

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Suitable for wet grinding machines
• Filter area visible through transparent plastic windows

• Suitable for wet grinding machines
• Filter area visible through transparent plastic windows

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

For stable mounting of roller conveyors of the series MRB LC to Metallkraft circular saws. The adapters are specially designed for mounting to the right or left of the saws. Please indicate the machine type of your saw when ordering.
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• For sawing hollow profiles and solid materials made of steel, stainless steel, tool steel, non-ferrous metals and plastic
• Robust band guides with adjustable carbide plates for a precise cut
• Hydraulically controlled system for both clamping vices and the up and down movement of the saw arm
• With chip clearing brush for optimum cleaning and maintenance of the saw band
• Saw arm inclined by 25°, This extends the service life of the saw blade
• BRP - saw blade monitoring
• The jaws of the two clamping vices are equipped with long-stroke hydraulic cylinders as standard, This eliminates the need for pre-setting to the material cross-section to be sawn
• With pivoting cutting gap for mitre adjustment - does not cut into the saw tableMaterial is fed
• via hydraulic cylindersBandsaw blade guides
• with integrated cooling
• systemSwivel plate
• with
• bearingsCutting probe function
• with integrated buttonWith
• digital angle displayWith
• pivoting control panel

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Bending and rolling of wires, pipes and sheets
• Ground bending rolls
• Mounted steel sidewalls (self-lubricating)
• Two removable rollers
• Separate adjustment for material thickness and rolling radius
• For use on the vise
• Stable support surface
• Wire insert grooves Ø 1 - 2 - 3 - 4 - 5 mm

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Designed for industrial use
• Extremely stable and robust design
• Saw blade drive via low-maintenance, oil-lubricated worm gear unit
• With SIEMENS Simatic control system and SIEMENS electrics
• Operation on modern and powerful Siemens HMI multi-touch panel
• Control of the material and saw feed via ball screws
• Robust three-phase motor equipped with overload protection
• Frequency converter for infinitely variable adjustment of the saw blade speed from 20 - 100 m/min as standard
• Saw blade guide with adjustable carbide plates for a precise cut
• Hydraulic band tensioning device
• Saw arm can be tilted from -45 to +60 degrees
• Fully automatic mitre adjustment on both sides
• Swiveling control panel
• Chip clearing brush for optimum cleaning and maintenance of the saw blade
• 64-bit control system
• Automatic material feed of 970 mm
• Pressure reducer Clamping vice
• Saw blade guides with integrated cooling system

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Very heavy and robust welded construction
• Dynamic drive of the bending beam by means of two frequency-controlled motors with gears
• Over cheek clamping via trapezoidal thread
• High-quality Lenze motors
• Continuous sharp bending rail
• Tools suitable for bending stainless steel
• Bending angle adjustment via touchscreen NC control system
• Sheet thickness adjustment manually at the bending beam
• Manual crowning device of the bending beam
• Operation via double foot pedal with emergency stop function
• Clean motor-driven machine without hydraulics
• SH models with segmented, high goat foot tools
• DUO models with continuous sharp-bending rail and high, segmented goat foot tools

Quality made in Germany
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Versatile range of applications, e.g. drilling, reaming, thread cutting
• Electrically braked motor
• 24V DC electrics and 2-channel safety chain in accordance with DIN EN 12717
• Heavy, solid, high-quality casting
• Wide reach thanks to horizontally adjustable machine head
• Clearly arranged control panel
• Smooth-running swivel and traversing axles
• Elaborately crafted column swivel with optimized clamping for maximum stability with minimal clamping offset
• Heavy-duty, torsion-resistant construction of the boom
• Boom height adjustment via powerful motorized drive and lifting spindle
• Gearbox of the drill head runs in an oil bath
• Boom guideways hardened and precision-ground
• Gear wheels made of chrome-nickel steel, hardened and precision-ground for quiet and smooth running
• Drill head and column can be clamped or released together or separately
• Right-left rotation
• Solid, precise drill table, large dimensions
• Hardened and ground clamping table with parallel T-slots
• Machine light
• Overload protection
• Thick-walled cast iron column ensures smooth running and stability
• LED lamp
• Coolant system with coolant tank in the machine base

RD 6 / RD 7

• Column is clamped hydraulically

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• Heavy, durable industrial design with maintenance-free motor
• Housing made of extruded aluminum
• Long service life and smooth running due to balanced rotor with quality ball bearings
• Spark protection on each grinding wheel reduces flying sparks
• Sight glasses made of shatterproof material
• Vibration damping rubber feet
• Coarse and fine grinding wheel (K36/K80) as standard

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de

• The workpiece clamping by means of foot pedal thereby both hands remain free for the material supply
• Different tool variants available E, S2, HS2 and HSG
• The powerful auxiliary cylinder facilitates bending
• Next passage between top and bottom cheek of up to 25 mm
• Self-lubricating plain bearings
• Clamping pressure of the upper beam via non-slip thumbscrews easily adjustable
• Adjustment of material thickness by means of knurled screw
• Adjustable stop for bending angle

Equipment details:

FSBM 1270-20 E

• With segmented sharp-bending tools, continuous bending strip and continuous bed support

FSBM 1020-20 S2

• With segmented sharpening tools, segmented bending strip and continuous bed support

FSBM 1020-20 HSG

• With segmented gooseneck tools, segmented bending bar and segmented bed support
• Segments have a hardness of HRC24-26

Note on technical data:

• Sheet thickness max.: Performance data based on material with tensile strength 400 N/mm²
• Bending capacity VA: factor 0.75
• Bending capacity aluminum: factor 1.2
• Hardened top tools are required to bend VA

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Foot operated
• Heavy, compact welded construction
• Powerful drive by Lenzemotors
• With continuous sharp bending bar
• In series with manual adjustment of the bending angle
• Especially low-maintenance
• The workpiece is clamped by a motorized mechanism
• S-models with segmented upper tools
• SH-models with high, segmented casting foot tools

Available on request

• Other models
• Standard tools hardened
• Hardened sharp bending bar and bending bar
• Segmented tools and hardened bending bar
• Segmented casting foot tools and bending bar hardened

Quality Made in Europe

Note on technical data
For bending stainless steel, optional hardening of the tools is required
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Sturdy and robust welded construction
• Due to the foot control both hands remain free for the material supply
• High quality cutting blades
• Angle adjustable side stop with millimeter scale
• Easy adjustment of the knife bar
• Highest possible safety through hold-down, which protects the fingers at the same time.
• Up to 500 mm adjustable backgauge

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Material roller conveyor with stable U-shaped closed construction made of 3 mm sheet steel profile
• Support rollers made of galvanized steel (optionally also available with plastic rollers)
• Supported rollers ball-bearing
• The maximum measuring length is the length of the track minus the stop length 450 mm
• Length measuring device with handwheel adjustment
• Roller and measuring track with digital LED dimension display in mm, electrical connection 230 V, 50 Hz with power supply unit
• Measuring stop adjustable by handwheel from the workplace, with pneumatic brake for measuring fixation
• Sturdy material stop trolley, 12 ball bearings, movable on large dimensioned guide profile. The stop arm is adjustable and hinged.
• For roller conveyors with a length of more than 5 m, a cable drag chain is used
• Mounting side as desired right or left

Equipment details

position indicator

• 5-digit LED measurement display for constant, millimeter-accurate control of the current position of the stop car
• Position indicator with hollow shaft encoder mounted directly on the drive shaft
• Measuring accuracy / m: ± 0.5 mm

stop arm

• 900 mm long stop arm
• Stop plate adjustable to zero point and manually hinged backwards
• Multiple ball bearings, thus free of play
• Quality Made in Germany

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Handy and flexible pipe grinder for locksmiths, metalworking and railing construction
• Designed for grinding and polishing pipe constructions
• Especially suitable for sanding, satin finishing and mirror polishing of already mounted railings
• Ideal for working in confined spaces, as the handle can be turned through 180 °
• Heavy duty motor with soft start and overload protection
• With constant electronics for consistent belt speed even under load
• With stepless adjustment of the belt speed for an optimal adaptation to the different applications
• Speed ​​can be adjusted comfortably via the thumb wheel on the handle
• Simple, tool-free grinding belt change
• 360 ° circumferential grinding takes only two working steps
• High-quality 270 ° light metal arm with 2 pulleys
• Handle can be screwed in at three different positions for optimal handling

Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@stuermer-maschinen.de

• Industrial motor
• Quiet running spindle thanks to new spindle design
• Machine operation with safety electrics in 24 V DC voltage
• Guaranteed concentricity ≤ 0.02 mm measured in the drilling spindle
• Right/left rotation
• Precision spindle bore
• Control panel with user-friendly, dirt and water resistant membrane keypad
• Speed display
• Separate emergency stop impact switch
• Thread cutting function
• Precisely machined, stable drilling table with diagonally running T-slots with circumferential cooling water channel, laterally tiltable by ±45° and 360° rotatable
• Digital depth gauge
• LED machine light integrated in drill head
• V-belt cover with safety switch
• Thick-walled steel column for high force absorption and stability
• Solid, large-dimensioned base plate with T-slots
• Heavy-duty design of the entire machine

Manufacturer
Optimum Maschinen Germany GmbH
Dr.-Robert-Pfleger-Str. 26, 96103 Hallstadt, Germany
info@optimum-maschinen.de
