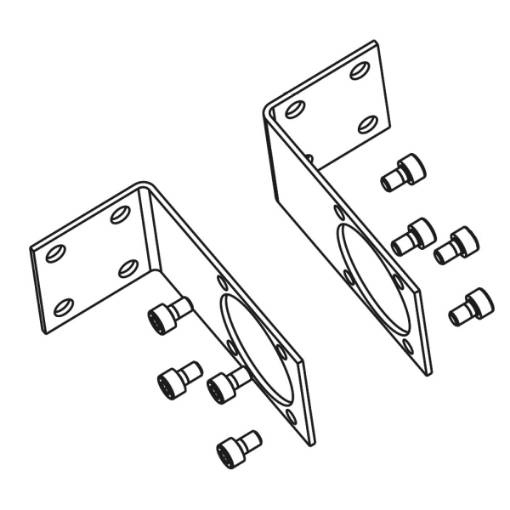

Wall mounting kit for S040, S050, S055

Higher efficiency - lower costs
The innovative and highly efficient ASDB series uses a patented 3-circuit heat exchanger system. In combination with the glycol cycle, a significant energy saving is achieved. The glycol mass acts like a cold-storing medium. The ASD dryers are particularly suitable for partial load operation and for irregular compressed air requirements. By using the ASD dryers, you can noticeably save operating costs.
Operation and advantages of the glycol cycle
The water-glycol mixture is cooled when not all the cooling energy is needed to cool the compressed air. When the refrigeration compressor shuts off during partial load operation, the compressed air is cooled down by the cold stored in the glycol mass. Only when the mass is no longer cool enough, the refrigerant compressor turns on again. Therefore, the ASD dryers show their potential for savings, especially during partial load operation and irregular compressed air requirements. When the air compressor starts again after a pause and releases compressed air into the piping system, the ASD dryers immediately cool this compressed air to dew point because the glycol mass immediately provides the temperature required. Many other systems, in which the refrigeration compressor can cool down to operating temperature only after a start-up period, allow humid air to flow into the supply network during this time, with all the adverse effects.
The advantages at a glance

• Improved energy efficiency thanks to patented 3-circuit heat exchanger system
• Energy saving and longer service life by switching off the refrigeration compressor in partial load operation
• Optimal dew point control with additional temperature sensor for the glycol control
• Condensate drainage without pressure loss through integrated electronic, level-regulated condensate separator
• Optimum performance under all load and ambient conditions thanks to variable fan speed control
• By using quality components longevity and reduction of service costs
• Operating cost reduction with active environmental protection

The operation of the patented 3-circuit heat exchanger system

1. Warm saturated with compressed air compressed air flows into the heat exchanger.
2. Pre-cooling of the inlet air is caused by the countercurrent cold outlet air in the heat exchanger.
3. Input air is brought to dew point temperature by the refrigerant circuit, causing condensate.
4. Condensate is collected and removed in the integrated electronic, level-regulated condensate separator.
5. Glycol circulation stores excess energy and cools the intake air at partial load.
6. The refrigeration compressor switches off at partial load, which can double its service life.
   (Explanation in product description series ASD under " Function and advantages of the glycol cycle " )

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• Flow-optimized air supply for up to 75% less resistance
• Assembly of the filter elements without cross-sectional narrowing and disturbing tie rods, thus reduced flow resistance and easy element change even in confined spaces
• Cavity volume of the borosilicate filter material of 96% ensures the lowest pressure loss
• CLEARPOINT® filter housing made of water-resistant aluminum and additionally anodised on the inside, therefore increased operational safety and reduced flow resistance due to permanently smooth inner surfaces
• 100% control when opening the filter housing by a secure locking mechanism, when opened under pressure a warning signal sounds
• With thermally highly resistant (up to 120 ° C), mechanically highly resistant, chemically resistant and silicone-free needle felt drainage layer (in contrast to foam material of other filter makes)
• Stable construction of the filter element - it is not possible to inflate or rupture the drainage layer, thereby ensuring the constant use of the entire filter surface

• for the separation of oil vapors, odors and flavorings via adsorption and in the second stage of solid particles
• Residual content of oil vapor up to 0.003 mg / m³ at 20 ° C and 1 bar
• absolute compressed air quality according to ISO 8573-1
• For compressed air of the highest quality, eg, for breathing air, in analytical technology or semi-luxury bottling
• Pure compressed air in connection with upstream ultrafine filter
• With filter element and manual drain

Manufacturer
BEKO Technologies GmbH
Im Taubental 7, 41468 Neuss, Germany
www.beko.de

• For connecting compressors to compressed air tanks or pipe systems with detachable double nipple
• One connection each with internal and external thread

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

Manufacturer
Aircraft Kompressorenbau und Maschinenhandel GmbH
Gewerbestraße Ost 6, 4921 Hohenzell, Austria
info@aircraft.at

• For continuous air demand and discontinuation operation
• Electronic control for reliability and efficiency
• Optimized oil separation system
• High-quality equipment
• Smooth and quiet

• Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
• Can also be used in intermittent operation due to oil temperature control

Electronic temperature control for optimum oil temperature

• Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
• Temperature control of the oil prevents condensation and minimizes wear
• Better energy efficiency compared to a piston compressor with the same delivery capacity
• Additional oil heat exchanger for cooling

K-Tronic electronic control system for reliability and efficiency

• Adjustment of the cut-in and cut-out pressure
• Direction of rotation control
• Monitoring and control of the oil temperature
• Maintenance interval display

Optimized oil separation system

• Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
• Oil separator cartridge and oil filter cartridge easily accessible for maintenance

Integrated design of the compressor unit

• Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
• Maintenance-free direct drive
• Freewheel valve for load-free operation after reaching the set pressure

Lightweight, compact and quiet

• Can be used in mobile applications or where space is limited
• Highly efficient and low-noise fan
• Smooth-running compressor with low noise level

High-quality equipment

• Hot-dip galvanized compressed air tank inside and out with 15-year guarantee against rusting through
• Compressed air tank in accordance with AD 2000
• Splash water protection to IP 54
• Flexible armored hose lines with heat protection prevent vibration fractures
• With phase inverter on the plug as standard
• Ready for connection with all fittings
• Also available with refrigeration dryer and pre-filter
