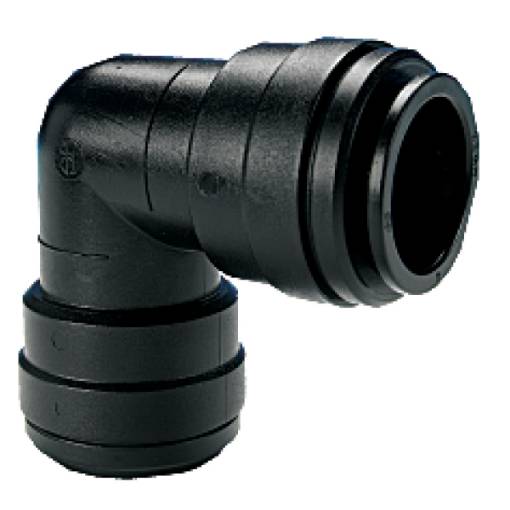

Angle connector 90° (POM) 28 mm

• Innovative LOGIN control with 4.3" touch screen for easy operation and full control of all functions.
• Energy-efficient IE4 motor
• Rotation direction control for the motor, prevents damage during start-up or after a change of stand location
• High cooling effect and low noise level due to thermostatically controlled radial fan
• Optimum operating temperature and low fluctuation of oil temperature due to thermostatically controlled radial fan, optimum cooling air flow and generously dimensioned heat exchangers
• Aftercooler reduces the effort for drying and filtration of the generated compressed air
• Star-delta switching as standard
• Easy to service: simple removal and installation of all components requiring maintenance

Special

• Drying by partial vapor pressure compensation of water vapor by diffusion in combination with a highly selective membrane
• No change in the compressed air composition - can be used for breathing air treatment

Efficient

• Reaches the required pressure dew point with low energy consumption
• Very fast availability of dried compressed air
• Filtration and drying compact in one device

Robust

• Housing made of seawater-resistant aluminum
• Low-maintenance, currentless technology

System-compatible

• Modularly combinable with CLEARPOINT Filter program
• Can be used anywhere along the compressed air treatment chain - can also be integrated into system technology

• The ultimate membrane dryer technology with integrated nanofilter
• Filtration and drying in one housing (simple filter element change)
• Low purge air requirement (Twist 60 technology)
• Availability of dried compressed air immediately without running-in phase
• Safe drying due to the high partial vapor pressure gradient
• No change in the compressed air temperature and composition
• Proven 100,000 times
• Maintenance-free (except filter element change)
• For diverse applications, including for breathing air treatment
• Also ideal for use directly behind the compressor / aftercooler
• Optionally also for higher loads (assembly potting, 16 bar, 70°C)
• For a reliable function of the DRYPOINT M membrane dryer must meet the following requirements:
1. The incoming compressed air must not contain any liquid condensate
2. Particles larger than 1 μm must be separated before the membrane dryer
3. The oil content of the compressed air must not exceed 0.01 mg/m³.

• DRYPOINT M membrane dryers have been an alternative to existing ones for years Compressed air drying process proven.

Advantages DRYPOINT M PLUS

• Proven process of highest reliability and functional safety
• Immediate availability of dry compressed air, even when working discontinuously
• Low purge air requirement, compressed air drying can be adjusted to the application
• Compact and robust, small space requirement due to low overall height
• Compressed air inlet and outlet on one level (filter version), easy to combine with CLEARPOINT filters
• Maintenance and wear-free as there are no moving parts
• No reduction in the oxygen content, therefore also suitable for breathing air treatment
• No electrical connection, also suitable for Ex areas
• Long service life in case of use of CLEARPOINT filters
• Environmentally friendly, does not require CFCs / CFC-containing refrigerants or adsorbents
• Complete solution: filtration and dryer in a compact form, integration of drain pipe
• Filtration at the point in the treatment chain where the highest efficiency is achieved
• Easy maintenance / replacement of filter element as with a regular filter

Filter element: N (nanofilter)

• The CLEARPOINT filter element type N is used to separate solid particles down to 0.01 micron, water and oil aerosols . The element has a multi-stage structure for efficient and long-lasting filtering. In the first stage, coarse particles are retained by a pre-filter layer. In the second stage, finer particles are absorbed by a depth filter bed made of high-performance borosilicate fiber fabric. Due to the very large cavity volume of the filter medium (96%), a very high dirt holding capacity is achieved. The filter medium is specially impregnated in order to avoid cross-sectional swelling of the individual fibers.

Trap: Float trap

• The basic version includes a float drain.

Size 10 - 40

• This size is for the demand-oriented compressed air drying of medium volume flows configured. Different levels of drying of the compressed air are achieved through different purge air settings.

• For continuous air demand and discontinuation operation
• Electronic control for reliability and efficiency
• Optimized oil separation system
• High-quality equipment
• Smooth and quiet

• Just as mobile and compact as piston compressors, but with the great advantage of being able to generate compressed air continuously without any cooling pauses
• Can also be used in intermittent operation due to oil temperature control

Electronic temperature control for optimum oil temperature

• Optimum oil viscosity due to constant temperature, therefore also suitable for intermittent operation with frequent load changes
• Temperature control of the oil prevents condensation and minimizes wear
• Better energy efficiency compared to a piston compressor with the same delivery capacity
• Additional oil heat exchanger for cooling

K-Tronic electronic control system for reliability and efficiency

• Adjustment of the cut-in and cut-out pressure
• Direction of rotation control
• Monitoring and control of the oil temperature
• Maintenance interval display

Optimized oil separation system

• Effective oil pre-separation by gravity, as the oil sump is located at the lowest point
• Oil separator cartridge and oil filter cartridge easily accessible for maintenance

Integrated design of the compressor unit

• Convenience and high operational reliability thanks to integration and short connections of all key components on the compressor unit
• Maintenance-free direct drive
• Freewheel valve for load-free operation after reaching the set pressure

Lightweight, compact and quiet

• Can be used in mobile applications or where space is limited
• Highly efficient and low-noise fan
• Smooth-running compressor with low noise level

High-quality equipment

• Hot-dip galvanized compressed air tank inside and out with 15-year guarantee against rusting through
• Compressed air tank in accordance with AD 2000
• Splash water protection to IP 54
• Flexible armored hose lines with heat protection prevent vibration fractures
• With phase inverter on the plug as standard
• Ready for connection with all fittings
• Also available with refrigeration dryer and pre-filter

• Diaphragm pressure regulator with secondary ventilation
• Medium: compressed air, neutral gases
• Inlet pressure max. 12 bar
• Temperature range: - 10°C to + 50°C

• Diaphragm pressure regulator with secondary ventilation
• Medium: compressed air, neutral gases
• Inlet pressure max. 12 bar
• Suitable for temperatures from -10 to +50°C
